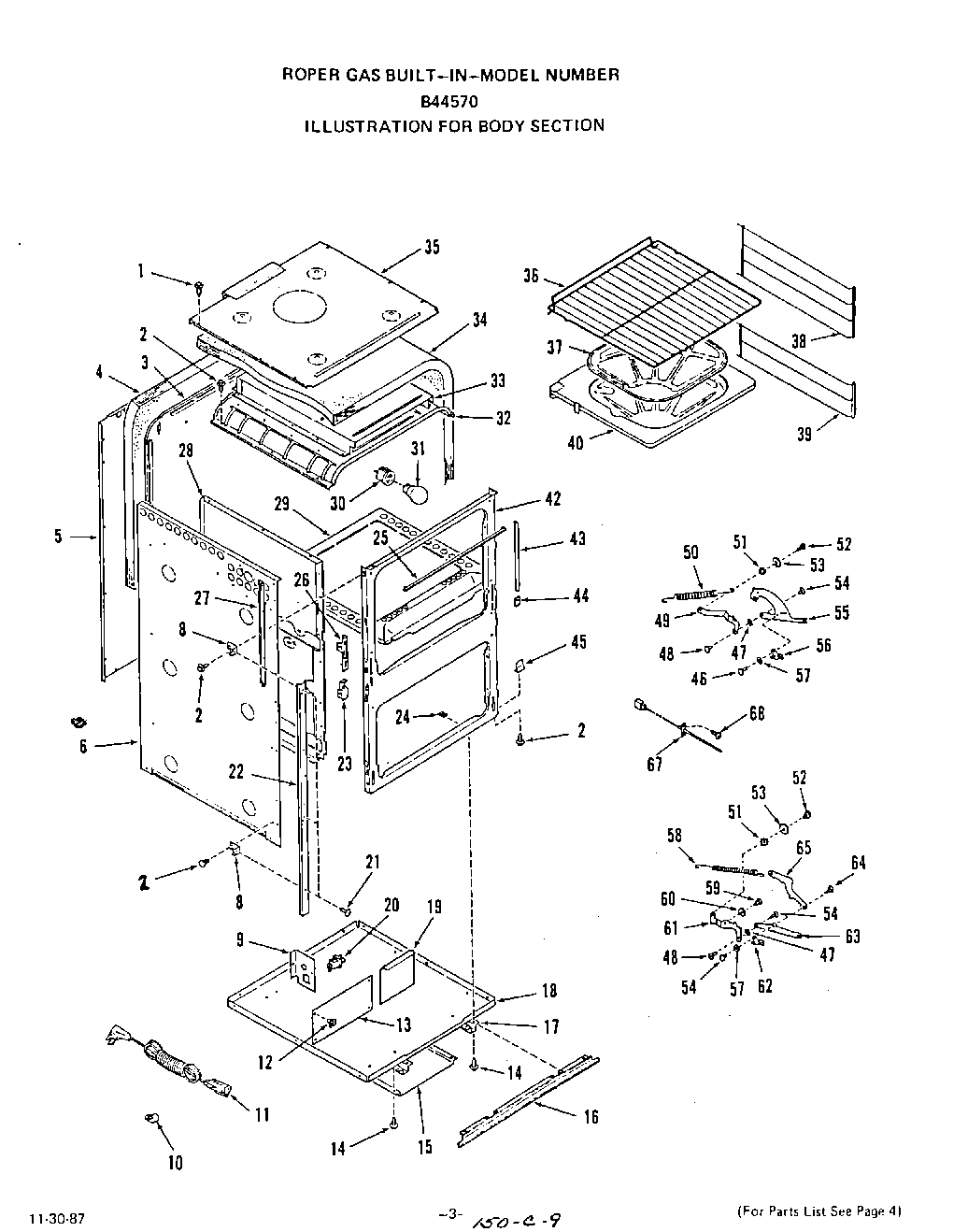

| 1 | Screw 10-16x7/16`` |
| 2 | Screw 10 - 32 x 17/32`` |
| 3 | Oven Back |
| 4 | Insulation-Oven Back |
| 5 | Wire Cover-Oven Back |
| 6 | Body Side |
| 6 | Body Side (Left) |
| 6 | Body Side (Right) |
| 8 | Spacer-Side Trim (4 Req) |
| 9 | Disconnect Plate |
| 10 | Clip |
| 11 | Service Cord |
| 12 | Clip |
| 13 | Left Cover Plate |
| 14 | WP112432 Whirlpool Nut Assembly |
| 15 | Baffle-Main Bottom |
| 16 | Lower Trim |
| 17 | Bottom Channel-Lt. or Rt. |
| 18 | Main Bottom |
| 19 | Right Cover Plate |
| 20 | Disconnect |
| 21 | Screw 6-32x1/2`` |
| 22 | Side Trim-Front Frame (Right) |
| 22 | Side Trim-Front Frame (Left) |
| 22 | Side Trim-Front Frame |
| 23 | WPL 327977 |
| 24 | Speed Nut 10 - 32 |
| 25 | WPL 338209 |
| 26 | Support-Oven Door Hinge (Right) |
| 26 | Support-Oven Door Hinge |
| 26 | Support-Oven Door Hinge (Left) |
| 27 | Channel Trim - Lt. or Rt. |
| 28 | Oven Side |
| 28 | Oven Side (Right (Model B41570)) |
| 28 | Oven Side (Left (Model B41570)) |
| 29 | Oven Bottom w/Baffle (Model B41570) |
| 30 | Holder-Oven Light Bulb |
| 31 | Oven Lamp |
| 32 | Oven Top (Model B41570) |
| 33 | Vent Box |
| 34 | Insulation-Oven Top & Sides (1 Piece) |
| 35 | Oven Cabinet Top |
| 36 | WPL 279539 |
| 37 | WPL 331851 |
| 38 | Oven Rac |
| 39 | WPL 232900 |
| 39 | WPL 232899 |
| 39 | Broiler Rack Guide |
| 40 | WPL 332306 |
| 42 | WPL 332300 |
| 43 | WPL 338210 |
| 44 | WPL 111481 |
| 44 | Hinge Arm Guide Block |
| 44 | WPL 111480 |
| 45 | WPL 323446 |
| 46 | WPL 103314 |
| 47 | Washer |
| 48 | Hinge Pivot Sleeve |
| 49 | WPL ARI20569A2 |
| 49 | WPL 324048 |
| 49 | WPL 324047 |
| 50 | WPL 105825 |
| 51 | WPL 69459 |
| 52 | Bolt 1/4-20x3/8`` |
| 53 | WPL 323451 |
| 54 | Rivet |
| 55 | WPL 230981 |
| 55 | WPL 230980 |
| 55 | WPL ARI20570A8 |
| 56 | WPL 97696 |
| 56 | WPL ARI20571A8 |
| 56 | WPL 97697 |
| 57 | Washer |
| 58 | Element, 2.0 KW EGO 7`` |
| 59 | Shoulder Rivet |
| 60 | Roller |
| 61 | Right (Up. or Lo. Oven) |
| 61 | Left (Up. or Lo. Oven) |
| 61 | WPL ARI20572A7 |
| 62 | Hinge Latch (Right) |
| 62 | Hinge Latch (Left) |
| 62 | WPL ARI20573A6 |
| 63 | Right (Up. or Lo. Oven) |
| 63 | Left (Up. or Lo. Oven) |
| 63 | WPL ARI20574A7 |
| 64 | Hinge Pivot Sleeve |
| 65 | Spring Link |
| 66 | WPL 281160 |
| 67 | Sensor |
| 68 | Screw 6Ax3/8`` |
