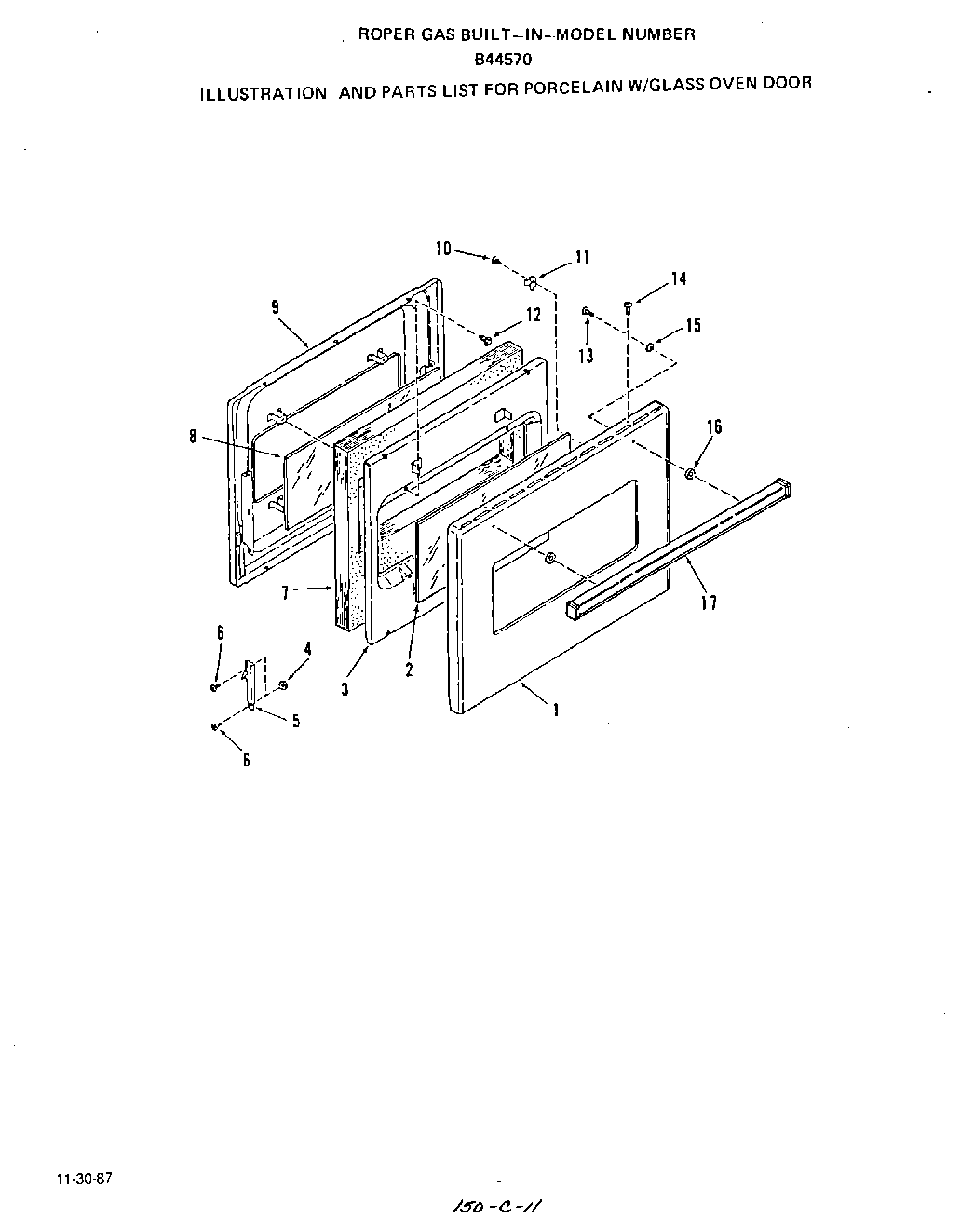

B4457B0 05 – PORCELAIN W/GLASS OVEN DOOR

Products

PositionProduct
1Front Panel-Oven Door w/Glass (Almond)
1Front Panel-Oven Door w/Glass
1Front Panel-Broiler Door w/Glass
1Front Panel-Oven Door w/Glass (Wheat)
1(Front Panel-Broiler Door w/Glass) (White)
1(Front Panel-Broiler Door w/Glass) (Almond)
1(Front Panel-Broiler Door w/Glass) (Wheat)
1Front Panel-Oven Door w/Glass (White)
2Door Glass-Outer (Oven & Broiler)
3Insulation Retainer (Oven Door w/Glass)
3Insulation Retainer (Broiler Door w/Glass)
3Insulation Retainer
4Hex Nut 10-32
5Hinge Arm Guide (Right)
5Hinge Arm Guide (Left)
5Hinge Arm Guide
6Shoulder Rivet
7Insulation – Upper or Lower Door
7Insulation
7Insulation Oven Door (Lower)
8Door Glass-Inner
8Inner Glass
9Door Lining
9Door Lining (Lower)
9Door Lining – Upper or Lower Door
10Screw 10-32×3/8“
11Retainer-Door Glass (2 Req)
12WP112432 Whirlpool Nut Assembly
13Screw 10-32×3/4“
14Screw
15Lockwasher
16Spacer
17Door Handle
