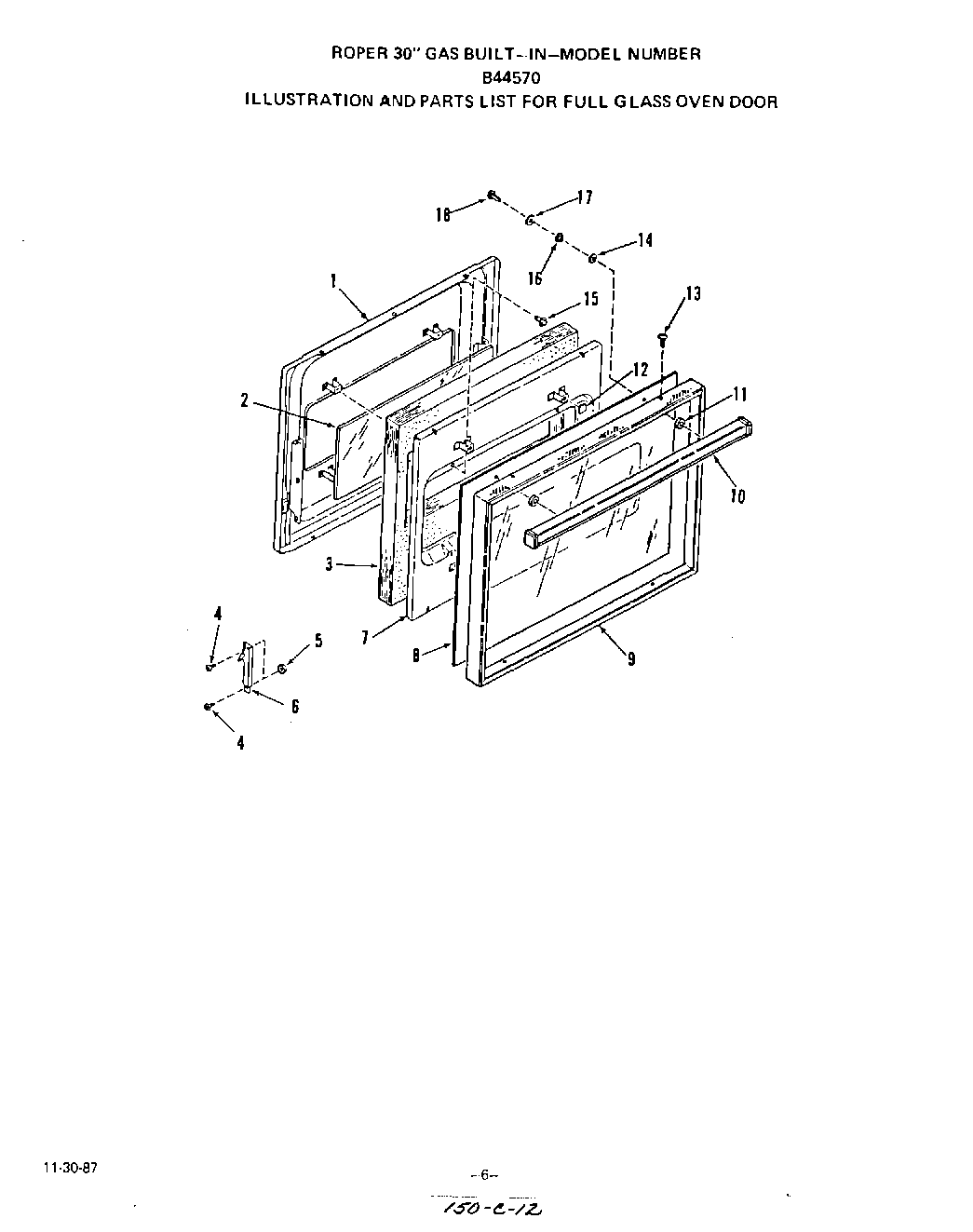

B4457B0 06 – FULL GLASS OVEN DOOR

Products

Position	Product
1	Door Lining (Lower)
1	Door Lining – Upper or Lower Door
1	Door Lining
2	Door Glass-Inner
3	Insulation Oven Door
3	Insulation – Upper or Lower Door
3	Insulation Oven Door (Lower)
4	Shoulder Rivet
5	Hex Nut 10-32
6	Hinge Arm Guide (Right)
6	Hinge Arm Guide (Left)
6	Hinge Arm Guide
7	Lower
7	Insulation Retainer
7	Insulation Retainer – Upper or Lower Door
8	Door Glass Outer
9	Door Frame (Lower)
9	Lower
9	Door Frame
9	Door Frame-Upper or Lower Door
9	Door Glass-Outer-Upper or Lower Door
10	Door Handle
11	Spacer
12	Spacer (4 Req.)
13	Screw
14	Washer
15	Screw 10 – 32×3/8“
16	Spacer-Glass
17	Washer
18	Screw 10-32×3/4“
