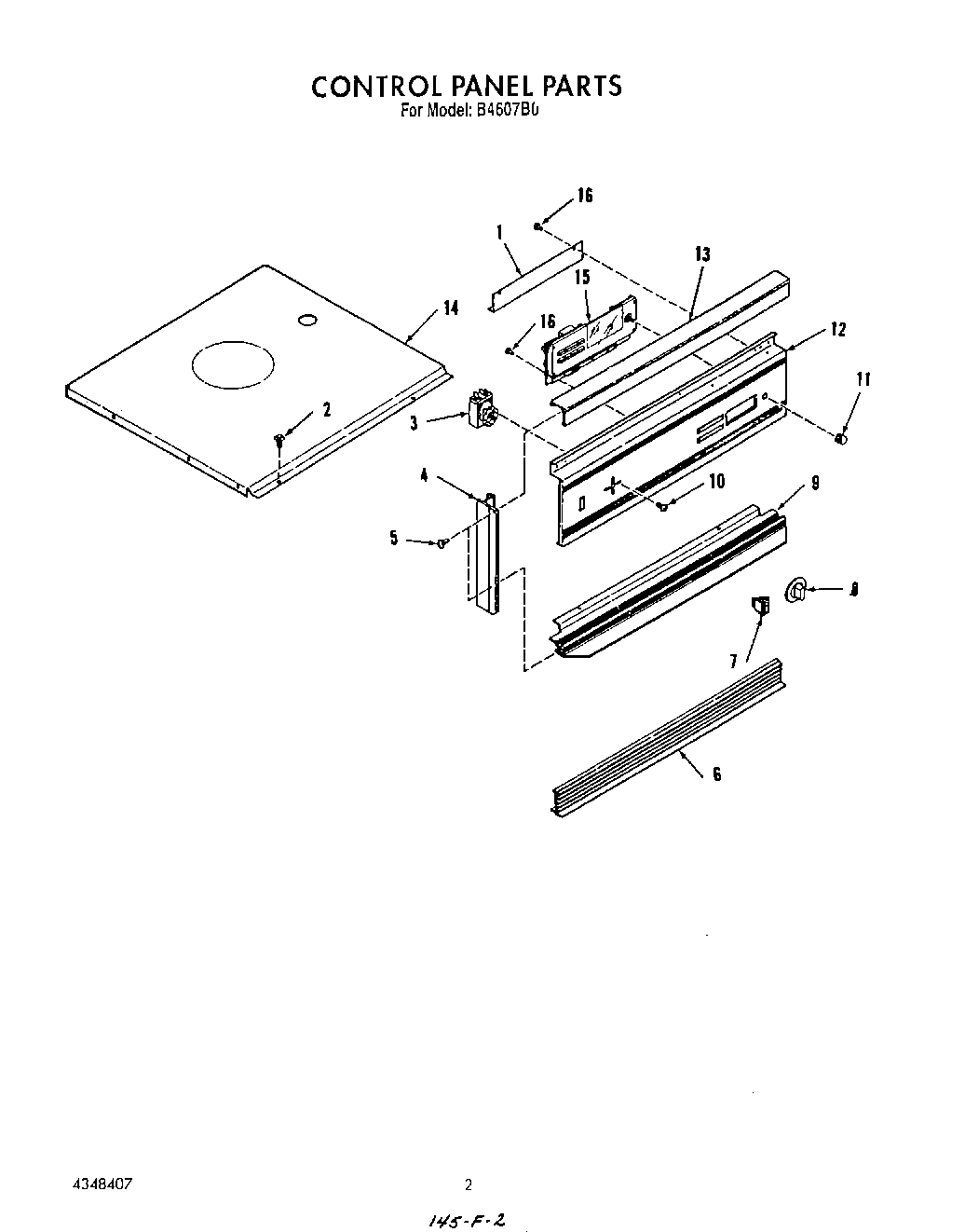

B4607B0 02 – CONTROL PANEL

Products

Position	Product
1	Baffle
2	Screw, No.10-32 x 5/16
3	Thermostat
4	Trim-Control Panel (Left)
4	Trim-Control Panel (Right)
5	Screw No.6-32×1/2
6	Trim, Vent
7	WP4314961 Whirlpool Lite Switch
8	Knob, Thermostat
9	Trim, Lower Panel
10	Screw
11	Knob, Clock
12	Control Panel
13	Lens, Light
14	Retainer, Insulation
15	Clock W/Lens
16	Lens, Clock
16	Screw
