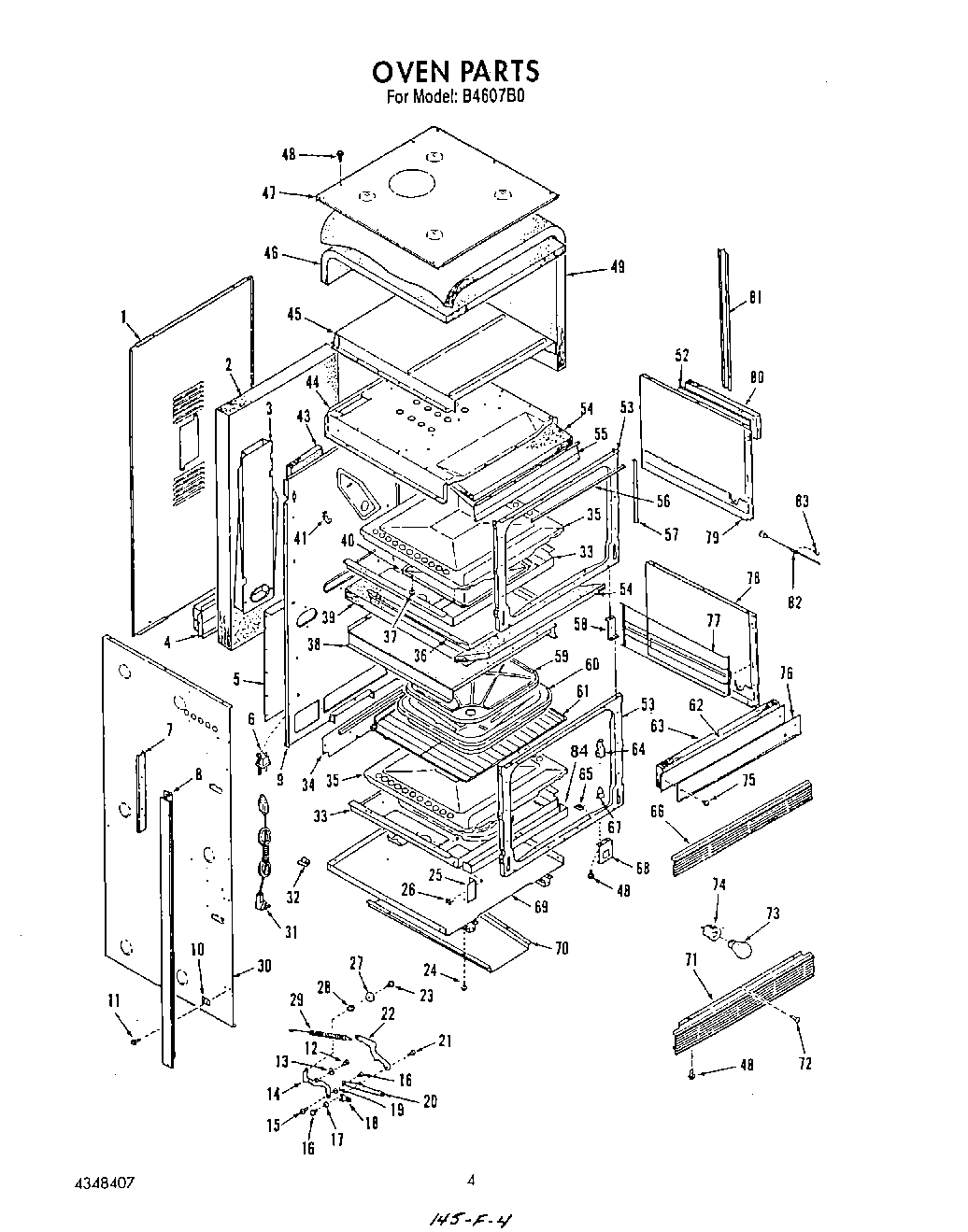

B4607B0 04 – OVEN

Products

PositionProduct
1Rear Cover
2Insulation, Back
3Vent Box
4Cover, Air Chamber
5Cover, Vent
6Disconnect
7Channel Trim Lt/Rt
8Side Trim, Frame (Right)
8Side Trim, Frame (Left)
9Rear Oven Panel
10Spacer, Trim (4)
11Rivet
12Rivet, Shoulder
13Roller
14Hinge-W/Rivet, Sleeve, & Washer (Right (2))
14Hinge-W/Rivet, Sleeve, & Washer (Left (2))
15Sleeve
16Rivet
17489203 Whirlpool Refrigerator Washer
18Latch, Hinge (Right)
18Latch, Hinge (Left)
19Washer
20Arm Assembly W/Rivet, Sleeve, Washer (Up/Lower) (Right)
20Arm Assembly W/Rivet, Sleeve, Washer (Up/Lower) (Left)
21Pilot Sleeve
22Link, Spring
23Screw 1/4-20×3/8
24W10850756 Whirlpool Screw
25Shield, Insulation (2)
26Clip
27Washer
28Lockwasher
29Spring (Up/Lower)
30Side Panel (Right)
30Side Panel (Left)
31Power Service Cord
32Clip
33Burner Box
34Cover Plate, Lower Oven
35Oven Bottom, W/Baffle
36Retainer, Insulation
37Screw, No.10 x 3/8
38Oven Top, Lower Oven
39Insulation, Top And Sides (1 Pc)
40Baffle-Oven Bottom
41Clip, Thermostat Bulb
43Insulation
44Oven Top, Upper Oven
45Vent Box
46Insulation, Top And Sides (1 Pc)
47Top, Oven Cabinet
49Insulation, Top And Sides (1 Pc)
52Insula
53WPL 4336672
54WPL 4350586
55WPL 4336664
56WPL 4338287
57WPL 4338288
58WPL 4325437
59WPL 4336667
604396923 Whirlpool Broil Pan Set Gray Porcelain
61WPL 4325447
62WPL 4328849
63WPL 4353431
64WPL 4335470
65Nut, Speed No.10-32
66WPL 4343176
67WPL 4333868
68WPL 4352035
69WPL 4338325
70WPL 4338332
71WPL 4338357
72Screw No.6-20×5/16
73RANGE ONLY 40W 120V APPL BULB
74W10856866 Whirlpool Light Socket
75Screw No.6-32×3/8
76WPL 4328850
77WPL 4325446
77WPL 4325445
78WPL 4336804
79WPL 4336675
79WPL 4336674
80WPL 4352036
81WPL 4333928
82Sensor
83Screw
84WPL 4338263
