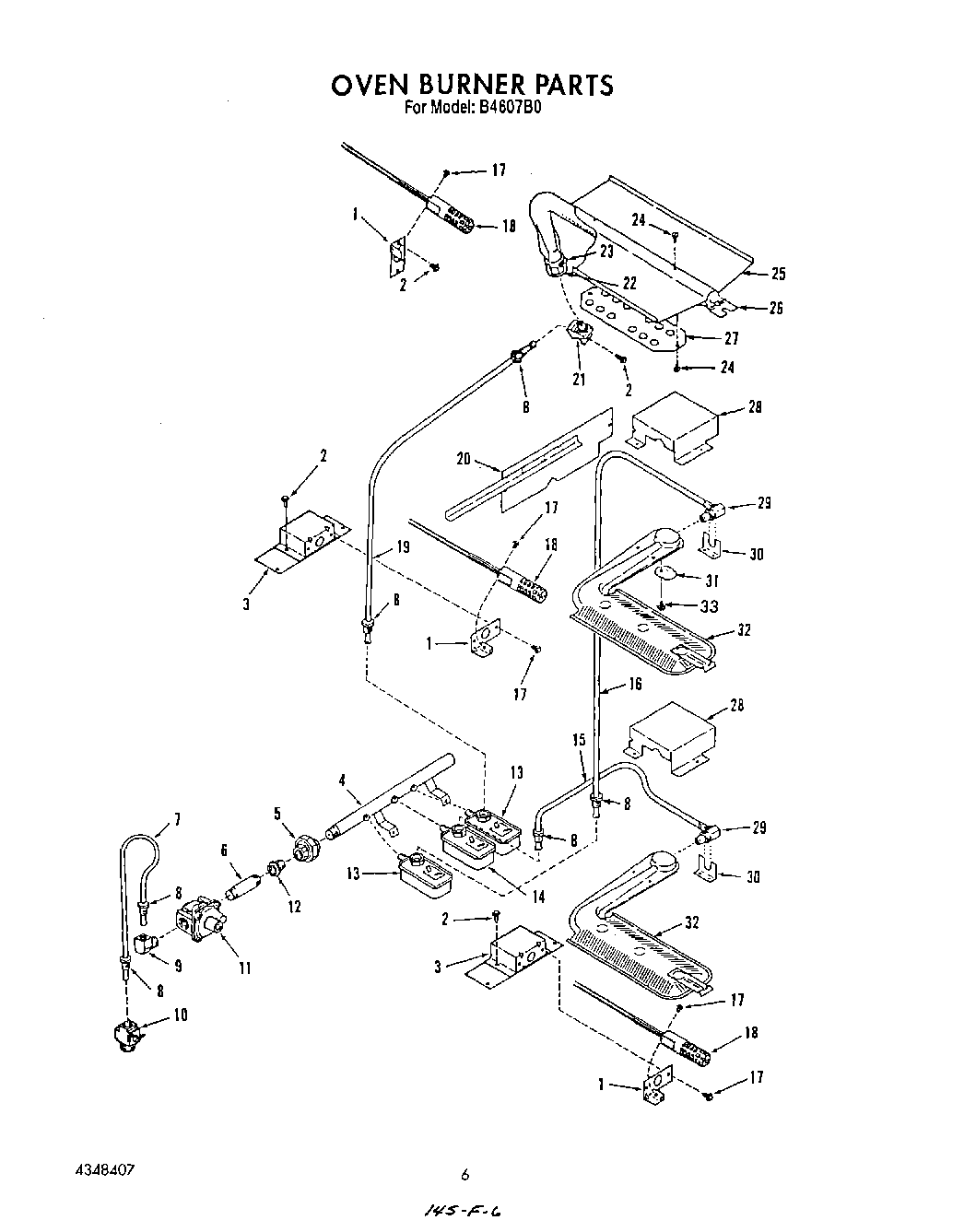

B4607B0 05 – OVEN BURNER

Products

Position	Product
1	Bracket, Igniter
3	Support Assembly, Igniter (Upper)
4	Manifold Pipe, W/Bracket
5	Fitting, 1/2“
6	Fitting, 3/8 x 2
7	Tubing, 3/8“ (Shut Off Valve to Regulator)
8	Nut, Inverted 3/8
9	90o Elbow
10	Valve, Inlet
11	Pressure Regulator
12	Bushing, Reducer
13	Control Valve
14	Control Valve
15	3/8 Tubing W/Orifice (Cont. Valve to Lo. Oven
16	3/8 Tubing W/Orifice (Cont. Valve to Up. Oven
17	W10850756 Whirlpool Screw
18	Ignitor-Bake/Broil
19	Tubing 3/8“, Control Valve to Broiler Orifice
20	Cover Plate, W/Angle
21	Fitting, Broiler Orifice
22	Shutter, Air
23	Adjusting Screw, Air Shutter
24	WP489128 Whirlpool Refrigerator Screw
25	Baffle-Oven Burner
26	Broiler Burner, Inc`s 25 & 27
27	Lower Baffle, Broiler Burner
28	Cover, Venturi
29	Orifice Fitting
30	Bracket, Orifice Fitting
31	Air Shutter
32	Oven Burner
33	Screw No.10-32×1/4
