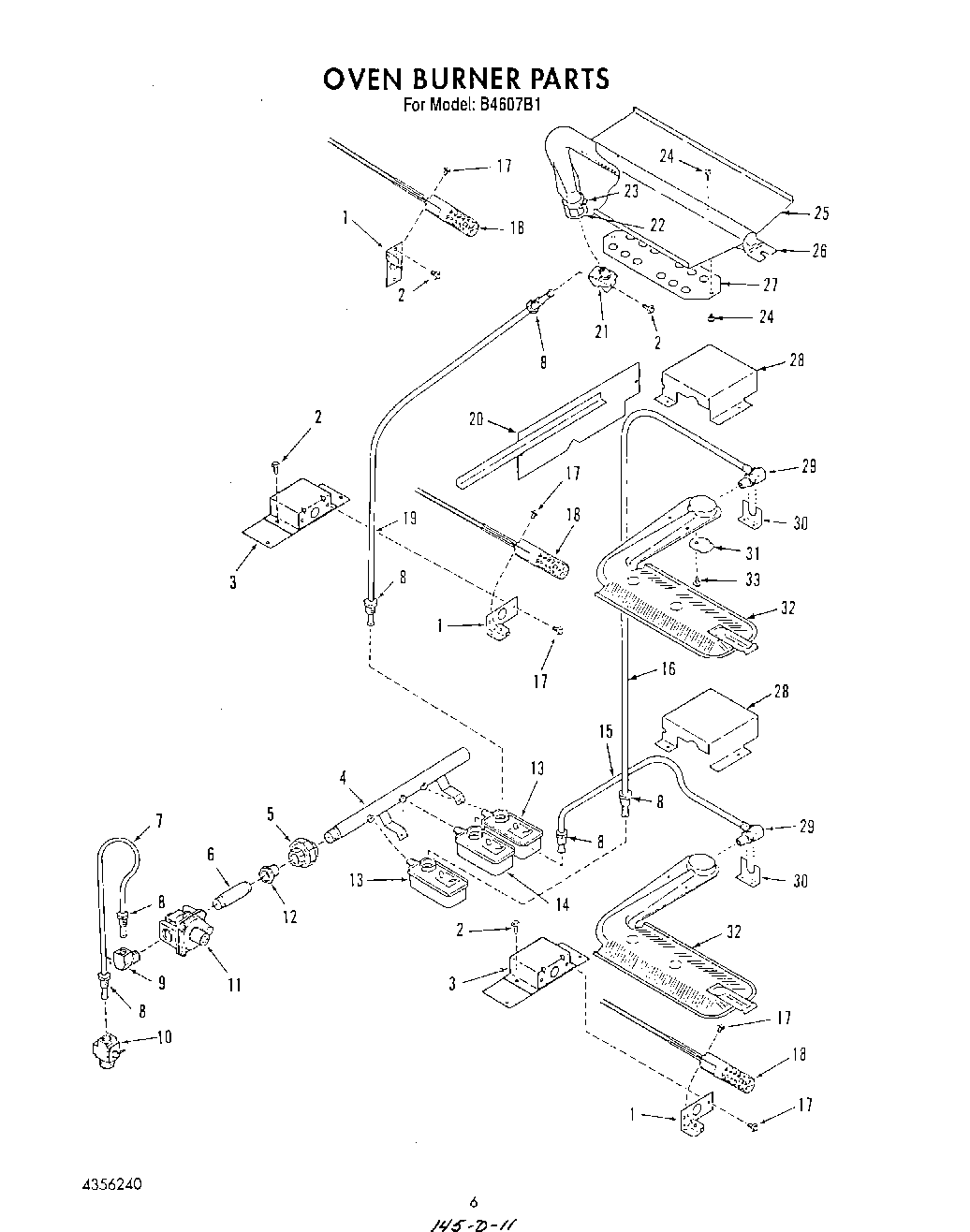

| 1 | Bracket, Igniter |
| 3 | Support Assembly, Igniter (Upper) |
| 4 | Manifold Pipe, W/Bracket |
| 5 | Fitting, 1/2`` |
| 6 | Fitting, 3/8 x 2 |
| 7 | Tubing, 3/8`` (Shut Off Valve to Regulator) |
| 8 | Nut, Inverted 3/8 |
| 9 | 90o Elbow |
| 10 | Valve, Inlet |
| 11 | Pressure Regulator |
| 12 | Bushing, Reducer |
| 13 | Control Valve |
| 14 | Control Valve |
| 15 | 3/8 Tubing W/Orifice (Cont. Valve to Lo. Oven |
| 16 | 3/8 Tubing W/Orifice (Cont. Valve to Up. Oven |
| 17 | W10850756 Whirlpool Screw |
| 18 | Ignitor-Bake/Broil |
| 19 | Tubing 3/8``, Control Valve to Broiler Orifice |
| 20 | Cover Plate, W/Angle |
| 21 | Fitting, Broiler Orifice |
| 22 | Shutter, Air |
| 23 | Adjusting Screw, Air Shutter |
| 24 | WP489128 Whirlpool Refrigerator Screw |
| 25 | Baffle-Oven Burner |
| 26 | Broiler Burner, Inc`s 25 & 27 |
| 27 | Lower Baffle, Broiler Burner |
| 28 | Cover, Venturi |
| 29 | Orifice Fitting |
| 30 | Bracket, Orifice Fitting |
| 31 | Air Shutter |
| 32 | Oven Burner |
| 33 | Screw No.10-32x1/4 |
