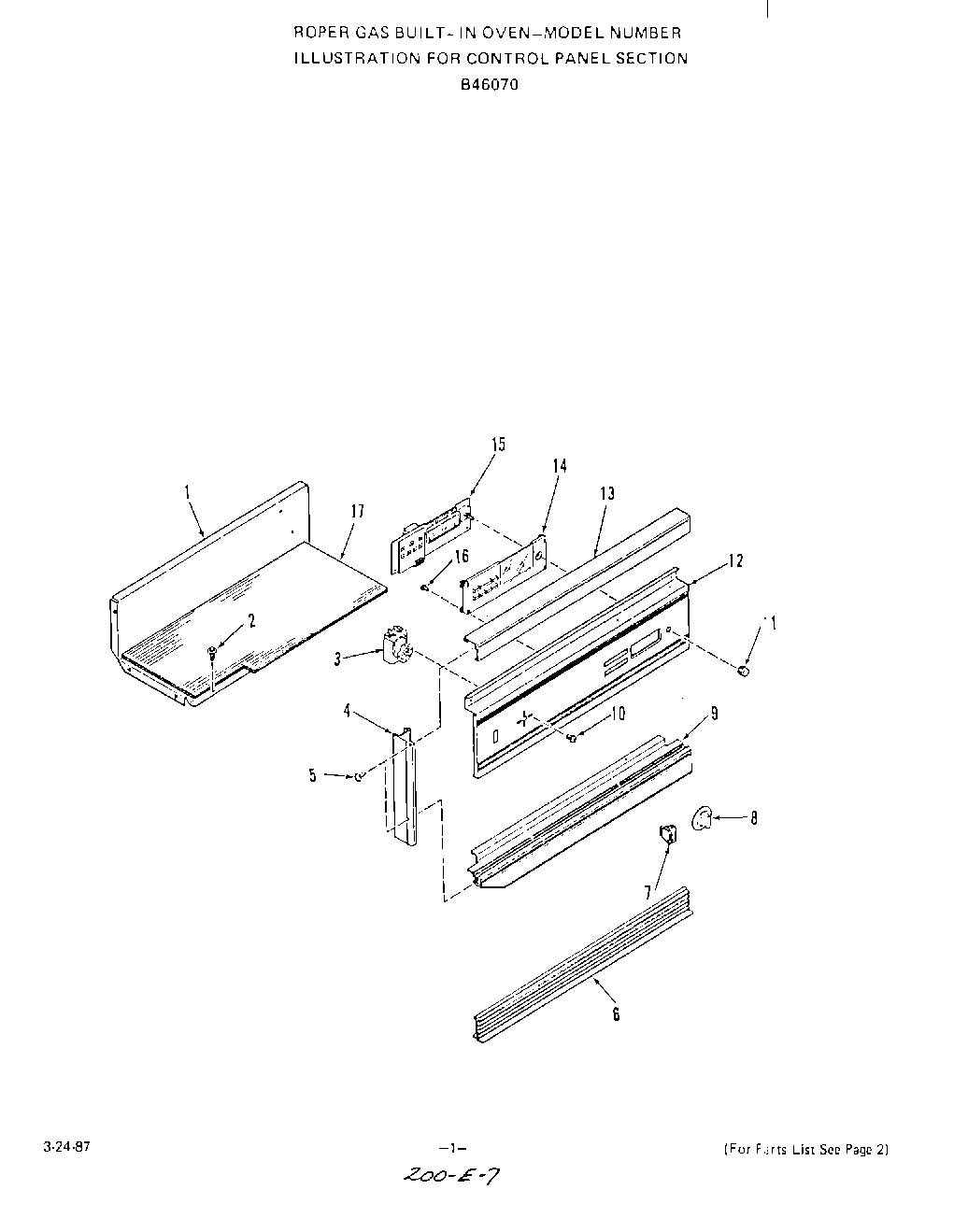

B4607X0 02 – CONTROL PANEL

Products

Position	Product
1	Baffle-Control Panel
2	Screw 10-32×5/16“
3	Thermostat
4	Left
4	Side Trim-Control Panel
4	Right
5	WP112432 Whirlpool Nut Assembly
6	Trim Vent
7	Switch-Oven Light
8	Thermostat Knob
9	Oven Door Hinge (Right)
10	Screw
11	Knob-Clock
12	Control Panel
13	Lamp Shade
14	xClock /Oven Control Lens
15	Clock
16	Screw 6-32×5/16“
17	Corrugated INsulation
