B4607X0 03 – BODY

B4607X0 03 – BODY

Written by

in

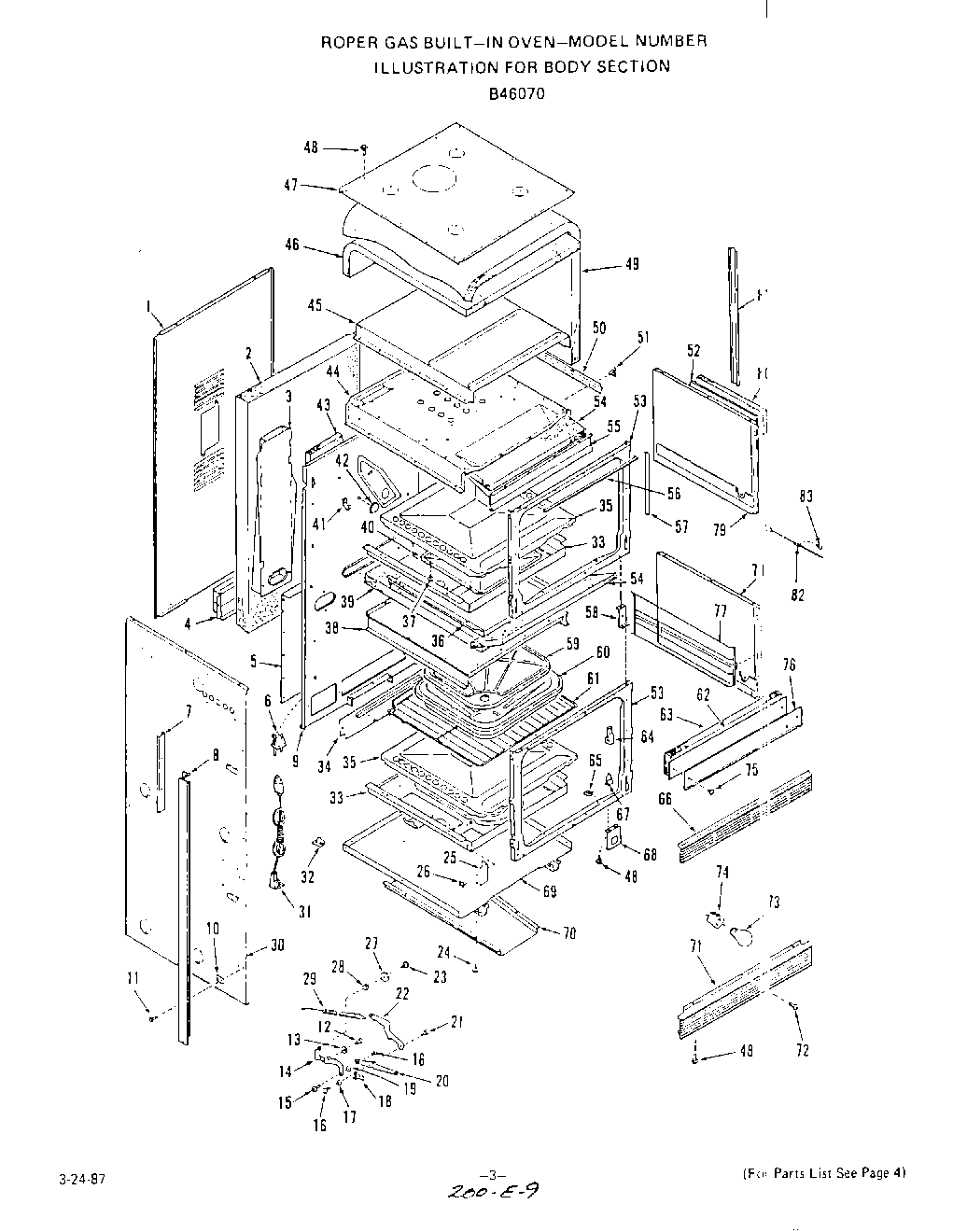

B4607X0 03 – BODY

Products

Position	Product
1	Wire Cover
2	Insulation-Oven Back
3	Vent Box
4	Air Chamber Cover
5	WP4391960 Whirlpool Dryer Heating Element
6	Disconnect
7	Channel Trim – Lt. or Rt.
8	Left
8	Right
8	Side Trim-Front Frame
9	Oven Back
10	Spacer-Side Trim (4 Req)
11	WPL 281160
12	Shoulder Rivet
13	Roller
14	Right (Up. or Lo. Oven)
14	Left (Up. or Lo. Oven)
14	Oven Door Hinge w/Rivet, Sleeve & Washer
15	Hinge Pivot Sleeve
16	Rivet
17	Washer
18	Hinge Latch (Left)
18	Hinge Latch (Right)
18	Hinge Latch
19	Washer
20	Oven Door Arm w/Rivet, Sleeve & Washer
20	Left (Up. or Lo. Oven)
20	Right (Up. or Lo. Oven)
21	Hinge Pivot Sleeve
22	Spring Link
23	Bolt 1/4-20×3/8“
24	Screw 10Ax3/8“
25	Insulation Shield (2 Req)
27	WPL 323451
28	WPL 69459
29	Oven Door Spring (Up or Lo Oven)
30	Right
30	Left
30	Body Side
31	Service Cord
32	WPL 97047
33	Burner Box
34	Cover Plate-Lower Oven
35	Oven Bottom w/Baffle
36	Insulation Retainer
37	Screw 10 – 32 x 7/16“
38	Oven Top-Lower Oven
39	Insulation-Oven Top & Sides (1 Piece)
40	Baffle-Oven Bottom
41	Clip-Thermotat Bulb (2 Req)
42	Plug Button
43	Insulation
44	Oven Top-Upper Oven
45	WPL 313320
46	WPL 313321
47	Oven Cabinet Top
48	WP112432 Whirlpool Nut Assembly
49	Insulation-Oven
51	Clip
53	WPL 331856
54	WPL 97324
55	WPL 331848
56	WPL 315944
57	WPL 315945
58	WPL 279476
59	WPL 331851
60	WPL 331850
61	WPL 279539
62	WPL 303382
63	WPL 306481
64	WPL 327977
65	Speed Nut 10 – 32
66	WPL 336823
67	WPL 323446
68	WPL 327982
69	WPL 327965
70	279264 Whirlpool Bearing and Seal Kit
71	WPL 336626
72	WPL 231648
73	Oven Lamp Bulb
74	Holder-Oven Light Bulb
75	Screw 6-32×3/8“
76	WPL 303383
77	WPL 279538
77	WPL ARI20597A7
77	WPL 279537
78	WPL 331858
78	WPL ARI20598A9
79	WPL 331859
79	WPL 332376
79	WPL ARI20599A6
80	Insulation (Lt. or Rt.)
81	WPL 323619
82	WPL 335851
83	Screw
