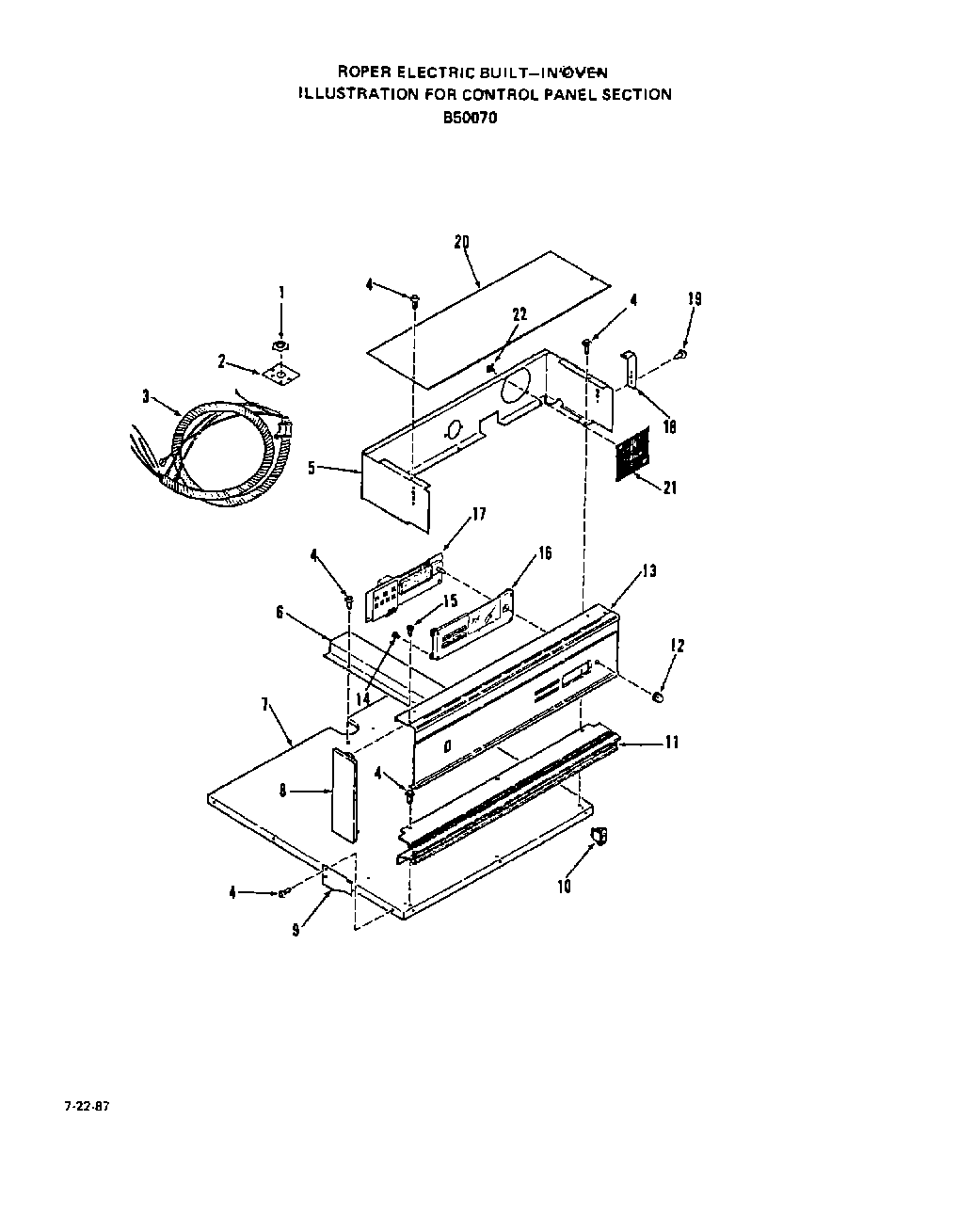

B5007X0 02 – CONTROL PANEL

Products

PositionProduct
1Nut (For Key 45)
2Plate (For Key 45)
3Harness Conduit Asm.
4Screw 10-16×7/16“
5Control Housing
6Wire Cover
7Cabinet Top
8Left
8Right
9Heat Shield (Lt. or Rt.)
10Switch-Oven Light
11Trim Control Panel
12Knob-Clock
13Control Panel
14Screw 6-32×5/16“
15Screw 10-16×1/2“
16xClock /Oven Control Lens
17Clock
18Bracket
19WP112432 Whirlpool Nut Assembly
20Top Cover-Control Housing
21Control Housing Screen
22Clip
