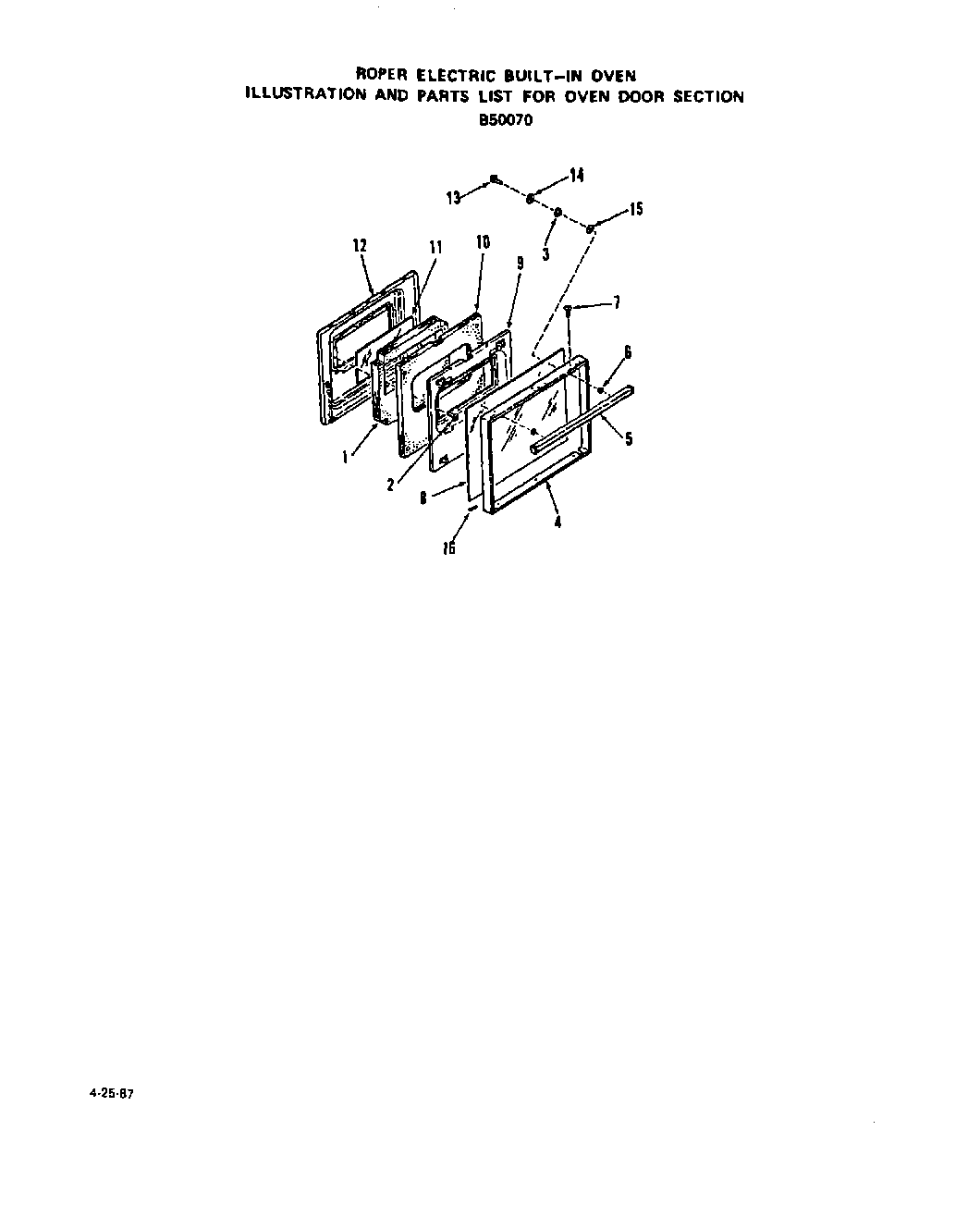

B5007X0 04 – OVEN DOOR, LIT/OPTIONAL

Products

Position	Product
1	Insulation-Oven Door Plug
2	WP112432 Whirlpool Nut Assembly
3	Spacer-Glass
4	Frame-Oven Door
5	Handle-Oven Door
6	Spacer
7	Screw 6-20×3/8“
8	Oven Door Glass-Outer
9	Retainer-Oven Door Insulation
10	Element-Hob (Small)
11	Oven Door Glass-Center
12	Lining-Oven Door
13	Screw 10-32×3/4“
14	Washer
15	Washer
16	Cushion-Door Glass
16	Use And Care Manual
16	Installation Guide
16	Repair Parts List
