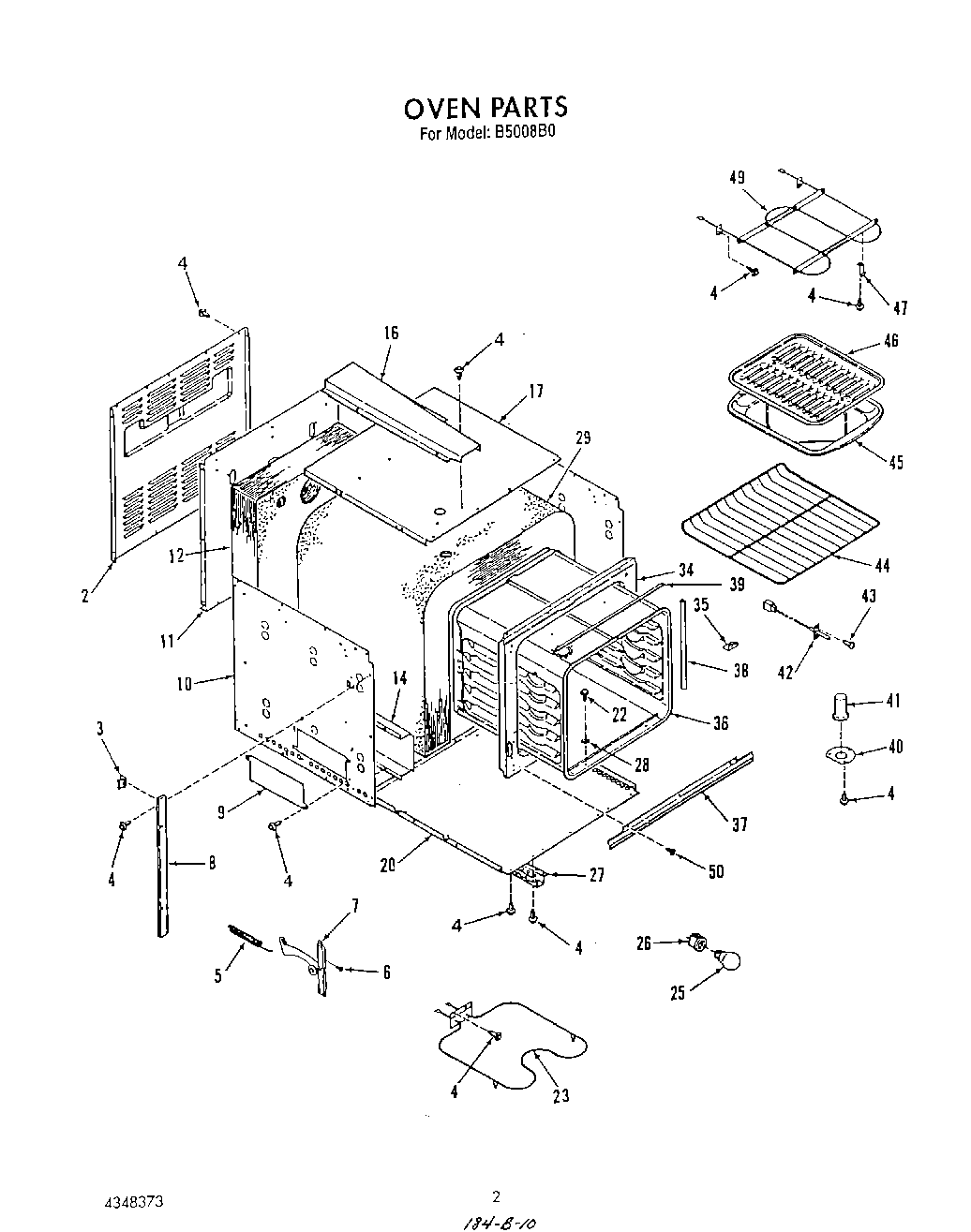

| 2 | Back, Cabinet |
| 3 | Spacer (6) |
| 4 | SCREW |
| 5 | Spring, Oven Door (Lt/Rt) (Upper Oven) |
| 6 | Screw |
| 7 | Hinge Assembly (Right) |
| 7 | Hinge Assembly (Left) |
| 8 | Side Trim (Lt/Rt) (Mdl. B9308B3) |
| 9 | Cover Plate (4) |
| 10 | Side-Cabinet (Lt/Rt) |
| 11 | Cover, Rear |
| 12 | WPL 4337724 |
| 14 | Retainer, Door Spring Insulation (Lt/Rt) |
| 16 | Vent Box |
| 17 | Retainer, Oven Top Insulation, (Lower Oven) |
| 20 | Bottom, Cabinet |
| 22 | Screw, No.10-32 x 17/32 |
| 23 | WPL 4335541 |
| 25 | RANGE ONLY 40W 120V APPL BULB |
| 26 | W10856866 Whirlpool Light Socket |
| 27 | Channel, Bottom Cabinet (Lt/Rt) |
| 28 | Washer |
| 29 | Insulation-Top & Sides (1 Pc) |
| 34 | Frame, Front |
| 35 | Cover |
| 36 | Oven Body (Upper Oven) |
| 37 | WPL 4337706 |
| 38 | Seal, Door Sides (Lower) Rt/Lt |
| 39 | Seal, Door Top (Lower Oven) |
| 40 | WPL 4335624 |
| 41 | WPL 4335954 |
| 42 | Sensor |
| 43 | Screw |
| 44 | Rack, Oven (2) |
| 46 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 47 | WPL 4334358 |
| 49 | WPL 4335542 |
| 50 | Screw, Trim |
