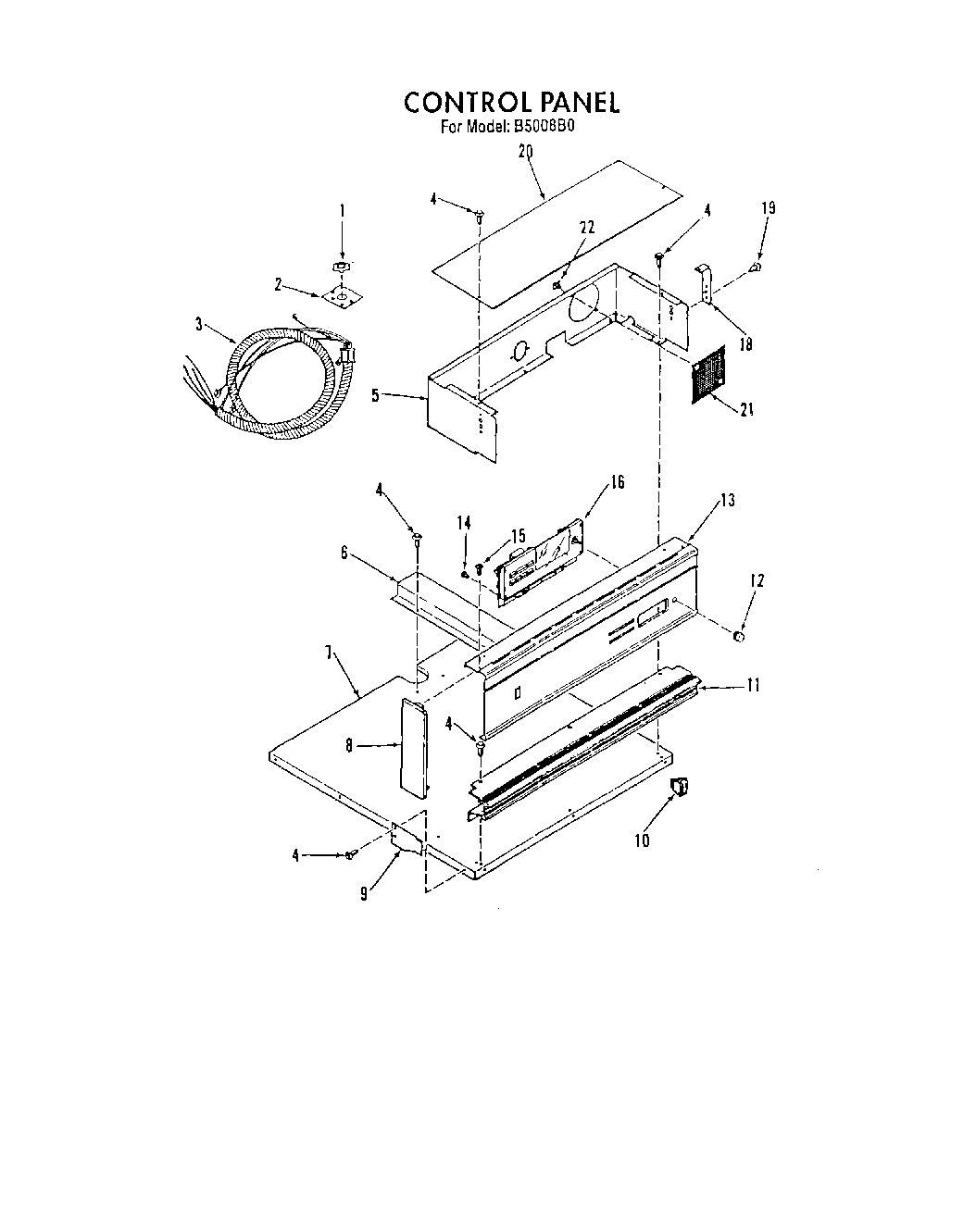

B5008B0 03 – CONTROL PANEL

Products

PositionProduct
Lens, Clock
1Nut, Lock
2Plate, Service
3Harness-Conduit
4SCREW
5Housing, Control
6Cover, Wire
7Top-Cabinet
8End Cap (Right)
8End Cap (Left)
9Heat Shield, (Lt/Rt)
10WP4314961 Whirlpool Lite Switch
11Trim
12Knob, Clock
13Control Panel
14Screw
15Screw
16Control-Clock/Oven
18Bracket
19W10850756 Whirlpool Screw
20Cover, Top
21Screen, Housing
22Clip, Trim
