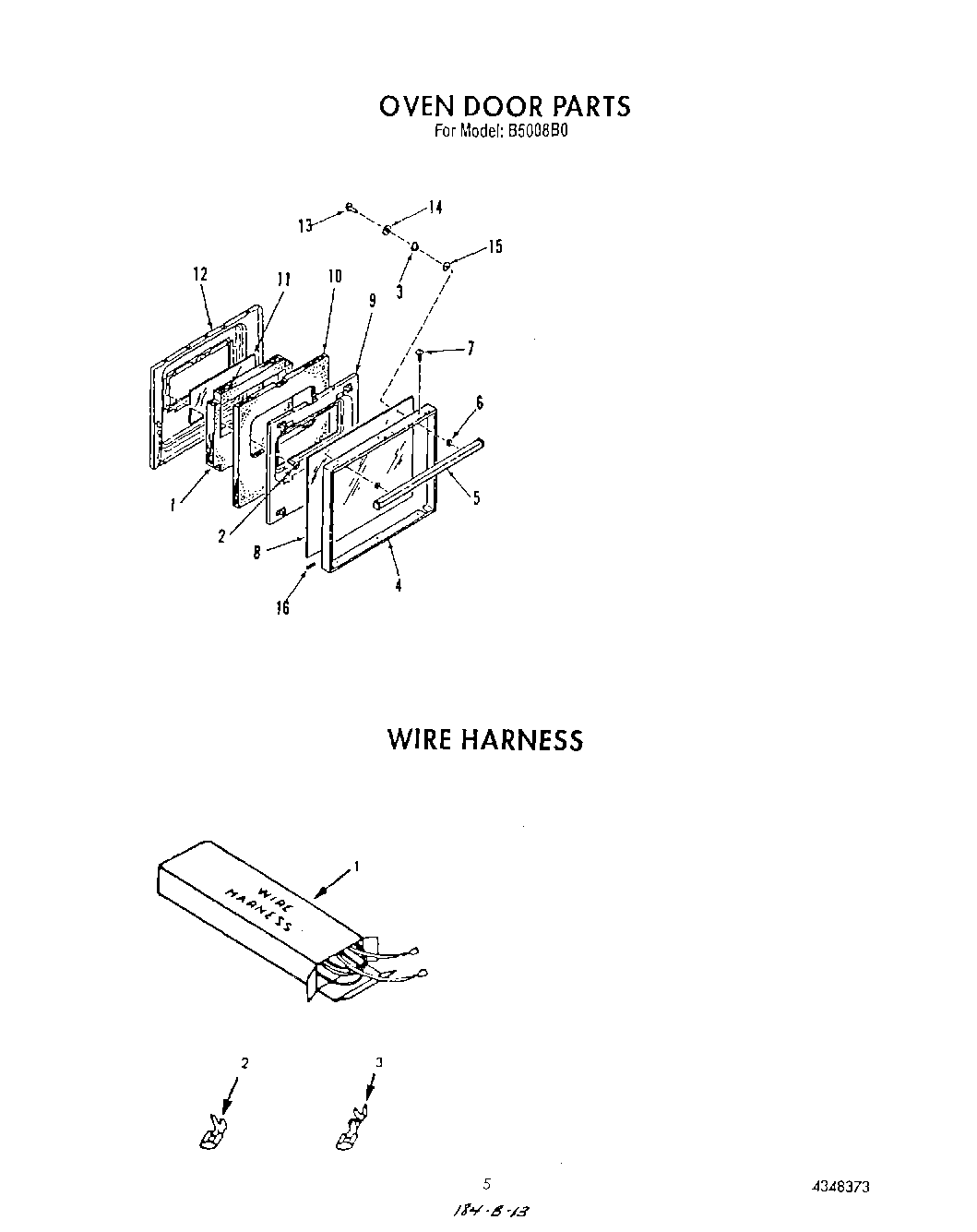

B5008B0 04 – OVEN DOOR , WIRE HARNESS

Products

Position	Product
	xParts Not Shown On Illustration
	xRepair Parts List
	xUse & Care Manual
	xInstallation Guide
A1	Wire Harness (Main)
A2	Flag Terminal
A3	Wire Harness (3/16“)
1	Insulation
1	Sensor
2	W10850756 Whirlpool Screw
3	Spacer, Glass Door
3	WP285432 Whirlpool Terminal
4	Door Frame
5	Handle
6	Spacer, Dr. Handle
7	Screw 6-20×3/8
8	Door Glass, Outer
9	Retainer, Insulation
10	Insulation
11	Glass, Inner
12	Lining-Oven Door
13	WP999367 Whirlpool Refrigerator Screw
14	Washer
15	Washer, Fiber
16	Cushion
