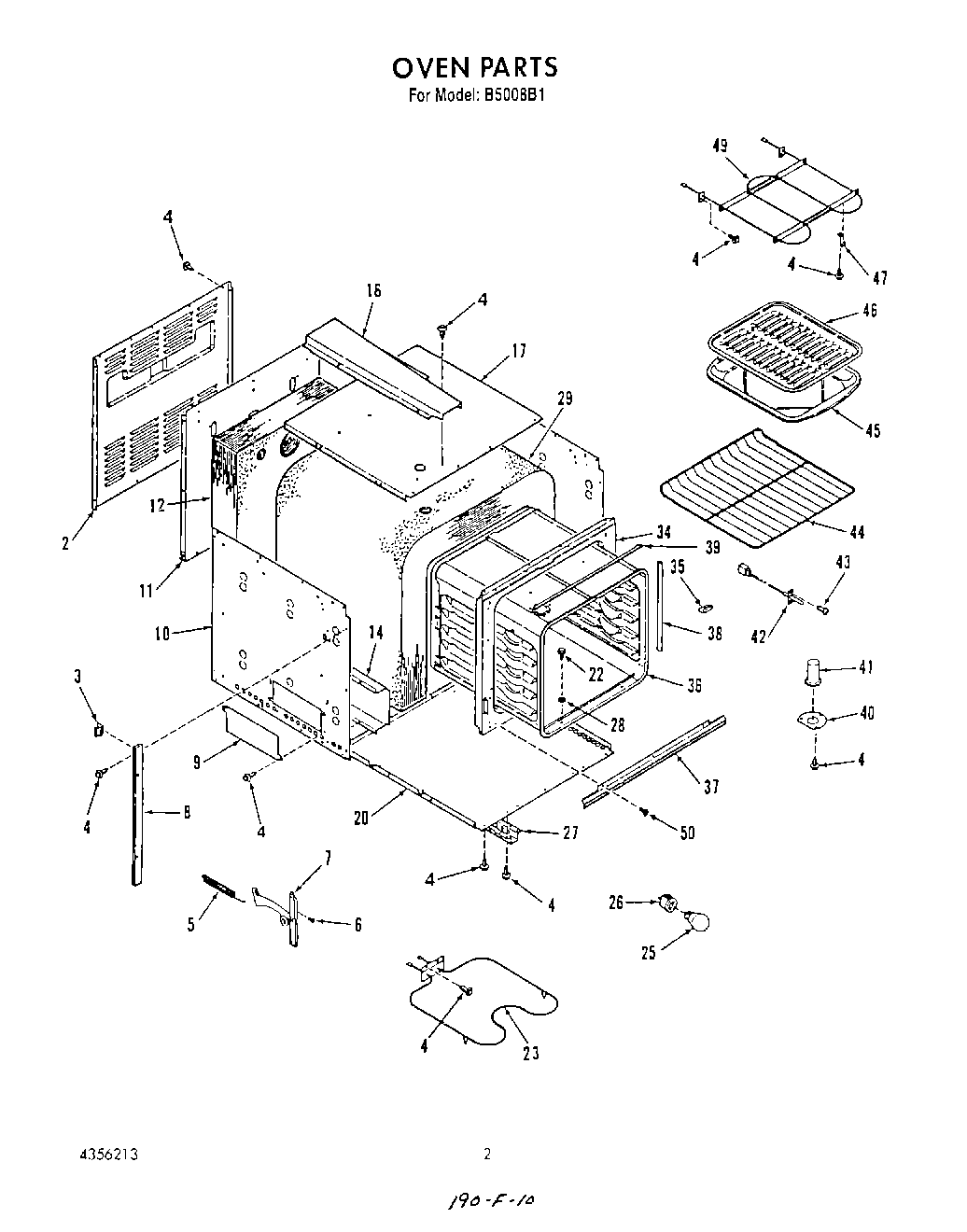

B5008B1 02 – OVEN

Products

Position	Product
2	Back, Cabinet
3	Spacer (6)
4	W10850756 Whirlpool Screw
5	Spring, Oven Door (Lt/Rt) (Upper Oven)
6	Screw
7	Hinge (Left (2))
7	Hinge (Right (2))
8	Side Trim (Lt/Rt) (Mdl. B9308B3)
9	Cover Plate (4)
10	Side-Cabinet (Lt/Rt)
11	Cover, Rear
12	WPL 4337724
14	Retainer, Door Spring Insulation (Lt/Rt)
16	Vent Box
17	Retainer, Oven Top Insulation, (Lower Oven)
20	Bottom, Cabinet
22	Screw, No.10-32 x 17/32
23	WPL 4335541
25	RANGE ONLY 40W 120V APPL BULB
26	W10856866 Whirlpool Light Socket
27	Channel, Bottom Cabinet (Lt/Rt)
28	Washer
29	Insulation, Top & Sides (1 Pc) (Upper/Lower)
34	Frame, Front
35	Cover
36	Oven Body (Upper Oven)
37	Tr
38	Seal, Door Sides (Lower) Rt/Lt
39	Seal, Door Top (Lower Oven)
40	WPL 4335624
41	WPL 4335954
42	Sensor
43	Screw
44	Rack, Oven (2)
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	WPL 4334358
49	WPL 4335542
50	Screw, Trim
