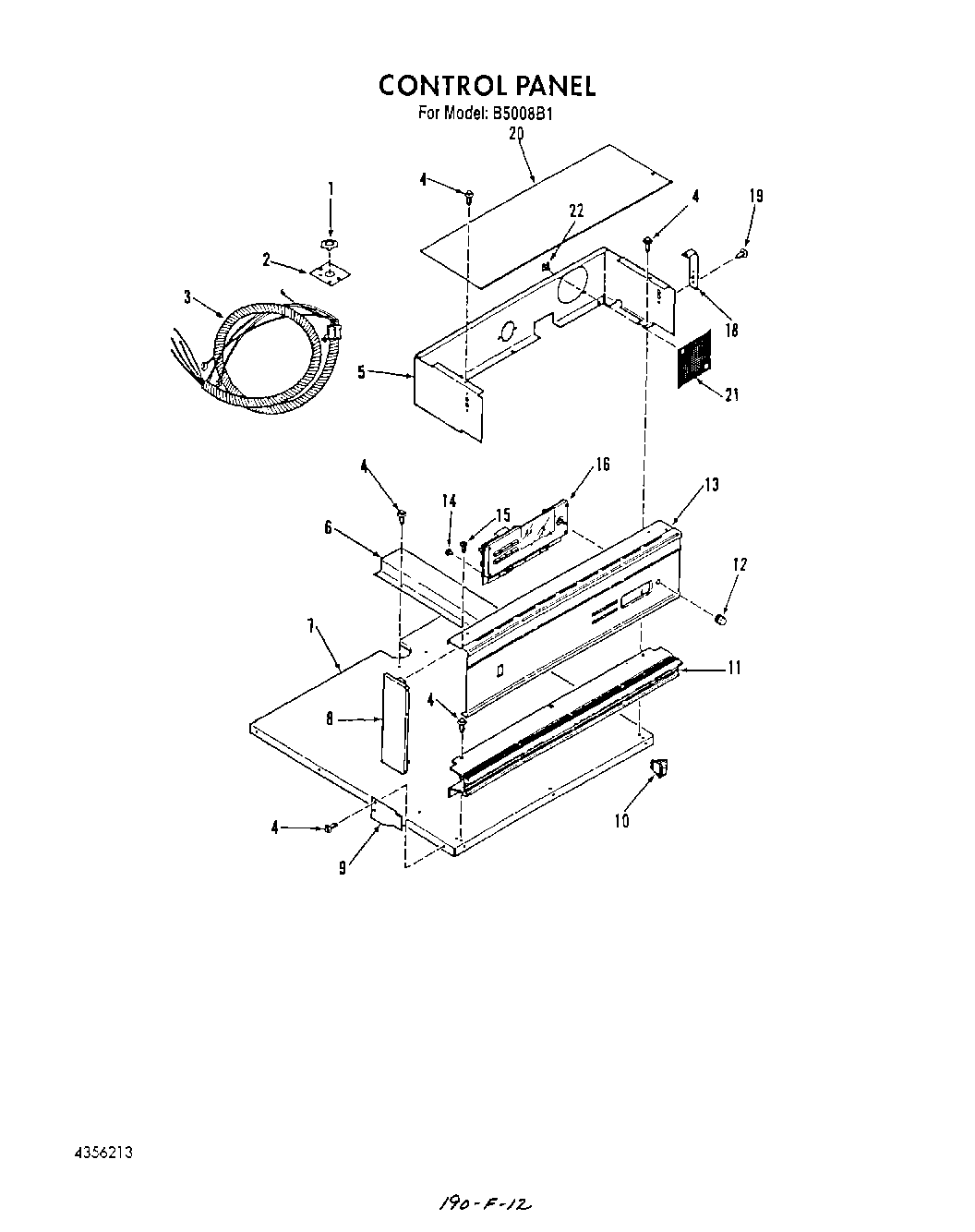

B5008B1 03 – CONTROL PANEL

Products

Position	Product
1	Nut, Lock
2	Plate, Service
3	Harness-Conduit
4	SCREW
5	Housing, Control
6	Cover, Wire
7	Top-Cabinet
8	End Cap (Right)
8	End Cap (Left)
9	Heat Shield, (Lt/Rt)
10	WP4314961 Whirlpool Lite Switch
11	Trim
12	Knob, Clock
13	Control Panel
14	Screw
15	Screw, No.10-32 x 1/2
16	Clock W/Lens
18	Bracket
19	Screw
20	Cover
21	Screen, Housing
22	Flag Terminal
22	Wire Harness (3/16“)
22	Sensor
22	Clip
22	WP285432 Whirlpool Terminal
