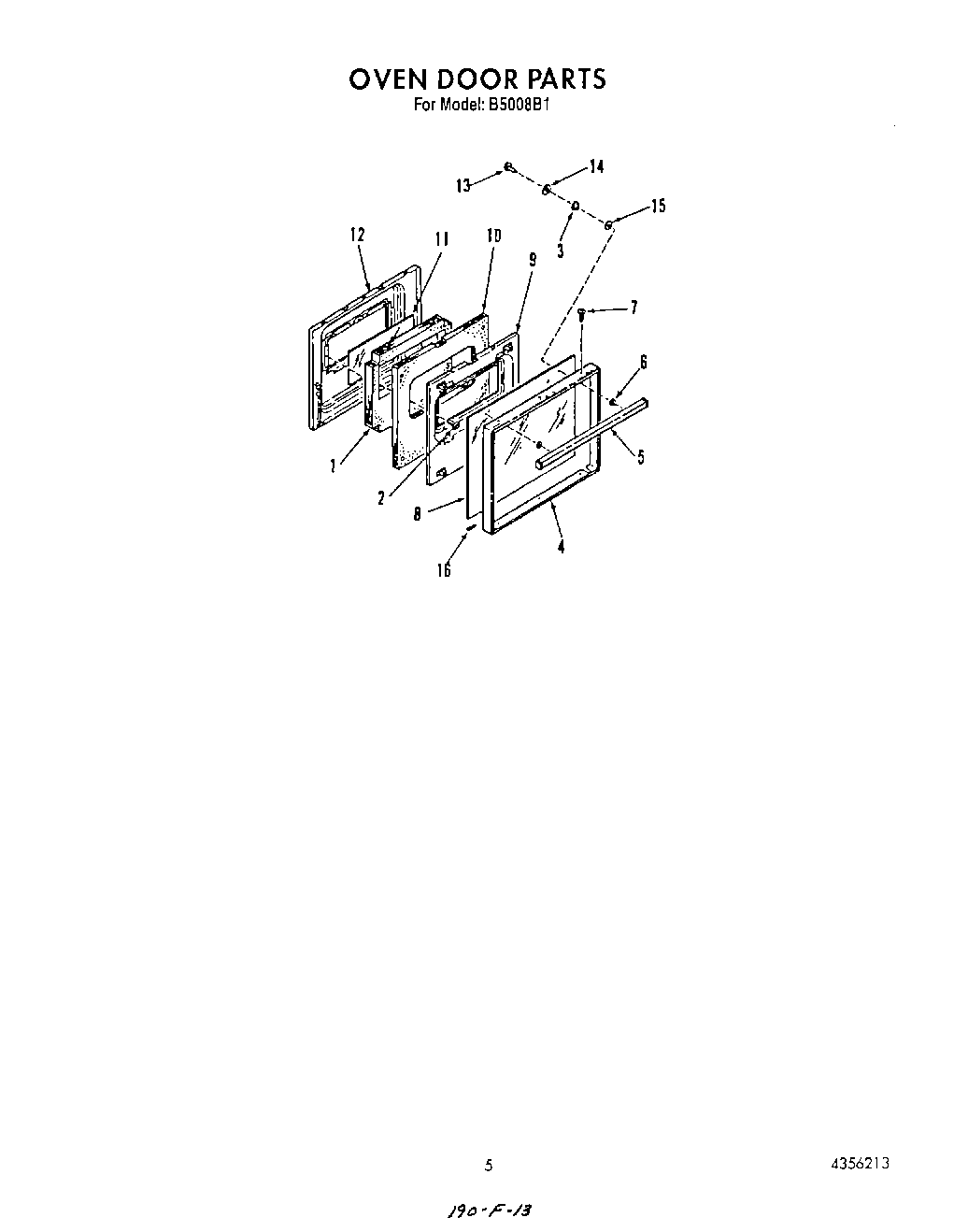

B5008B1 04 – OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
1	Insulation
2	W10850756 Whirlpool Screw
3	Spacer, Glass Door
4	Door Frame
5	Handle
6	Spacer, Dr. Handle
7	Screw No.6-20×5/16
8	Door Glass, Outer
9	Retainer, Insulation
10	Insulation
11	Glass, Inner
12	Lining-Oven Door
13	Screw, No.10-32 x 3/4
14	Retainer
15	Washer, Fiber
16	Cushion
