B6307X0 02 – BURNER SECTION – Aparts

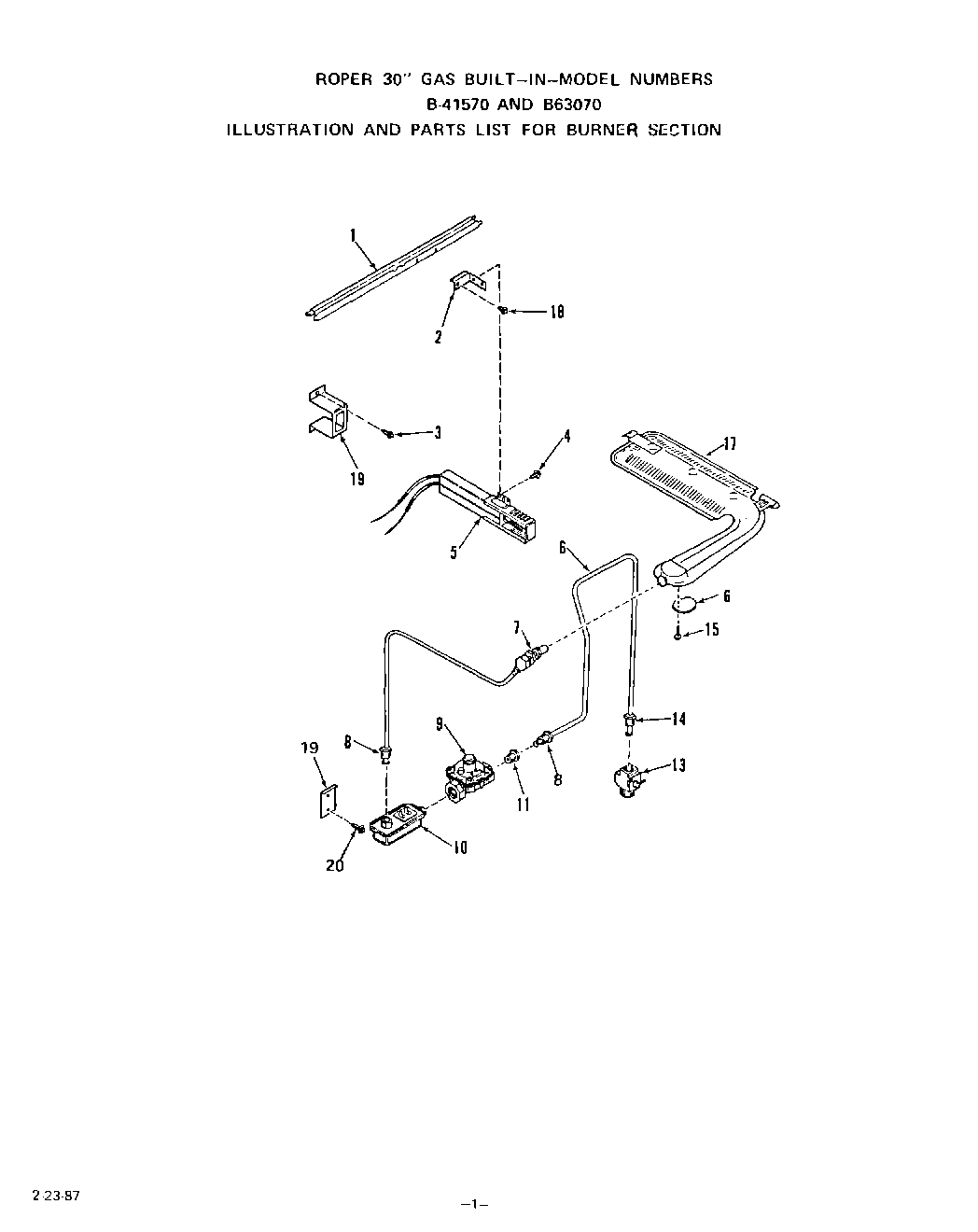

B6307X0 02 – BURNER SECTION

Products

Position	Product
1	Oven Burner Support
2	Igniter Bracket
3	Screw 10-16x7/16``
4	Screw 8 - 32x3/8``
5	Igniter
6	Tubing 3/8`` (Shut Off to Union)
7	Orfice Tubing w/Nut
9	Pressure Regulator
10	Control Valve
11	Connector
12	Bracket-Control Valve
13	Inlet Valve
14	Inverted Nut 3/8``
16	Air Shutter
17	Oven Burner
18	Screw 10 - 32 x 1/4``
19	Igniter Support Bracket
20	WP112432 Whirlpool Nut Assembly
