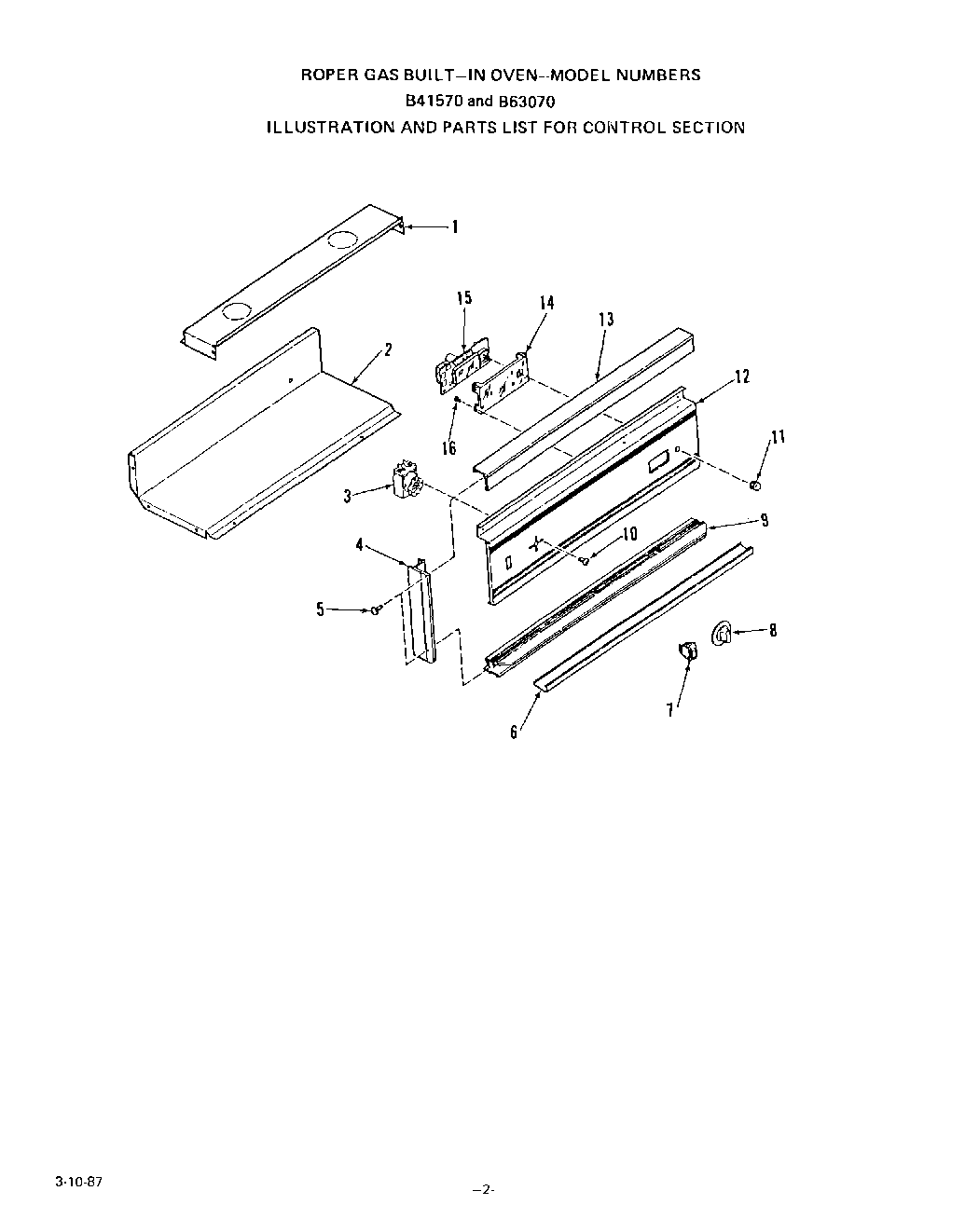

B6307X0 03 – CONTROL SECTION, LIT/OPTIONAL

B6307X0 03 – CONTROL SECTION, LIT/OPTIONAL

Written by

in

B6307X0 03 – CONTROL SECTION, LIT/OPTIONAL

Products

PositionProduct
1Top Cover (Front)
2Control Cover
3Thermostat
4Side Trim-Control Panel (Left)
4Oven Door Hinge (Left)
5Screw 6-32×1/2“
7Switch-Oven Light
8Thermostat Knob
9Lower Trim-Control Panel
10Screw 8-32×3/16“
11Knob-Clock
12Control Panel
13Lamp Shade
14Clock Lens
15Clock
15Installation Guide
15Use & Care Manual
15Repair Parts List
