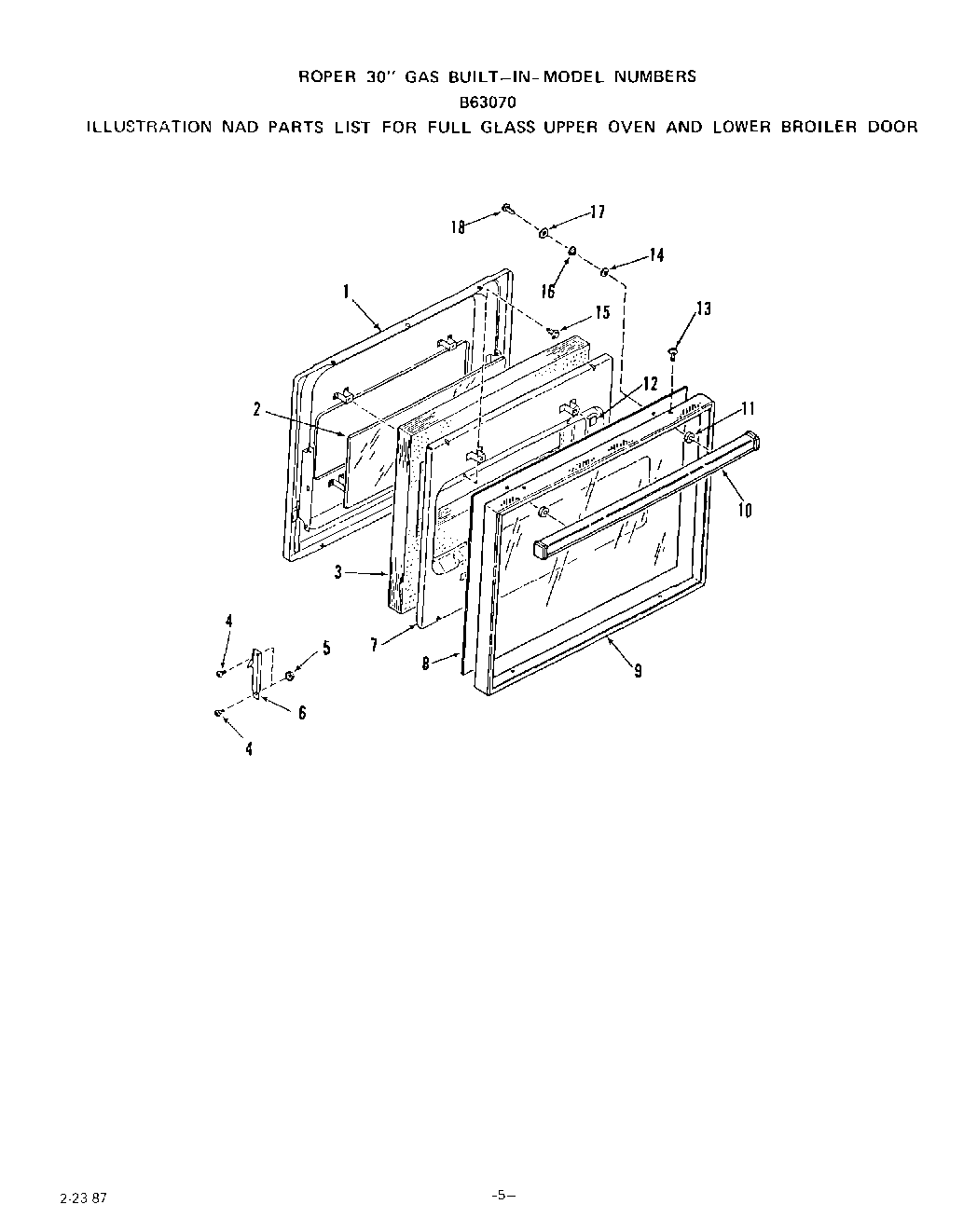

B6307X0 05 – FULL GLASS UPPER OVEN AND LOWER BROILER

Products

Position	Product
1	Door Lining – Upper or Lower Door
1	Door Lining (Lower)
2	Door Glass-Inner
3	Insulation Oven Door (Lower)
3	Insulation – Upper or Lower Door
4	Shoulder Rivet
5	Hex Nut 10-32
6	Hinge Arm Guide (Left)
6	Hinge Arm Guide (Right)
7	Insulation Retainer (Upper)
7	Insulation Retainer (Lower)
8	Door Glass Outer
9	Lower
9	Door Frame-Upper or Lower Door
9	Door Glass-Outer-Upper or Lower Door
9	Door Frame (Lower)
10	Door Handle
11	Spacer
12	Spacer (4 Req.)
13	Screw
14	Washer
15	Screw 10 – 32×3/8“
16	Spacer-Glass
17	Washer
18	Screw 10-32×3/4“
