B6757B0 03 – BODY

B6757B0 03 – BODY

Written by

in

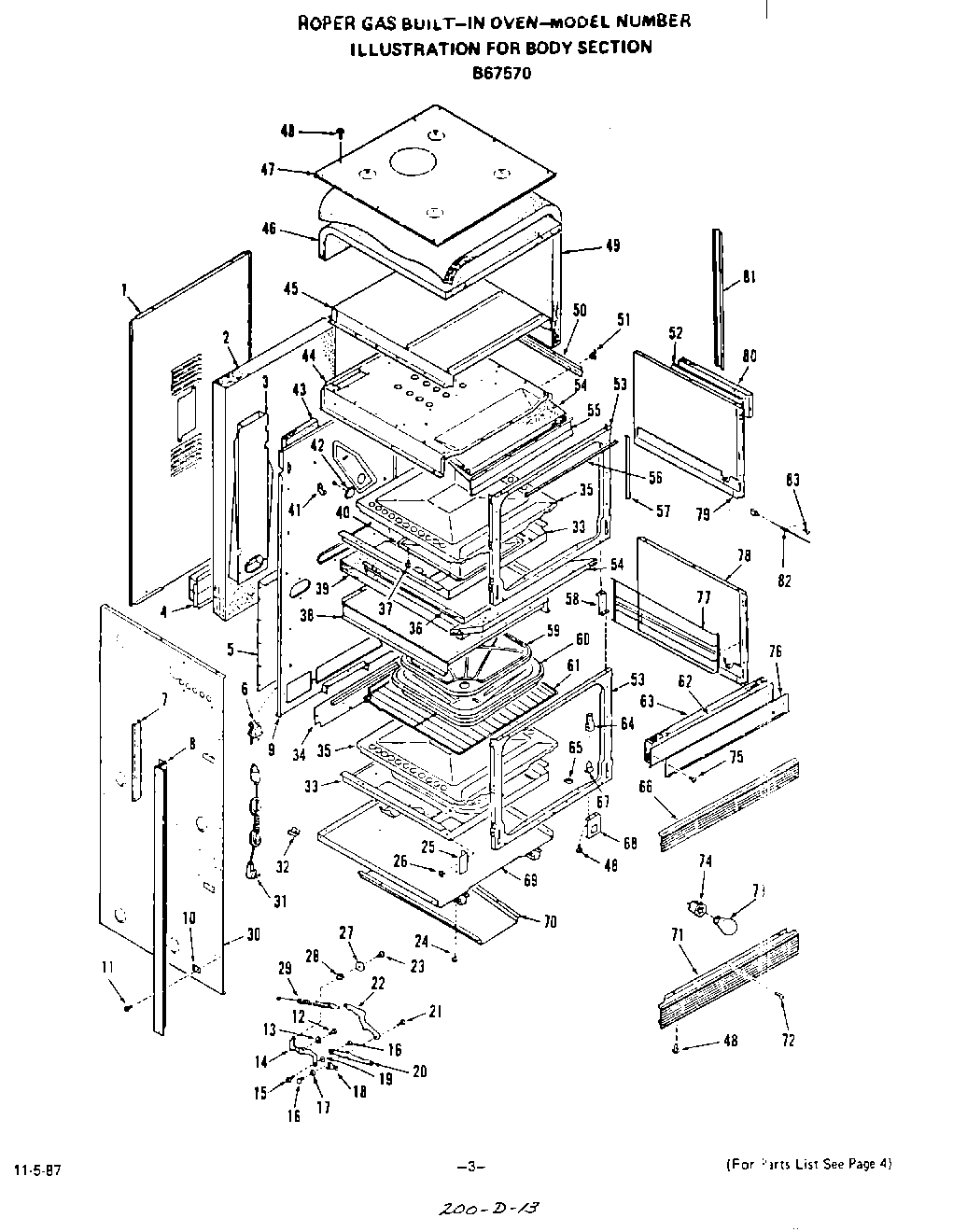

B6757B0 03 – BODY

Products

Position	Product
1	Wire Cover
2	Insulation-Oven Back
3	Vent Box
4	Air Chamber Cover
5	WP4391960 Whirlpool Dryer Heating Element
6	Disconnect
7	Channel Trim – Lt. or Rt.
8	Left
8	Right
8	Side Trim-Front Frame
9	Oven Back
10	Spacer-Side Trim (4 Req)
11	WPL 281160
12	Shoulder Rivet
13	Roller
14	Left (Up. or Lo. Oven)
14	Oven Door Hinge w/Rivet, Sleeve & Washer
14	Right (Up. or Lo. Oven)
15	Hinge Pivot Sleeve
16	Rivet
17	Washer
18	Hinge Latch (Right)
18	Hinge Latch (Left)
18	Hinge Latch
19	Washer
20	Right (Up. or Lo. Oven)
20	Oven Door Arm w/Rivet, Sleeve & Washer
20	Left (Up. or Lo. Oven)
21	Hinge Pivot Sleeve
22	Spring Link
23	Bolt 1/4-20×3/8“
24	Screw 10Ax3/8“
25	Insulation Shield (2 Req)
27	WPL 323451
28	WPL 69459
29	Oven Door Spring (Up or Lo Oven)
30	Body Side
30	Right
30	Left
31	Service Cord
32	WPL 97047
33	Burner Box
34	Cover Plate-Lower Oven
35	Oven Bottom w/Baffle
36	Insulation Retainer
37	Screw 10 – 32 x 7/16“
38	Oven Top-Lower Oven
39	Insulation-Oven Top & Sides (1 Piece)
40	Baffle-Oven Bottom
41	Clip-Thermotat Bulb (2 Req)
42	Plug Button
43	Insulation
44	Oven Top-Upper Oven
45	WPL 313320
46	WPL 313321
47	Oven Cabinet Top
48	WP112432 Whirlpool Nut Assembly
49	Insulation-Oven
51	Clip
53	WPL 331856
54	WPL 97324
55	WPL 331848
56	WPL 338209
57	WPL 338210
58	WPL 279476
59	WPL 331851
60	WPL 331850
61	WPL 279539
62	WPL 303382
63	WPL 306481
64	WPL 327977
65	Speed Nut 10 – 32
66	WPL 338444
67	WPL 323446
68	279457 Whirlpool Dryer Heating Element Wide Spade Connection
69	WPL 338360
70	WPL 338367
71	WPL 338443
72	WPL 231648
73	Oven Lamp Bulb
74	Holder-Oven Light Bulb
75	Screw 6-32×3/8“
76	WPL 303383
77	WPL ARI20621A3
77	WPL 279537
77	WPL 279538
78	WPL ARI20622A2
78	WPL 289827
79	WPL 289826
79	WPL ARI20623A8
79	WPL 289825
80	Insulation (Lt. or Rt.)
81	WPL 323619
82	Sensor
83	Screw
