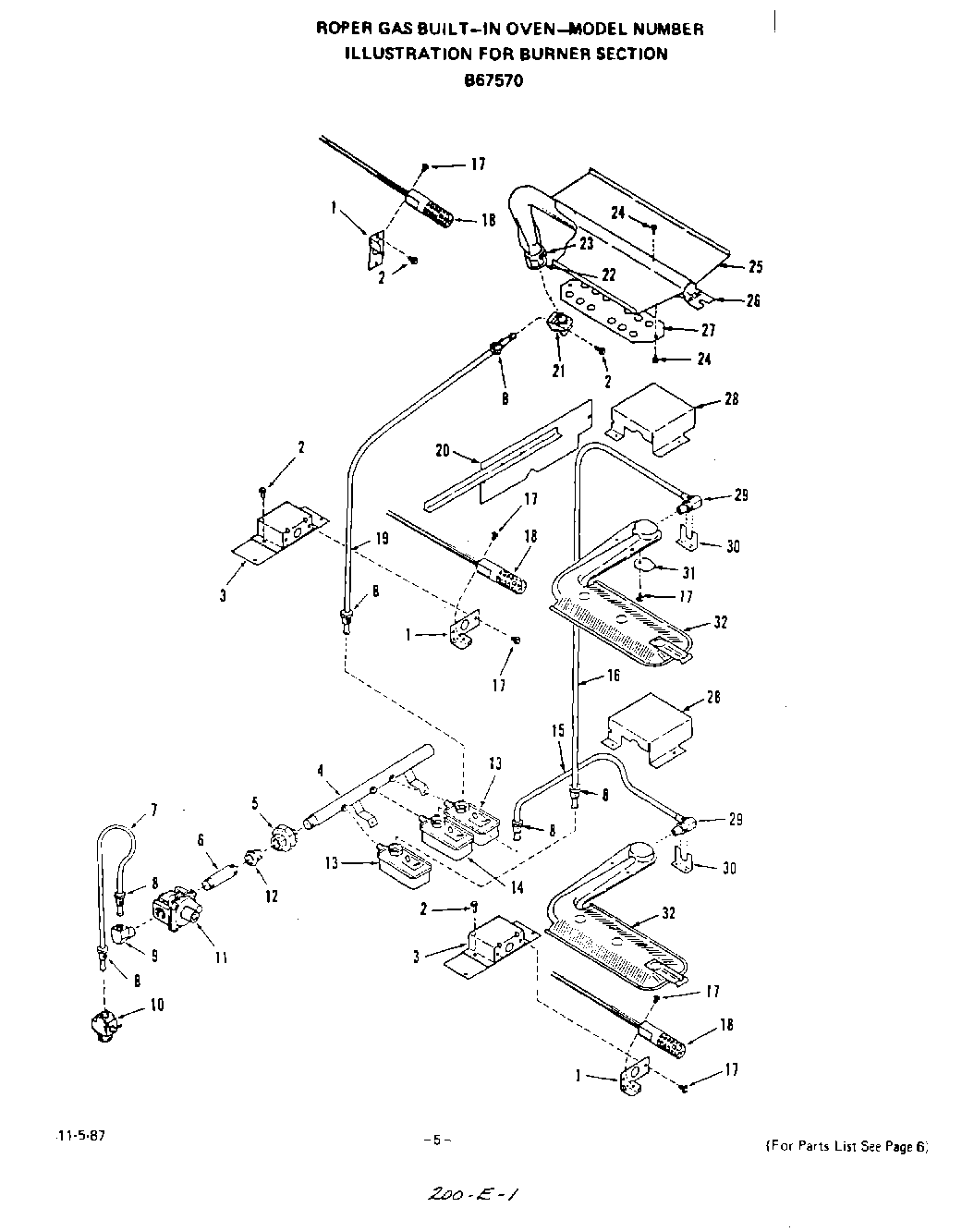

B6757B0 04 – BURNER , LIT/OPTIONAL

Products

Position	Product
	xWire Harness
1	Bracket-Igniter
3	Support-Igniter Asm (Upr)
4	Manifold Pipe w/Bracket
5	Union 1/2“-Std
6	Nipple 3/8“ x 2“
7	Tubing3/8“(Inlet Valve To Pressure Regulator)
8	Inverted Nut 3/8“
9	Elbow 90o
10	Inlet Valve
11	Pressure Regulator
12	Bushing-Reducer
13	Control Valve
14	Control Valve
15	Tubing 3/8“ w/Orifice Fitting (Cont. to Lo. Ov.Orifice)
16	Tubing 3/8“ w/Orifice Fitting (Cont. Valve to Up. Orifice)
17	WPL 316365
18	Igniter – Bake or Broil
19	Tubing 3/8“ (Shut Off to Union)
20	Cover Plate w/Angle
21	Broiler Orifice Fitting
22	Aid Shutter
23	Adjustment Screw-Air Shutter
24	Screw 8 – 32×3/8“
25	Upper Baffle – Broil
26	Broiler Burner (Inc Keys 25 & 27)
27	Lower Baffle-Broiler Burner
28	Cover Box-Venturi
29	Orifice Fitting
30	Bracket-Orifice Fitting
31	Air Shutter
32	Manifold
32	Wire Harness (Sensor)
32	Oven Burner Complete
32	Main
