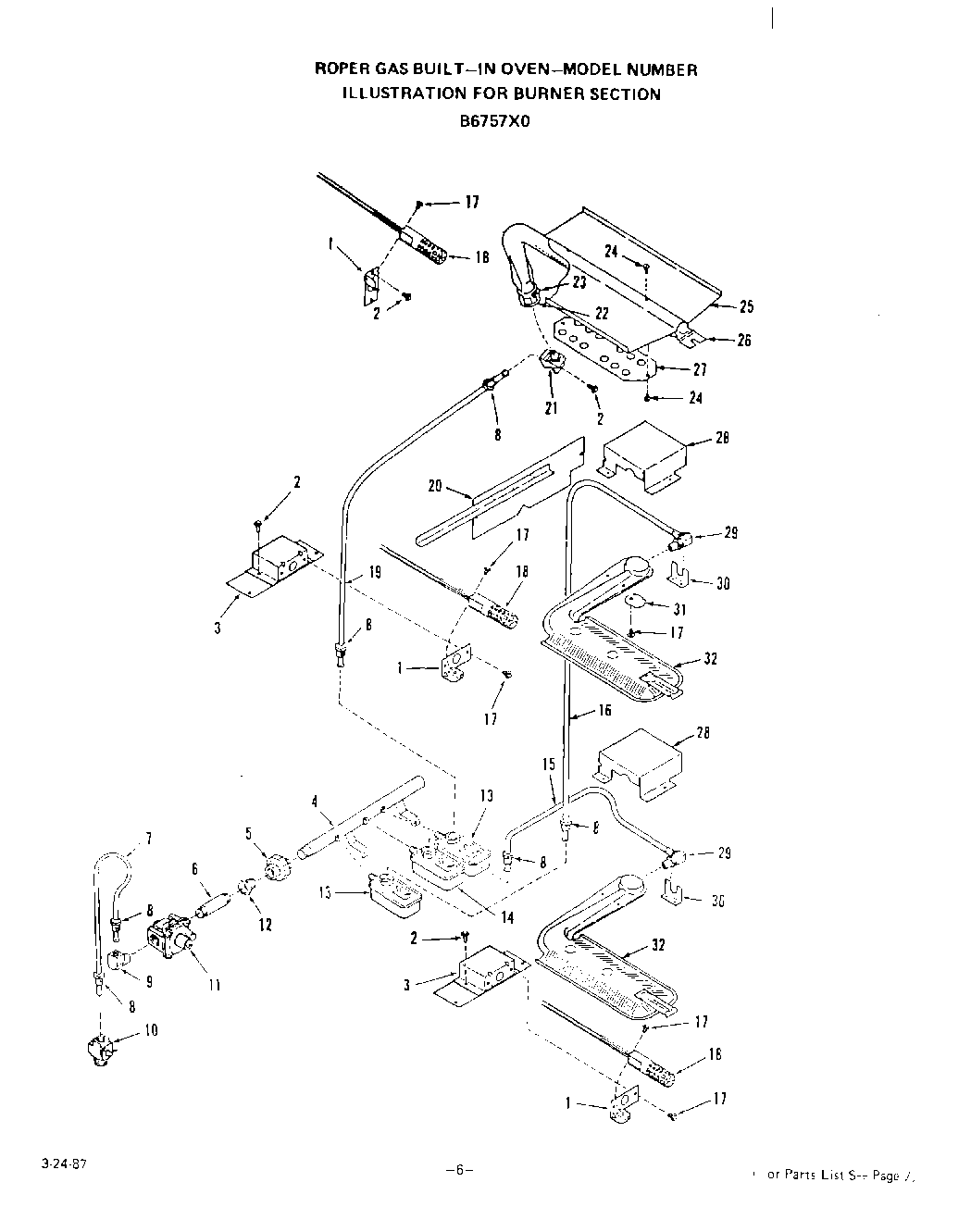

B6757X0 05 – BURNER , LIT/OPTIONAL

Products

Position	Product
	Main
	Wire Harness (Sensor)
	xWire Harness
	Manifold
1	Bracket-Igniter
3	Support-Igniter Asm (Upr)
4	Manifold Pipe w/Bracket
5	Union 1/2``-Std
6	Nipple 3/8`` x 2``
7	Tubing3/8``(Inlet Valve To Pressure Regulator)
8	Inverted Nut 3/8``
9	Elbow 90o
10	Inlet Valve
11	Pressure Regulator
12	Bushing-Reducer
13	Control Valve
14	Control Valve
15	Tubing 3/8`` w/Orifice Fitting (Cont. to Lo. Ov.Orifice)
16	Tubing 3/8`` w/Orifice Fitting (Cont. Valve to Up. Orifice)
17	WPL 316365
18	Igniter - Bake or Broil
19	Tubing 3/8`` (Shut Off to Union)
20	Cover Plate w/Angle
21	Broiler Orifice Fitting
22	Aid Shutter
23	Adjustment Screw-Air Shutter
24	Screw 8 - 32x3/8``
25	Upper Baffle - Broil
26	Broiler Burner (Inc Keys 25 & 27)
27	Lower Baffle-Broiler Burner
28	Cover Box-Venturi
29	Orifice Fitting
30	Bracket-Orifice Fitting
31	Air Shutter
32	Oven Burner Complete
