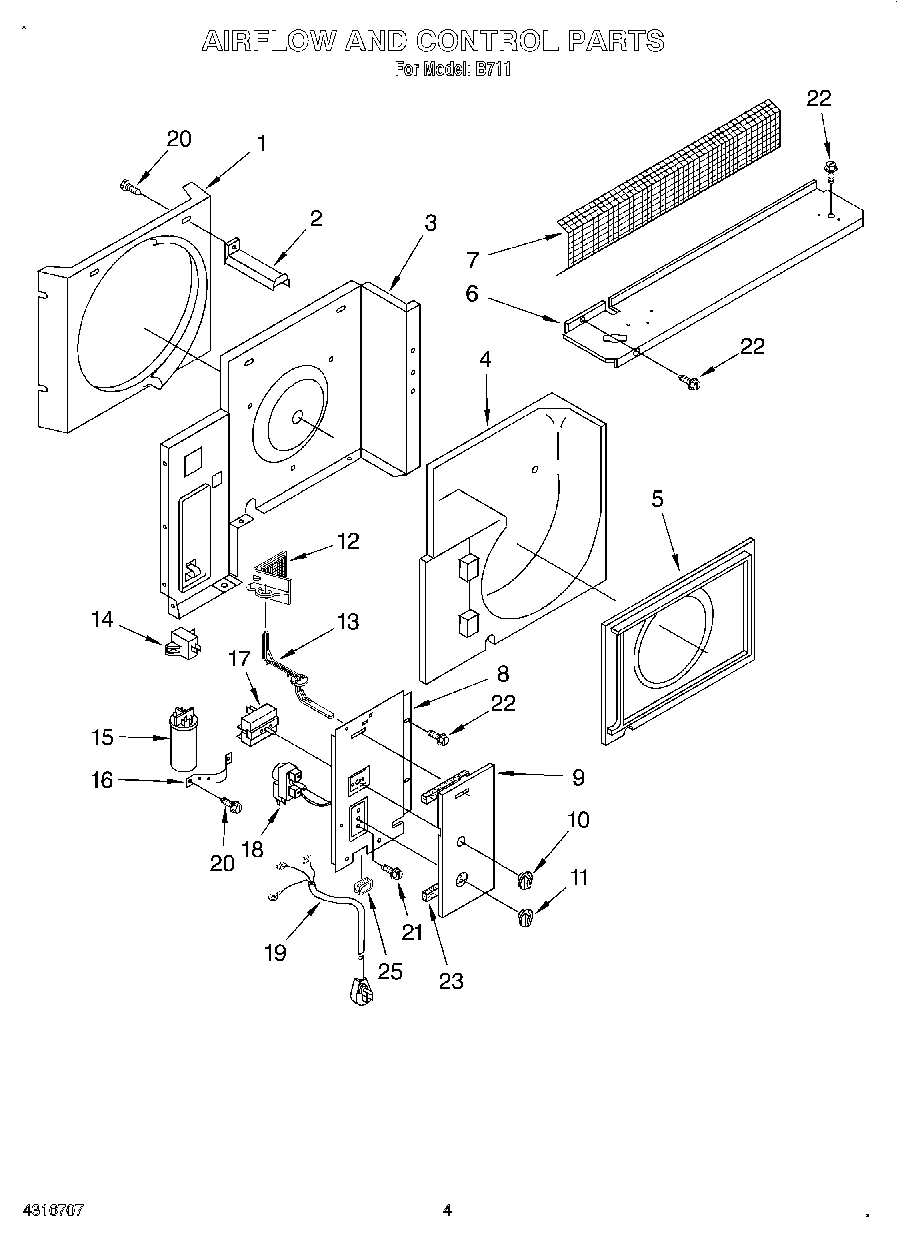

B711 03 – AIR FLOW AND CONTROL

Products

PositionProduct
1Shroud, Condenser
2Support, Unit
3Wall, Dividing
4Scroll, Blower
5Shroud, Evaporator
6Cover, Evaporator
7Screen, Air Discharge
8Panel, Control
9Escutcheon (Also Order No. 23)
10Knob, Fan Switch
11Knob, Thermostat
12Door, Exhaust
13Actuator, Door
14Assist, Start
15Capacitor
16Strap, Capacitor
17Switch, Rotary
18Thermostat
19Cord, Power
20Screw No.8 x 1/2
21Screw 8-32 x 1/4
22Screw
23WP854334 Whirlpool Air Conditioner Sealing Strip
25Relief, Strain
