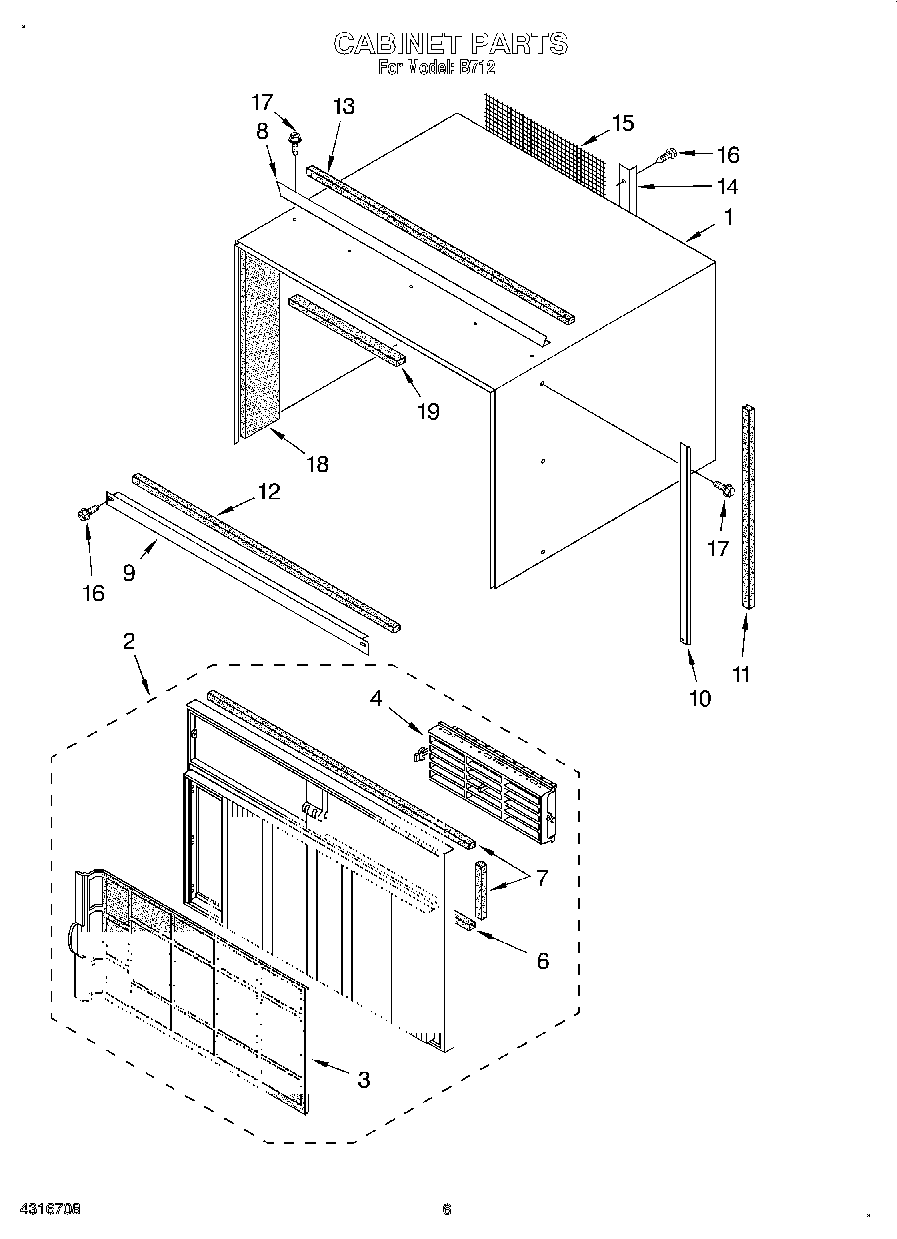

B712 04 – CABINET

Products

Position	Product
1	Cabinet Assembly (Includes Insulation & Item No. 15)
2	Front Assembly
3	Filter, Air
4	Louver Assembly (Not Serviced Separately)
6	Seal, Front
7	Seal, Front
8	Frame and Foam Assembly (Top)
9	Frame and Foam Assembly (Bottom)
10	Frame and Foam Assembly (Side) ((Right Side))
10	Frame and Foam Assembly (Side) ((Left Side))
12	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Capacitor
15	Guard, Wire
16	Screw
17	Screw
18	Insulation, Cabinet (Side) ((Right Side))
18	Insulation, Cabinet (Side) ((Left Side))
19	Sleeve, Cabinet
19	Seal, Strip (Top Rear)
