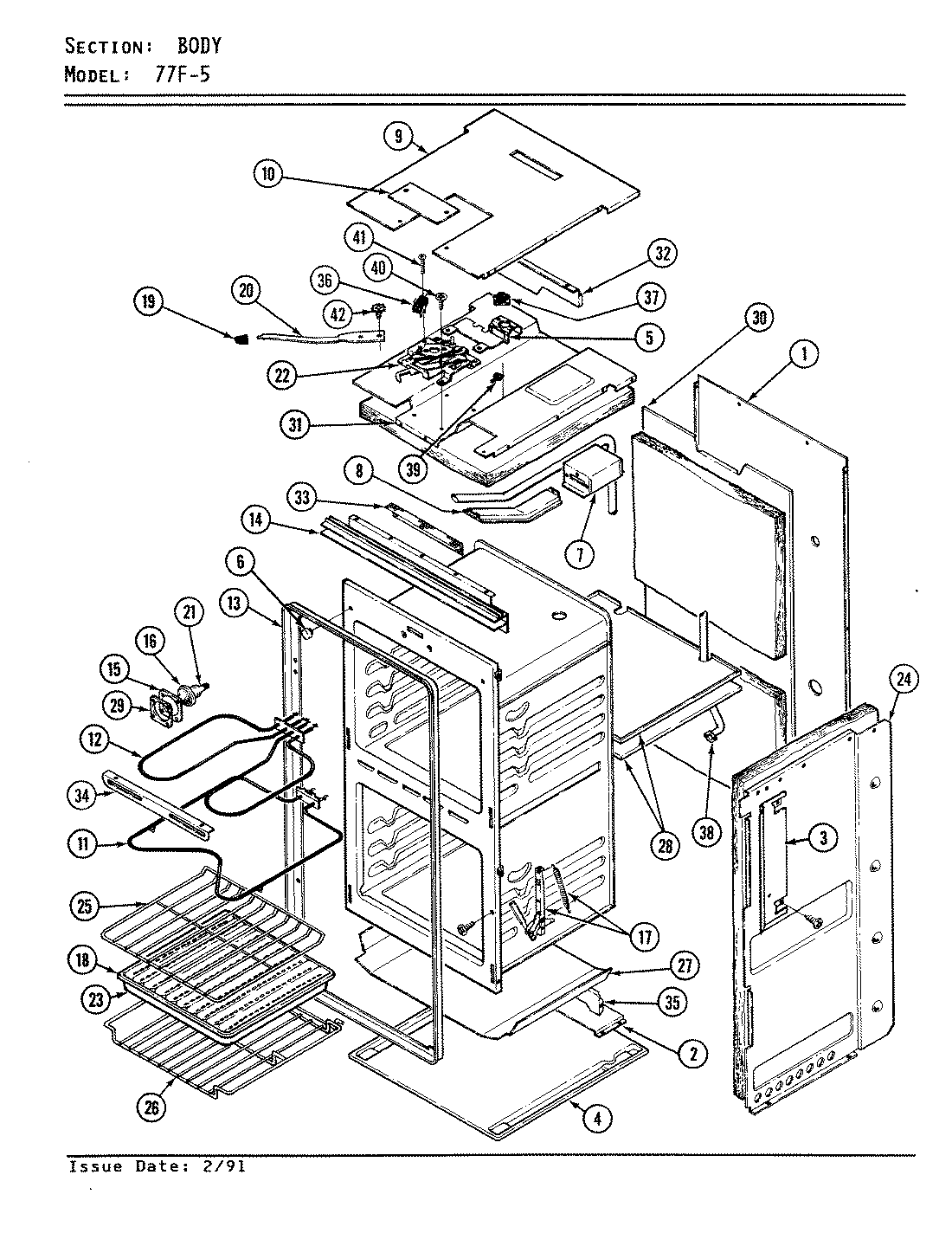

| 1 | MAY 4002F143-51 |
| 2 | MAY 3601F005-80 |
| 3 | MAY 3601F130-51 |
| 4 | MAY 4003A011-80 |
| 4 | MAY 2205F004-15 |
| 4 | MAY 2205F003-15 |
| 4 | MAY 7401P003-60 |
| 4 | MAY 2205F003-19 |
| 4 | MAY 2205F004-19 |
| 5 | MAY 3801F127-51 |
| 5 | MAY 4006W046-45 |
| 6 | MAY 3801F128-45 |
| 6 | MAY 3801F024-51 |
| 7 | MAY 8003P009-60 |
| 7 | MAY 8003P002-60 |
| 8 | WP7112P004-60 Whirlpool Thermal Clip |
| 8 | MAY 7112P003-60 |
| 8 | MAY 3818W002-15 |
| 9 | MAY 4005F202-51 |
| 9 | MAY 4005F011-35 |
| 10 | MAY 4005F160-45 |
| 11 | MAY 7406P013-60 |
| 11 | MAY 7406P075-60 |
| 12 | MAY 7406P003-60 |
| 12 | MAY 7406P076-60 |
| 13 | MAY 7756P033-60 |
| 13 | MAY 7750P027-60 |
| 14 | MAY 7201P003-60 |
| 14 | MAY 7756P032-60 |
| 15 | MAY 7201P016-60 |
| 15 | MAY 7201P015-60 |
| 15 | MAY 7201P014-60 |
| 16 | MAY 7902P057-60 |
| 17 | MAY 7106A020-60 |
| 17 | MAY 4001F012-51 |
| 17 | MAY 7106P037-60 |
| 17 | MAY 7002P094-60 |
| 17 | MAY 7106A019-60 |
| 18 | MAY Y3413F01619 |
| 18 | MAY 3413F002-19 |
| 19 | MAY 7701P072-60 |
| 20 | MAY 8009P011-60 |
| 21 | MAY 7407P026-60 |
| 22 | MAY 7003P001-60 |
| 22 | 8002P072-60 Whirlpool Door Latch |
| 23 | MAY 3401F004-19 |
| 23 | MAY Y3401F02019 |
| 24 | MAY 2618F088-51 |
| 24 | MAY 2618F089-51 |
| 24 | MAY 2618F056-51 |
| 24 | MAY 2618F055-51 |
| 25 | MAY 7801P005-60 |
| 26 | MAY 7408P001-60 |
| 26 | MAY 7801P007-60 |
| 27 | MAY 3804W034-51 |
| 28 | MAY 3804F054-51 |
| 29 | MAY 3804F011-45 |
| 30 | MAY 3804F101-51 |
| 31 | MAY Y7101P25460 |
| 31 | MAY 3804F053-51 |
| 32 | MAY 3604F101-80 |
| 32 | MAY 3604F037-44 |
| 33 | MAY 3604F048-80 |
| 34 | MAY 3807F176-15 |
| 34 | MAY 7101P084-60 |
| 35 | MAY 3807F135-80 |
| 36 | MAY 7403P007-60 |
| 37 | MAY 7403P215-60 |
| 38 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 39 | MAY 7505P018-60 |
| 40 | MAY 7101P061-60 |
| 41 | MAY 7101P035-60 |
| 42 | WP4159193 Whirlpool Screw |
