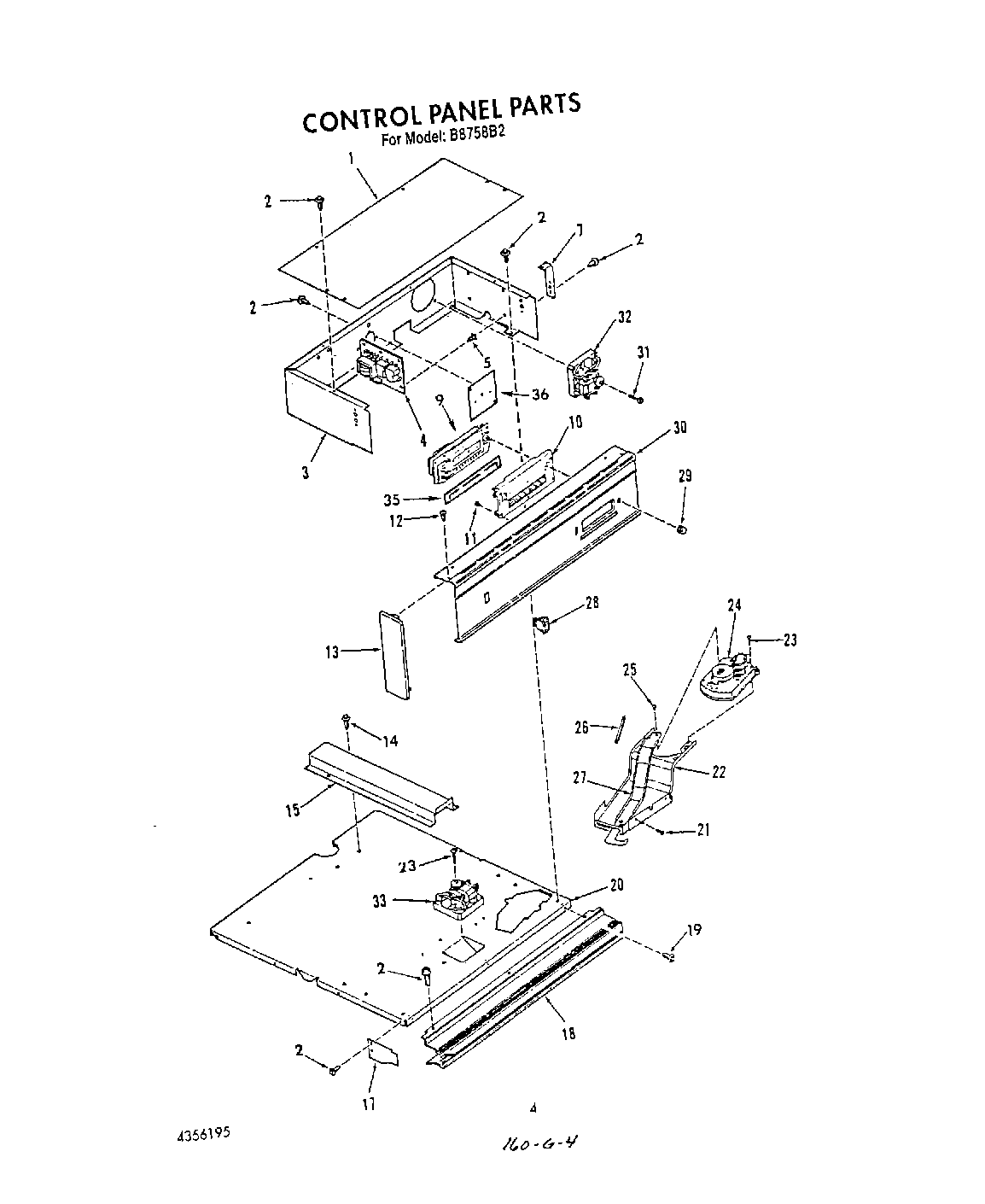

B8758B2 03 – CONTROL PANEL , LIT/OPTIONAL

B8758B2 03 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

B8758B2 03 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
1	Cover
2	W10850756 Whirlpool Screw
3	Housing, Control
4	Relay, Circuit Board
5	Spacer
7	Bracket
9	Clock/Oven Control
10	Clock Lens Asm.
11	Screw
12	Screw, No.10-32 x 1/2
13	End Cap (Left)
13	End Cap (Right)
14	SCREW
15	Cover, Wire
17	Heat Shield, (Lt/Rt)
18	Trim-Control Panel
19	Screw, Trim
20	Top, Cabinet
21	Screw No.10-32×1/2
22	Plate, Door Lock
23	Screw No.8-32×55/64
24	Lock Motor Asm.
25	Screw, No.8-32 x 3/8
26	Spring, Lock
27	Lock Lever Asm.
28	WP4314961 Whirlpool Lite Switch
29	Knob, Clock
30	Panel, Control
31	Screw No.10-32×1/4
32	Fan Assembly
33	Fan Assembly
35	Brace, Clock Stiffener
36	Cover, Plate
36	Wire Harness (Fan)
36	WP285432 Whirlpool Terminal
36	WPL 4337736
36	Flag Terminal
36	Wire Harness (3/16“)
36	Sensor
36	Eyelet Terminal
