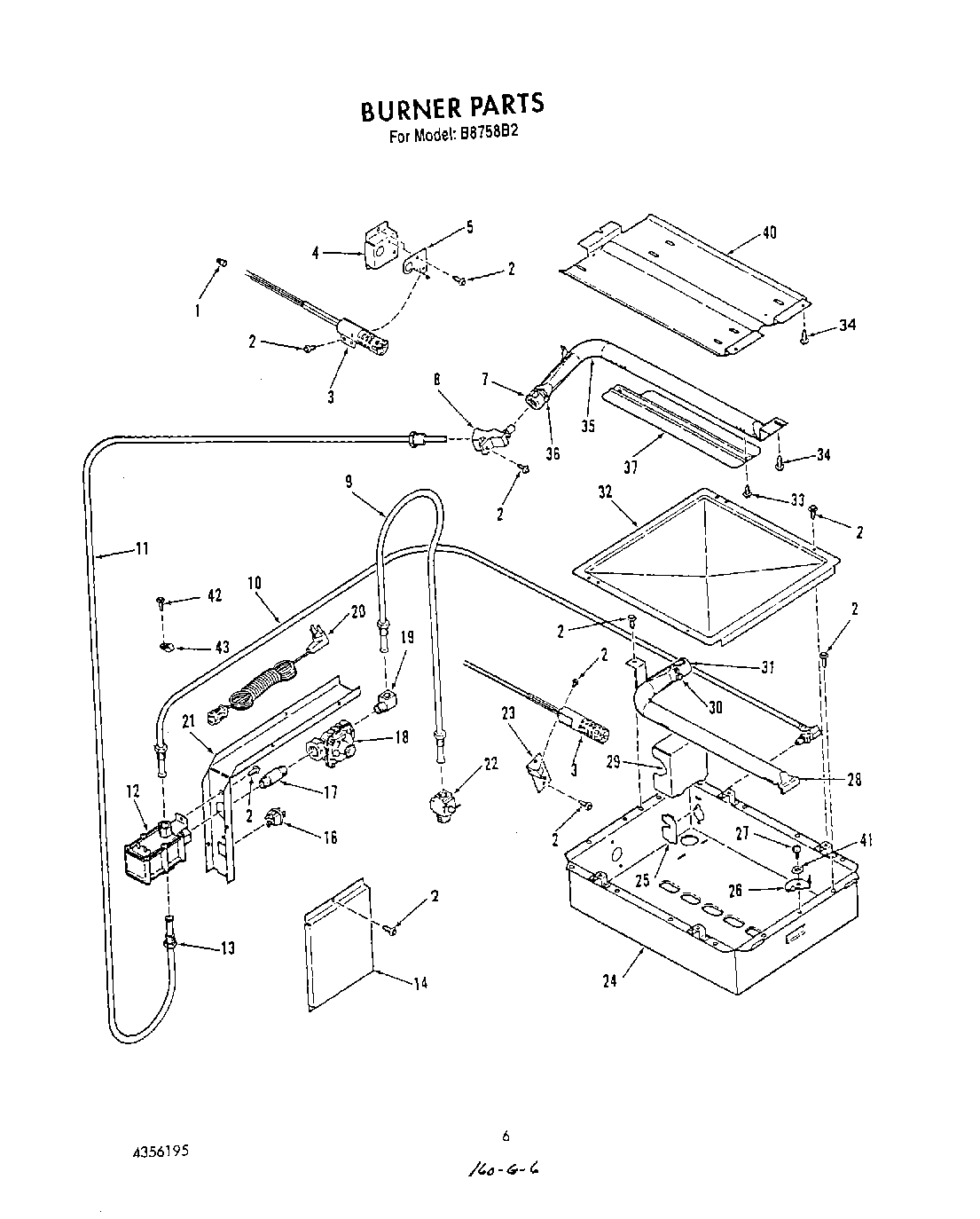

B8758B2 04 – BURNER

Products

Position	Product
1	WP4323866 Whirlpool Connector
2	SCREW
3	Ignitor-Bake/Broil
4	Cover, Igniter
5	Bracket, Broiler Burner Igniter
7	Shutter, Air
8	Orifice, Broiler
9	Tubing
10	Tubing-Oven Burner
11	Tubing 3/8“(Valve-Broiler Burner)
12	Valve, Control
13	Nut, Inverted 3/8
14	Cover, Valve
16	Disconnect
17	Fitting, 3/8 x 2
18	Regulator
19	90o Elbow
20	Power Service Cord
21	Cover, Wire
22	Valve, Inlet
23	Bracket, Igniter
24	Box, Burner
25	Plate, Orifice Mounting
26	Latch, Burner Box Bottom
27	Screw, Shoulder
28	Burner, Oven
29	Shield, Orifice Fitting
30	Adjusting Screw, Air Shutter
31	Shutter, Air
32	Bottom, Baffle
33	WP489128 Whirlpool Refrigerator Screw
34	WP308685 Whirlpool Microwave Screw
35	Burner, Broiler
36	Screw, Adjustment-Air Shutter
37	Baffle, Burner
40	Baffle, Broiler
41	Washer, Spring
42	WP999367 Whirlpool Refrigerator Screw
43	Clip (For No.1)
