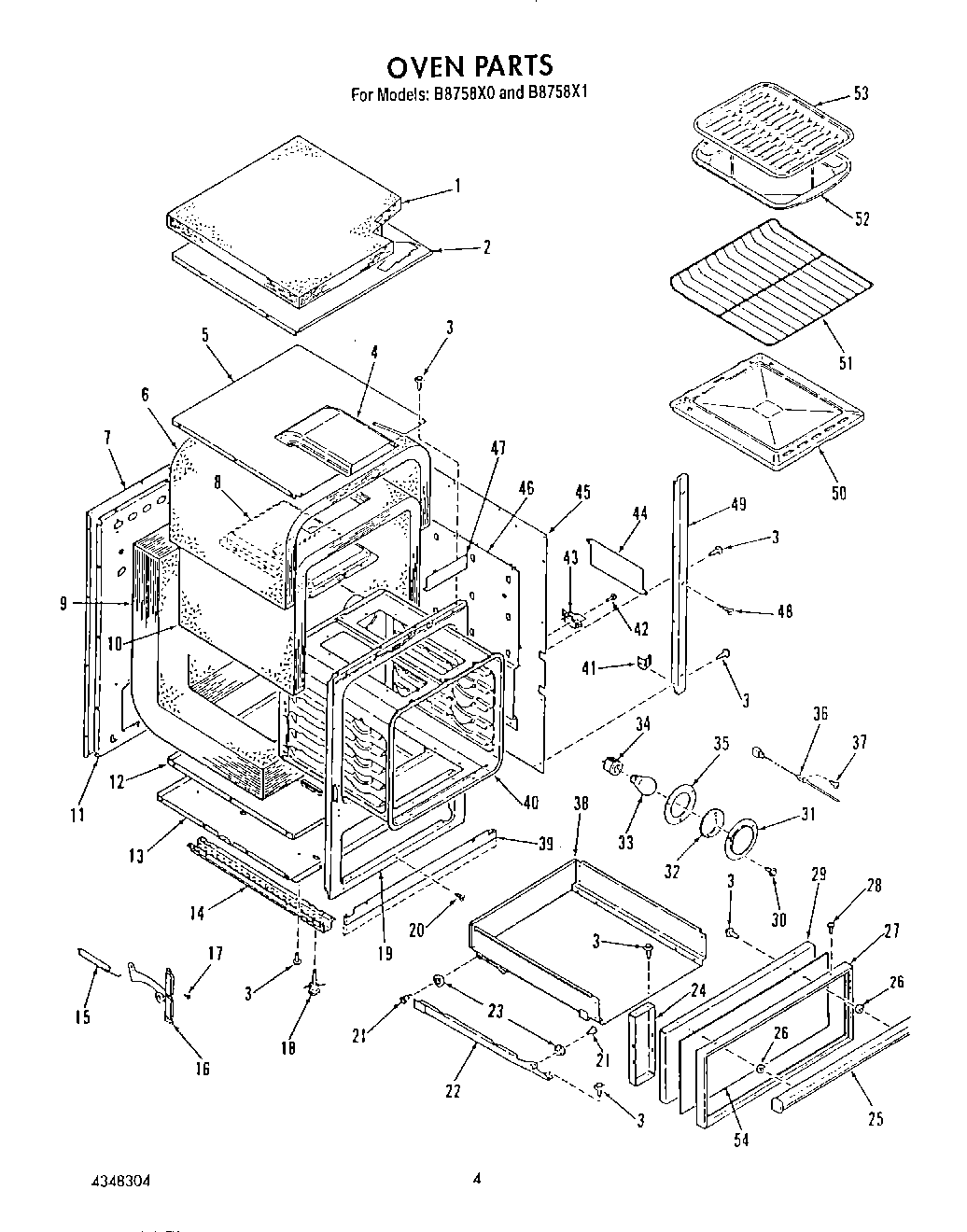

| 1 | Insulation |
| 2 | Retainer-Oven Top |
| 3 | W10850756 Whirlpool Screw |
| 4 | Deflector, Flue |
| 5 | Retainer-Top Insulation |
| 6 | Insulation-Top & Outer Sides |
| 7 | Rear-Oven |
| 8 | Flue |
| 9 | Insulation-Back & Bottom |
| 11 | Retainer-Rear Insulation |
| 12 | Retainer-Bottom Insulation |
| 13 | Bottom |
| 14 | Channel, Bottom Cabinet (Lt/Rt) |
| 15 | Spring, Oven Door (Lt/Rt) (Lower Oven) |
| 16 | Hinge Assembly (Left) |
| 16 | Hinge Assembly (Right) |
| 17 | Screw |
| 18 | Leveler Leg |
| 19 | Frame, Front |
| 20 | Screw, Trim |
| 21 | Rivet |
| 22 | Guide, Drawer (Left) |
| 22 | Guide, Drawer (Right) |
| 23 | Roller |
| 24 | Liner-Lower Panel |
| 25 | Handle |
| 26 | Spacer, Dr. Handle |
| 27 | Frame-Lower Panel |
| 28 | Screw No.6-20x5/16 |
| 29 | Panel-Lower Front |
| 30 | WP308685 Whirlpool Microwave Screw |
| 31 | Retainer, Lens |
| 32 | Lens, Oven Light |
| 33 | RANGE ONLY 40W 120V APPL BULB |
| 34 | W10856866 Whirlpool Light Socket |
| 35 | Gasket, Lens |
| 36 | Sensor |
| 37 | Screw |
| 38 | Drawer, Storage |
| 39 | Front Lower Trim (7/8`` height) |
| 39 | Trim-Lower Front (1 7/16`` Height) |
| 40 | Oven |
| 41 | Spacer-Front Trim |
| 42 | Screw No.6-32x7/8 |
| 43 | Switch |
| 44 | Cover Plate (4) |
| 45 | Side, Body |
| 46 | Retainer-Side Insulation |
| 47 | Barrier, Lock |
| 48 | Screw |
| 49 | Trim, Side |
| 50 | Bottom, Oven |
| 51 | WPL 4335557 |
| 53 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 54 | Overlay, Lower Panel |
