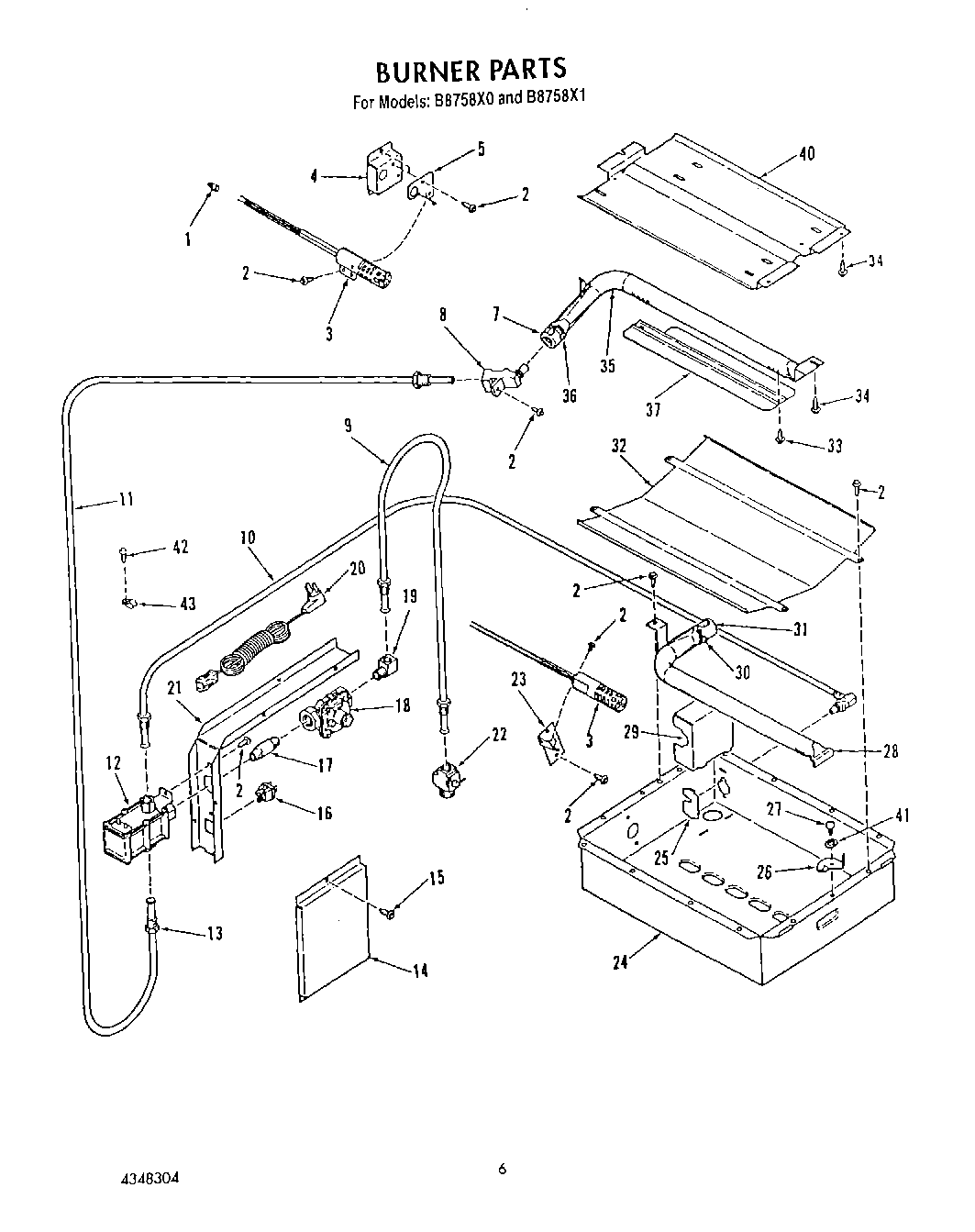

| 1 | WP4323866 Whirlpool Connector |
| 2 | SCREW |
| 3 | Ignitor-Bake/Broil |
| 4 | Cover, Igniter |
| 5 | Bracket, Broiler Burner Igniter |
| 7 | Shutter, Air |
| 8 | Orifice, Broiler |
| 9 | Tubing |
| 10 | Tubing-Oven Burner |
| 11 | Tubing 3/8``(Valve-Broiler Burner) |
| 12 | Valve, Control |
| 13 | Nut, Inverted 3/8 |
| 14 | Cover, Valve |
| 15 | W10850756 Whirlpool Screw |
| 16 | Disconnect |
| 17 | Fitting, 3/8 x 2 |
| 18 | Regulator |
| 19 | 90o Elbow |
| 20 | Power Service Cord |
| 21 | Cover, Wire |
| 22 | Valve, Inlet |
| 23 | Bracket, Igniter |
| 24 | Box, Burner |
| 25 | Plate, Orifice Mounting |
| 26 | Latch, Burner Box Bottom |
| 27 | Screw, Shoulder |
| 28 | Burner, Oven |
| 29 | Shield, Orifice Fitting |
| 30 | Adjusting Screw, Air Shutter |
| 31 | Shutter, Air |
| 32 | Bottom, Baffle |
| 33 | WP489128 Whirlpool Refrigerator Screw |
| 34 | WP308685 Whirlpool Microwave Screw |
| 35 | Burner, Broiler |
| 36 | Screw, Adjustment-Air Shutter |
| 37 | Baffle, Burner |
| 40 | Baffle, Broiler |
| 41 | Washer, Spring |
| 42 | WP999367 Whirlpool Refrigerator Screw |
| 43 | Clip (For No.1) |
