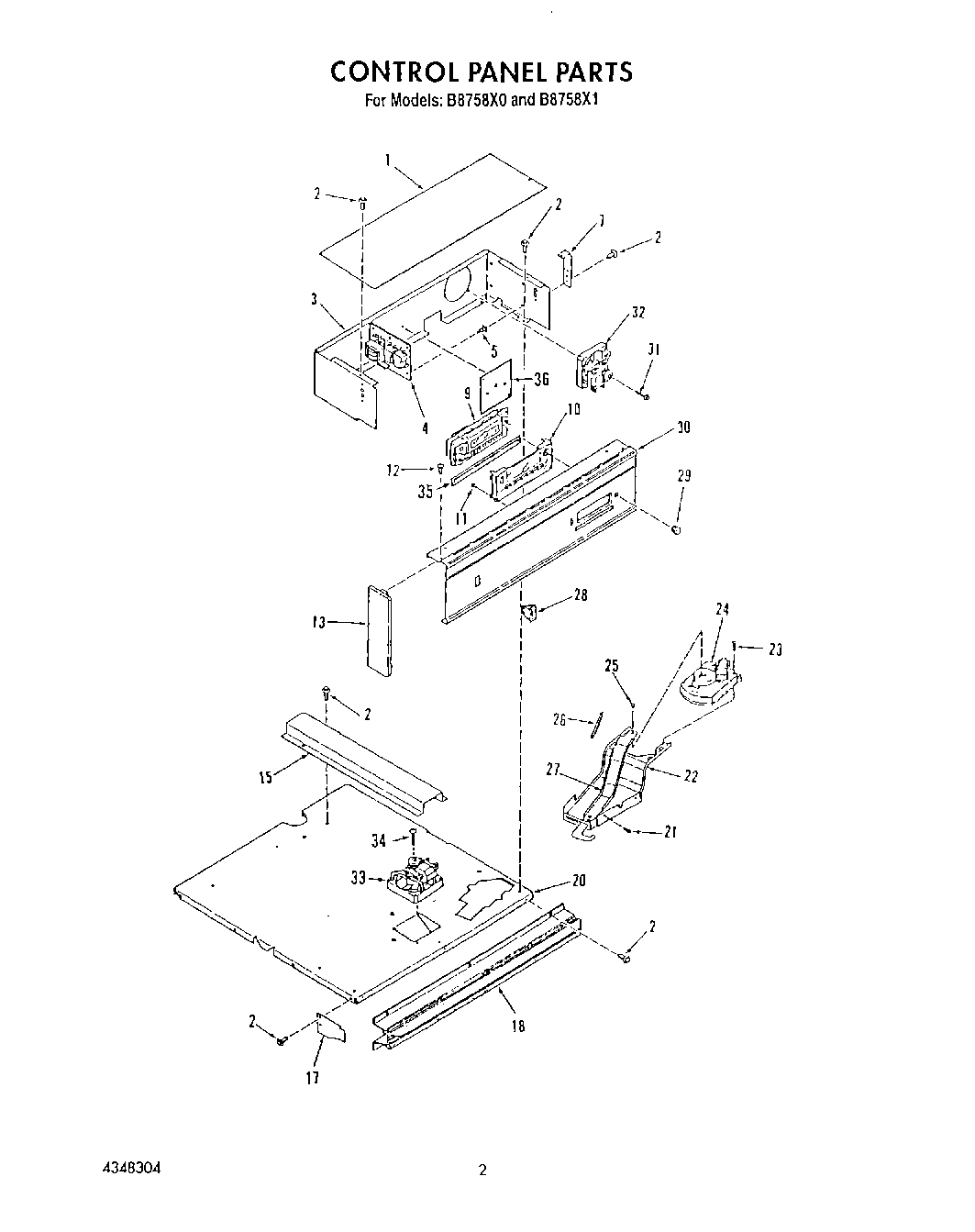

B8758X1 02 – CONTROL PANELadmin2025-04-26T12:04:54+00:00B8758X1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Cover |
| 2 | W10850756 Whirlpool Screw |
| 3 | Housing, Control |
| 4 | Circuit Board (B8758X0 Model) |
| 4 | Relay, Circuit Board |
| 5 | Spacer |
| 7 | Bracket |
| 9 | Lens, Clock/Oven Control |
| 9 | xLens, Clock/Oven Control |
| 9 | Clock (B8758X1 Model) |
| 9 | Clock/Oven Control w/Lens |
| 10 | Lens, Clock |
| 11 | Screw |
| 12 | Screw, No.10-32 x 1/2 |
| 13 | End Cap (Right) |
| 13 | End Cap (Left) |
| 15 | Cover, Wire |
| 17 | Heat Shield, (Lt/Rt) |
| 18 | Trim-Control Panel |
| 20 | Top, Cabinet |
| 21 | Screw No.10-32x1/2 |
| 22 | Plate, Door Lock |
| 23 | Screw No.8-32x55/64 |
| 24 | Lock Motor Asm. |
| 25 | Screw, No.8-32 x 3/8 |
| 26 | Spring, Lock |
| 27 | Lock Lever Asm. |
| 28 | WP4314961 Whirlpool Lite Switch |
| 29 | Control Knob, Clock/Oven |
| 29 | Knob, Clock |
| 30 | Panel, Control |
| 31 | Screw No.10-32x1/4 |
| 32 | Fan Assembly |
| 33 | Fan Assembly |
| 34 | Screw No.6-32x7/8 |
| 35 | Clock Support |
| 36 | Cover, Plate |
