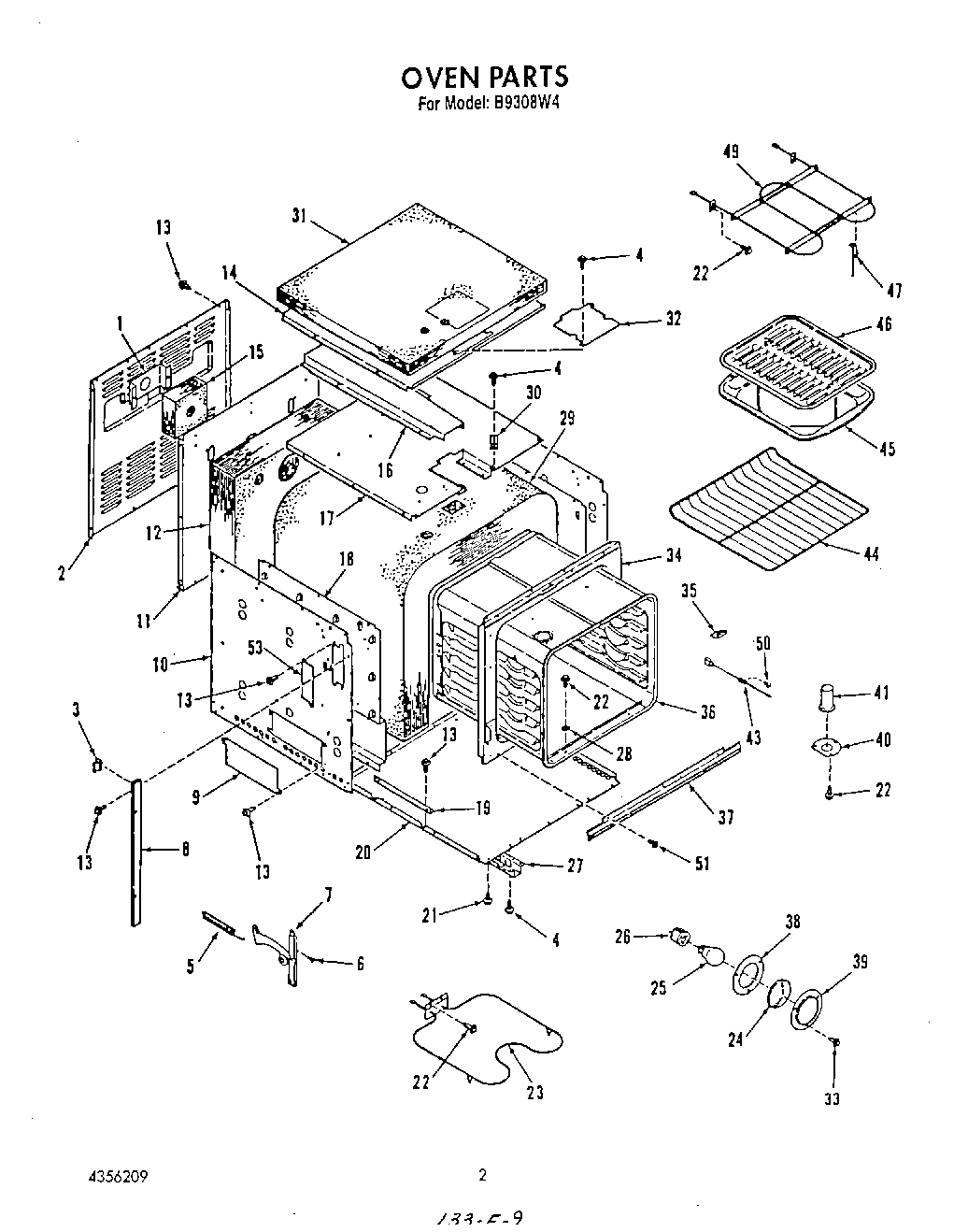

| 1 | Retainer, Oven Lamp Insulation |
| 2 | Back, Cabinet |
| 3 | Spacer (Mdl. B9308W3) |
| 3 | Spacer (6) |
| 4 | W10850756 Whirlpool Screw |
| 5 | Spring, Oven Door (Lt/Rt) (Lower Oven) |
| 6 | Screw |
| 7 | Hinge (Right (2)) |
| 7 | Hinge (Left (2)) |
| 8 | Side Trim (Lt/Rt) (Mdl. B9308W3) |
| 8 | Side Trim (Lt/Rt) (Mdl. B9308B3) |
| 9 | Cover Plate (4) |
| 10 | Cabinet Side (Lt/Rt) |
| 11 | Cover, Rear |
| 12 | WPL 4337724 |
| 14 | Retainer, Cabinet Top Insulation |
| 15 | Insulation, Lamp (Upper/Lower) |
| 16 | Vent Box |
| 17 | Retainer, Oven Top Insulation |
| 18 | Retainer, Oven Side Insulation |
| 19 | Bracket, Retainer (Lt/Rt) |
| 20 | Bottom, Cabinet |
| 21 | Screw No.10-32x1/4 |
| 22 | Screw, No.10-32 x 17/32 |
| 23 | WPL 4335541 |
| 24 | Lens, Oven Light |
| 25 | RANGE ONLY 40W 120V APPL BULB |
| 26 | W10856866 Whirlpool Light Socket |
| 27 | Channel, Bottom Cabinet (Lt/Rt) |
| 28 | Washer |
| 29 | Insulation-Top & Sides (1 Pc) |
| 30 | Bracket (2) |
| 31 | Insulation-Top |
| 32 | Lock Cover Plate |
| 33 | WP308685 Whirlpool Microwave Screw |
| 34 | Front Frame (Upper Oven) |
| 35 | Cover |
| 36 | Oven Body (Upper Oven) |
| 37 | Trim, Lower (Mdl. B9308W3) |
| 37 | Tr |
| 38 | Gasket, Lens |
| 39 | Retainer, Lens |
| 40 | WPL 4335624 |
| 41 | Vent Tube |
| 43 | Sensor |
| 44 | WPL 4335557 |
| 46 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 47 | WPL 4334358 |
| 49 | WPL 4335542 |
| 50 | Screw |
| 51 | Trim Screw (Mdl. B9308W3) |
| 51 | Screw, Trim |
| 53 | WP285432 Whirlpool Terminal |
| 53 | Faston Terminal, (Thermal Fuse) |
| 53 | Wire Harness (Sensor) |
| 53 | WPL 4338202 |
| 53 | Flag Terminal |
| 53 | Wire Harness (3/16``) |
