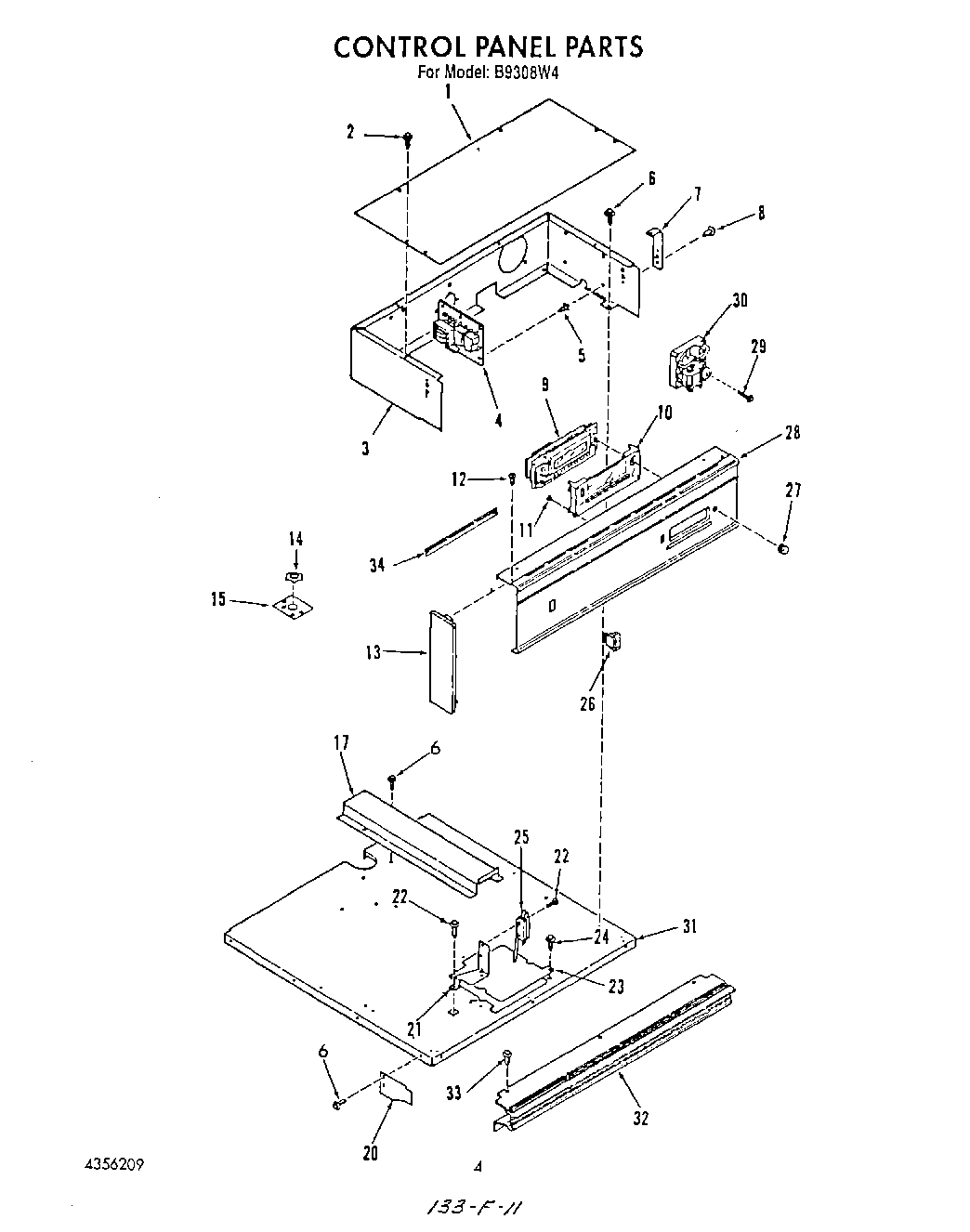

B9308^4 03 – CONTROL PANEL

Products

Position	Product
1	Cover
2	W10850756 Whirlpool Screw
3	Housing, Control
4	Circuit Board
5	Spacer
7	Bracket
9	Control, Clock/Oven
10	Clock Lens Asm.
11	Screw
12	Screw, No.10-32 x 1/2
12	Screw
13	End Cap (Right-White)
13	End Cap (Left-White)
13	End Cap (Left)
13	End Cap (Right)
14	Nut, Lock
15	Plate, Service
17	Cover, Wire
20	Heat Shield, (Lt/Rt)
21	Bracket, Micro Switch
22	Screw No.6-32×7/8
23	Lock Cover Plate
25	Micro Switch, Lock
26	Switch (White Model)
26	WP4314961 Whirlpool Lite Switch
27	Knob, Clock (White Model)
27	Knob, Clock
28	Control Panel (Mdl. B9308W3)
28	Panel, Control
29	Screw No.10-32×1/4
30	Fan Assembly
31	Top, Cabinet
32	Trim, Control Panel
32	Trim-Control Panel (Mdl. B9308W3)
33	Screw, Trim
33	Screw (Mdl. B9308W3)
34	Clock Support
