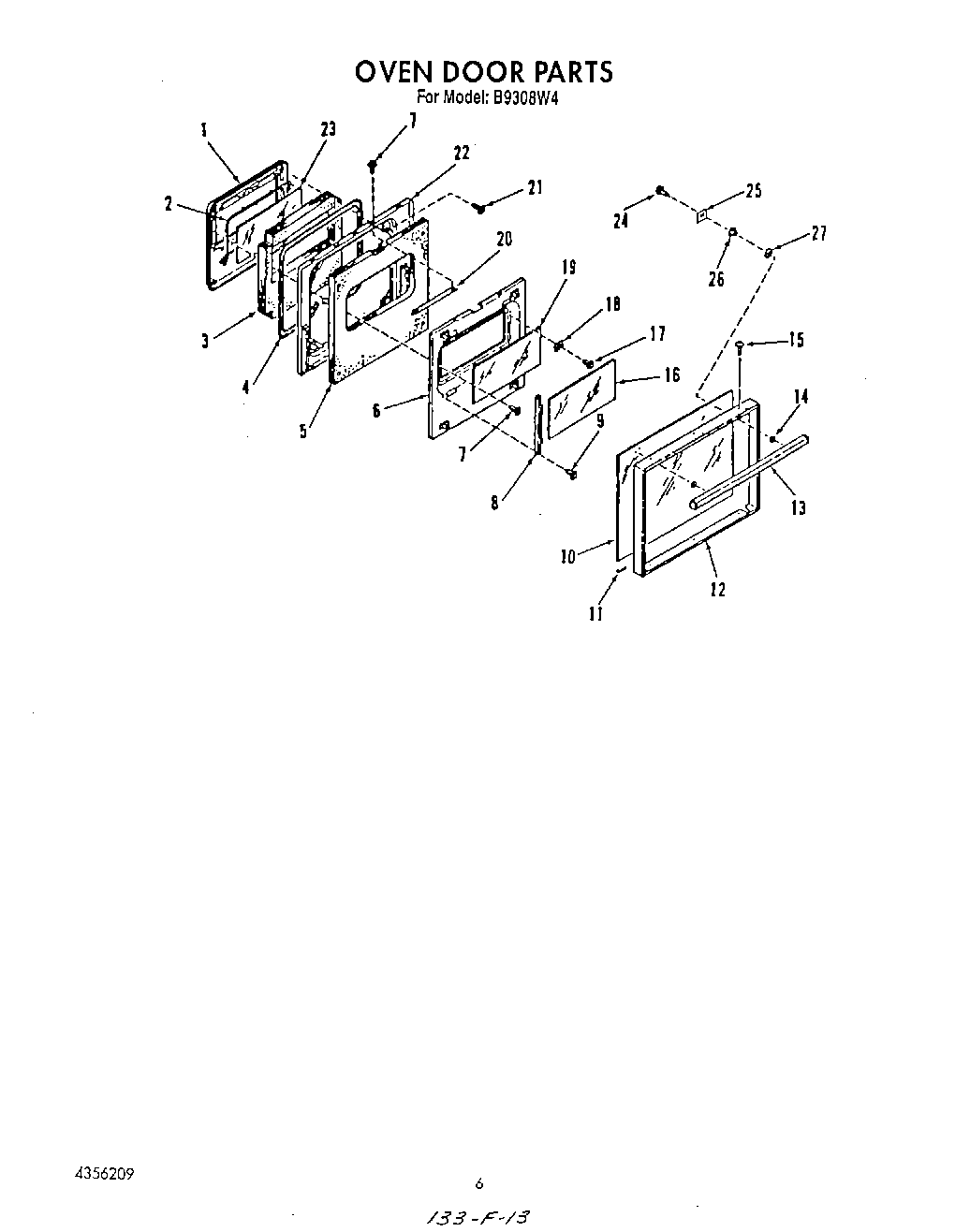

| 1 | Plug-Inner Lining |
| 2 | Seal, Inner Glass |
| 3 | Insulation |
| 4 | Gasket, Oven Door |
| 5 | Insulation |
| 6 | Retainer, Insulation |
| 8 | Retainer, Door Glass (Lt/Rt) |
| 10 | Door Glass, Outer |
| 10 | Glass, Outer Door (Mdl. B9308W3) |
| 11 | Cushion |
| 12 | Door Frame (Mdl. B9308W3) |
| 12 | Door Frame |
| 13 | Handle, Door (Mdl. B9308W3) |
| 13 | Handle |
| 14 | Spacer, White |
| 14 | Spacer, Dr. Handle |
| 15 | Screw 6-20x3/8 |
| 15 | Screw 6-20x3/8 (White Model) |
| 16 | Glass, Intermediate |
| 17 | Screw, No.10-32 x 17/32 |
| 18 | Retainer, Glass |
| 19 | Glass, Inner |
| 20 | Stiffener, Lining |
| 21 | W10850756 Whirlpool Screw |
| 22 | Lining |
| 23 | Glass-Inner Door |
| 24 | Screw, No.10-32 x 3/4 |
| 25 | Retainer |
| 26 | Spacer, Glass Door |
| 27 | Washer, Fiber |
