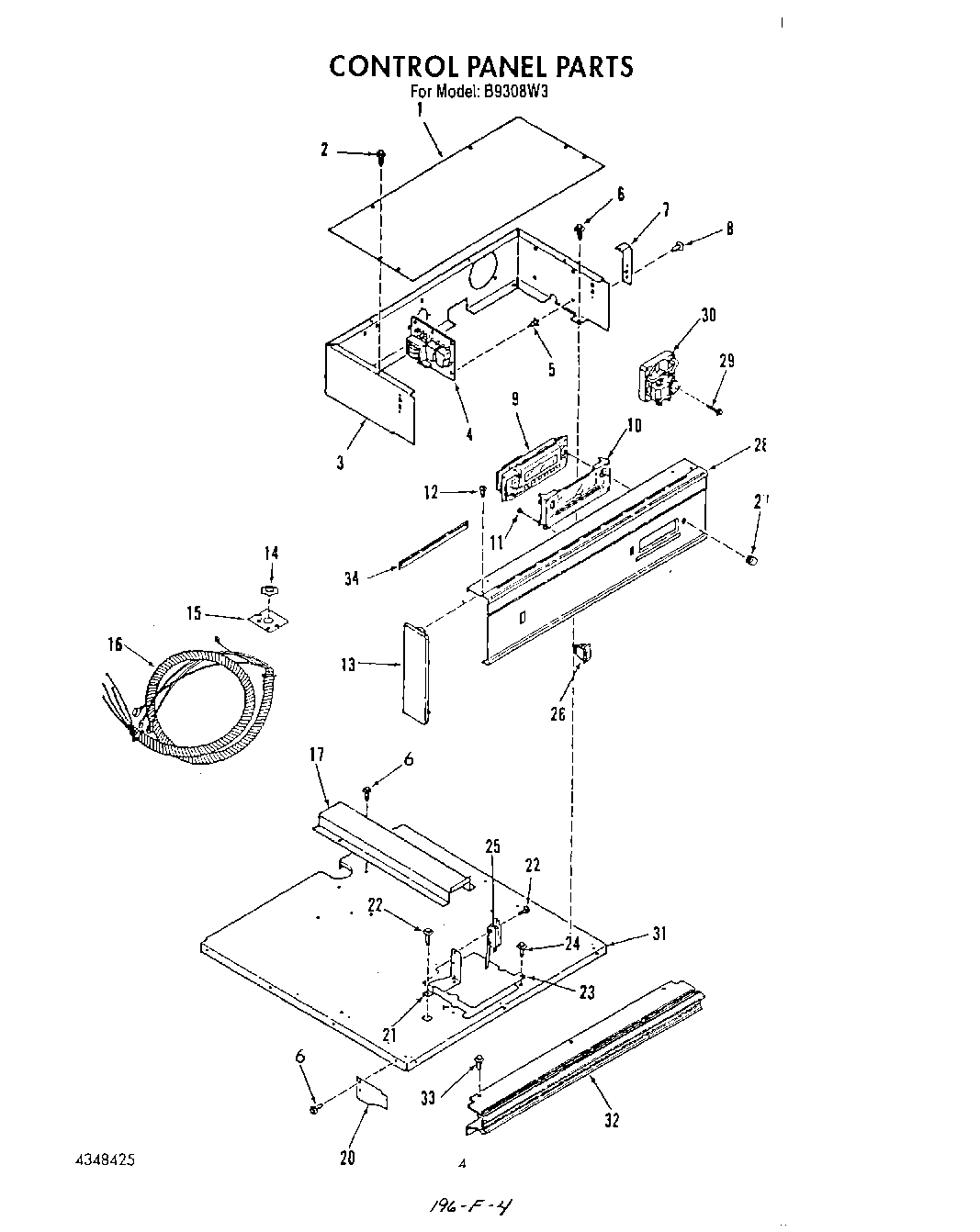

B9308B3 04 – CONTROL PANEL , LIT/OPTIONAL

Products

Position	Product
1	Cover
2	W10850756 Whirlpool Screw
3	Housing, Control
4	Circuit Board
5	Spacer
6	SCREW
7	Bracket
9	Control, Clock/Oven
10	Lens, Clock/Oven Control
11	Screw
12	Screw, No.10-32 x 1/2
12	Screw
13	End Cap (Left)
13	End Cap (Right-White)
13	End Cap (Left-White)
13	End Cap (Right)
14	Nut, Lock
15	Plate, Service
16	Harness-Conduit
17	Cover, Wire
20	Heat Shield, (Lt/Rt)
21	Bracket, Micro Switch
22	Screw No.6-32×7/8
23	Lock Cover Plate
25	Micro Switch, Lock
26	WP4314961 Whirlpool Lite Switch
26	Switch (White Model)
27	Knob, Clock
27	Knob, Clock (White Model)
28	Panel, Control
28	Control Panel (Mdl. B9308W3)
29	Screw No.10-32×1/4
30	Fan Assembly
31	Top, Cabinet
32	Trim-Control Panel (Mdl. B9308W3)
32	Trim, Control Panel
33	Screw (Mdl. B9308W3)
33	Screw, Trim
34	Clock Support
