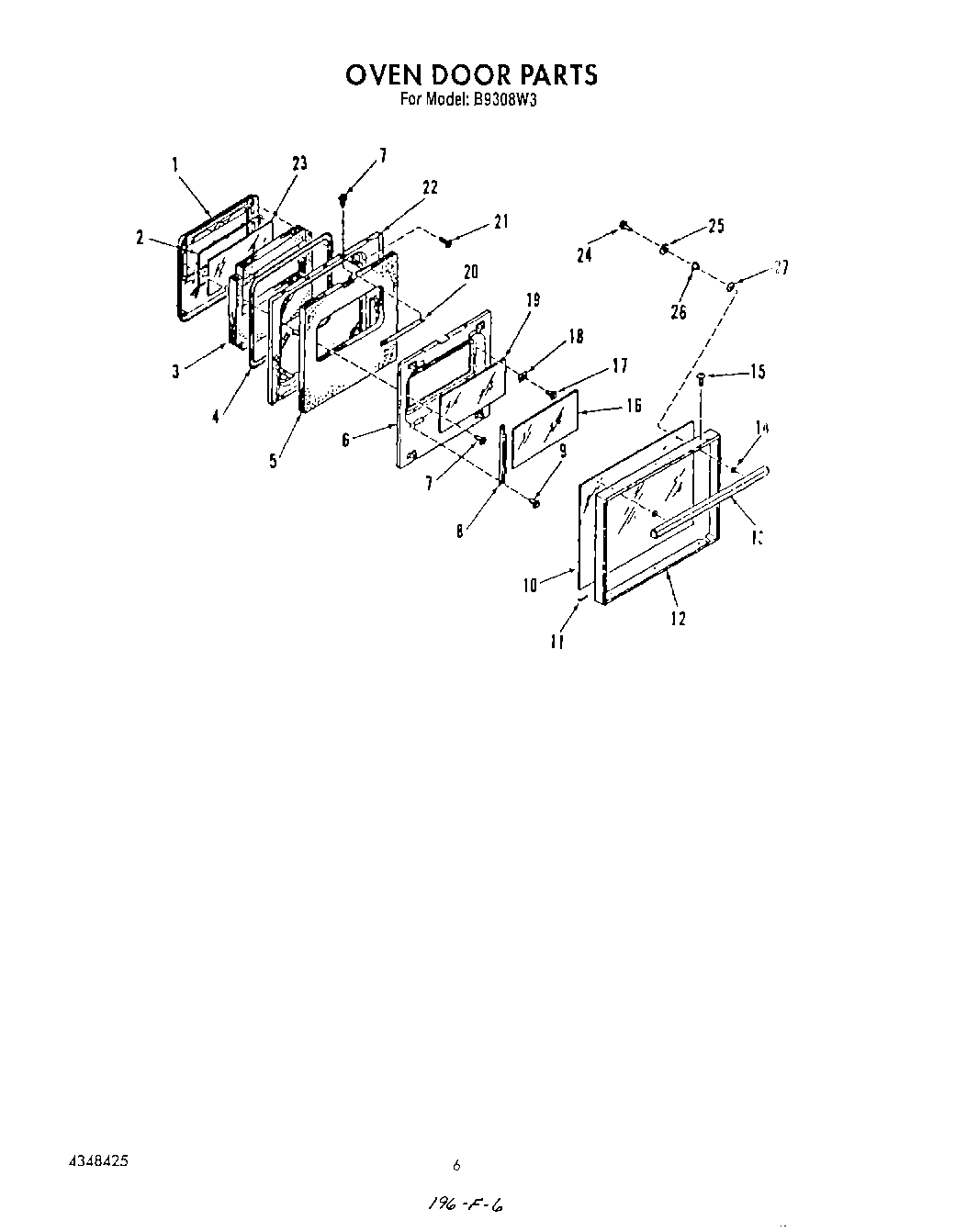

B9308B3 06 – OVEN DOOR

Products

Position	Product
1	Plug-Inner Lining
2	Seal, Inner Glass
3	Insulation
4	Gasket, Oven Door
5	Insulation
6	Retainer, Insulation
8	Retainer, Door Glass (Lt/Rt)
9	SCREW
10	Glass, Outer Door (Mdl. B9308W3)
10	Door Glass, Outer
11	Cushion
12	Door Frame (Mdl. B9308W3)
12	Door Frame
13	Handle, Door (Mdl. B9308W3)
13	Handle
14	Spacer, Dr. Handle
14	Spacer, White
15	Screw 6-20×3/8 (White Model)
15	Screw 6-20×3/8
16	Glass, Intermediate
17	Screw, No.10-32 x 17/32
18	Retainer, Glass
19	Glass, Inner
20	Stiffener, Lining
21	W10850756 Whirlpool Screw
22	Lining
23	Glass-Inner Door
24	WP999367 Whirlpool Refrigerator Screw
25	Washer, Fiber
26	Spacer, Glass Door
27	Washer
