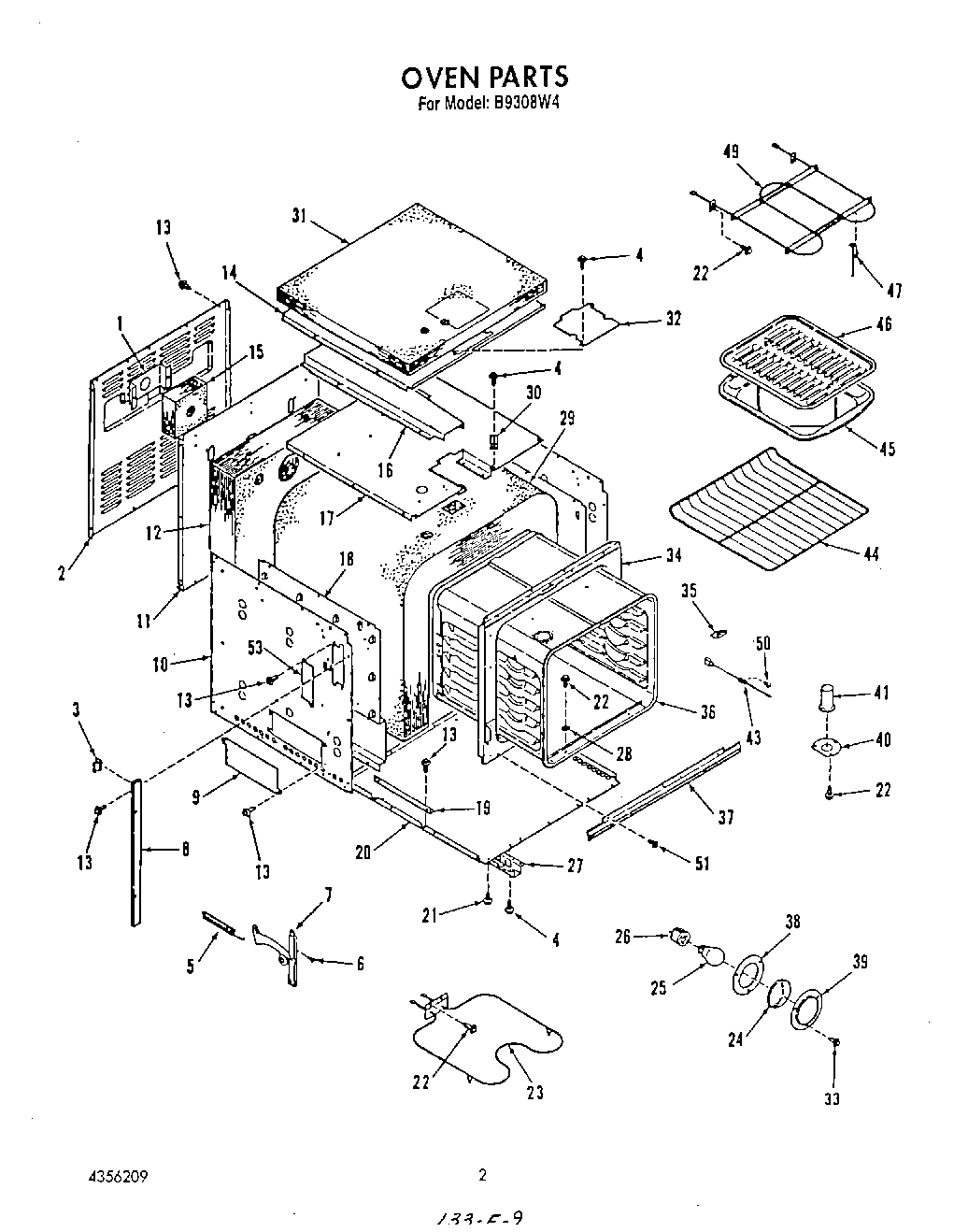

B9308B4 02 – OVEN

Products

Position	Product
1	Retainer, Oven Lamp Insulation
2	Back, Cabinet
3	Spacer (Mdl. B9308W3)
3	Spacer (6)
4	W10850756 Whirlpool Screw
5	Spring, Oven Door (Lt/Rt) (Lower Oven)
6	Screw
7	Hinge (Right (2))
7	Hinge (Left (2))
8	Side Trim (Lt/Rt) (Mdl. B9308W3)
8	Side Trim (Lt/Rt) (Mdl. B9308B3)
9	Cover Plate (4)
10	Cabinet Side (Lt/Rt)
11	Cover, Rear
12	WPL 4337724
14	Retainer, Cabinet Top Insulation
15	Insulation, Lamp (Upper/Lower)
16	Vent Box
17	Retainer, Oven Top Insulation
18	Retainer, Oven Side Insulation
19	Bracket, Retainer (Lt/Rt)
20	Bottom, Cabinet
21	Screw No.10-32×1/4
22	Screw, No.10-32 x 17/32
23	WPL 4335541
24	Lens, Oven Light
25	RANGE ONLY 40W 120V APPL BULB
26	W10856866 Whirlpool Light Socket
27	Channel, Bottom Cabinet (Lt/Rt)
28	Washer
29	Insulation-Top & Sides (1 Pc)
30	Bracket (2)
31	Insulation-Top
32	Lock Cover Plate
33	WP308685 Whirlpool Microwave Screw
34	Front Frame (Upper Oven)
35	Cover
36	Oven Body (Upper Oven)
37	Trim, Lower (Mdl. B9308W3)
37	Tr
38	Gasket, Lens
39	Retainer, Lens
40	WPL 4335624
41	Vent Tube
43	Sensor
44	WPL 4335557
46	4396923 Whirlpool Broil Pan Set Gray Porcelain
47	WPL 4334358
49	WPL 4335542
50	Screw
51	Trim Screw (Mdl. B9308W3)
51	Screw, Trim
53	WP285432 Whirlpool Terminal
53	Faston Terminal, (Thermal Fuse)
53	Wire Harness (Sensor)
53	WPL 4338202
53	Flag Terminal
53	Wire Harness (3/16“)
