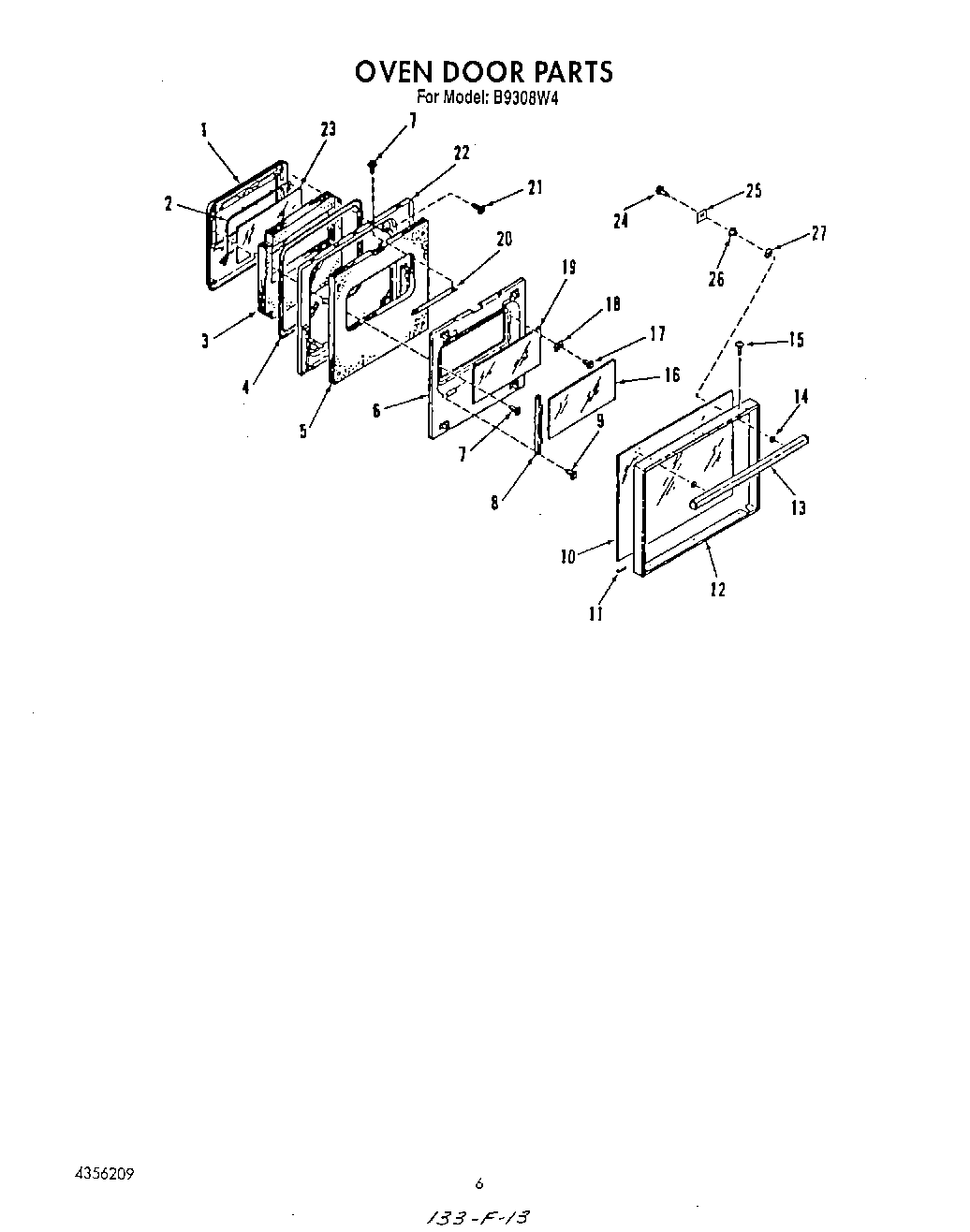

B9308B4 05 – OVEN DOOR

Products

Position	Product
1	Plug-Inner Lining
2	Seal, Inner Glass
3	Insulation
4	Gasket, Oven Door
5	Insulation
6	Retainer, Insulation
8	Retainer, Door Glass (Lt/Rt)
10	Door Glass, Outer
10	Glass, Outer Door (Mdl. B9308W3)
11	Cushion
12	Door Frame (Mdl. B9308W3)
12	Door Frame
13	Handle, Door (Mdl. B9308W3)
13	Handle
14	Spacer, White
14	Spacer, Dr. Handle
15	Screw 6-20×3/8
15	Screw 6-20×3/8 (White Model)
16	Glass, Intermediate
17	Screw, No.10-32 x 17/32
18	Retainer, Glass
19	Glass, Inner
20	Stiffener, Lining
21	W10850756 Whirlpool Screw
22	Lining
23	Glass-Inner Door
24	Screw, No.10-32 x 3/4
25	Retainer
26	Spacer, Glass Door
27	Washer, Fiber
