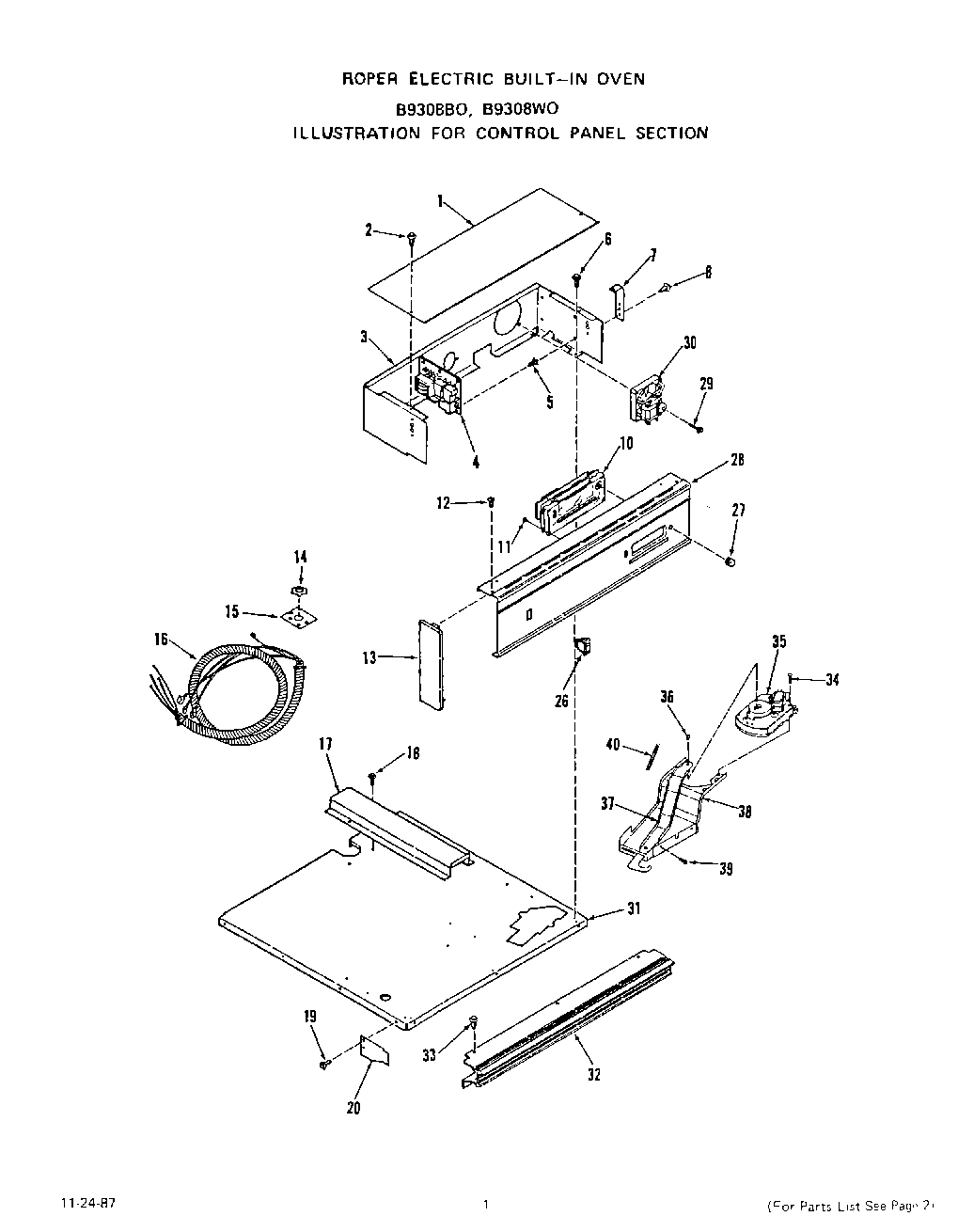

B9308W0 02 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T12:03:40+00:00B9308W0 02 – CONTROL PANEL, LIT/OPTIONAL ProductsPositionProduct1Top Cover-Housing2Screw 10 - 32 x 7/16``3Control Housing4D975705Spacer PCB7Bracket8WP112432 Whirlpool Nut Assembly10Clock/Oven Control w/Lens10xClock Lens11Screw 6-32x5/16``12Screw 10-16 (Model B9308WO)12Screw 10-16x1/2``13Left13Left (Model B9608WO)13Right (Model B9608WO)13Right14Nut (For Key 45)15Plate (For Key 45)16Harness Conduit Asm.17Wire Cover19Screw 10-16x7/16``20Heat Shield (Lt. or Rt.)26Switch-Oven Light26Model B9608WO27Clock Knob ((Model B9308WO))27Clock Knob28Control Panel (Model B9308WO)28Control Panel (Model B9308BO)29Screw 10 - 32 x 1/4``30Fan Asm31Cabinet Top32Trim Control Panel32Control Panel Trim (Model B9308WO)33Screw33Model B9608WO34WPL 23218335Lock Motor Asm36Screw 8 - 32 x 85037Lock Lever Asm38Door Lock Plate39Screw-10-32x1/2``40Lock Spring40xInstallation Guide40Owners Manual40Repair Parts List
