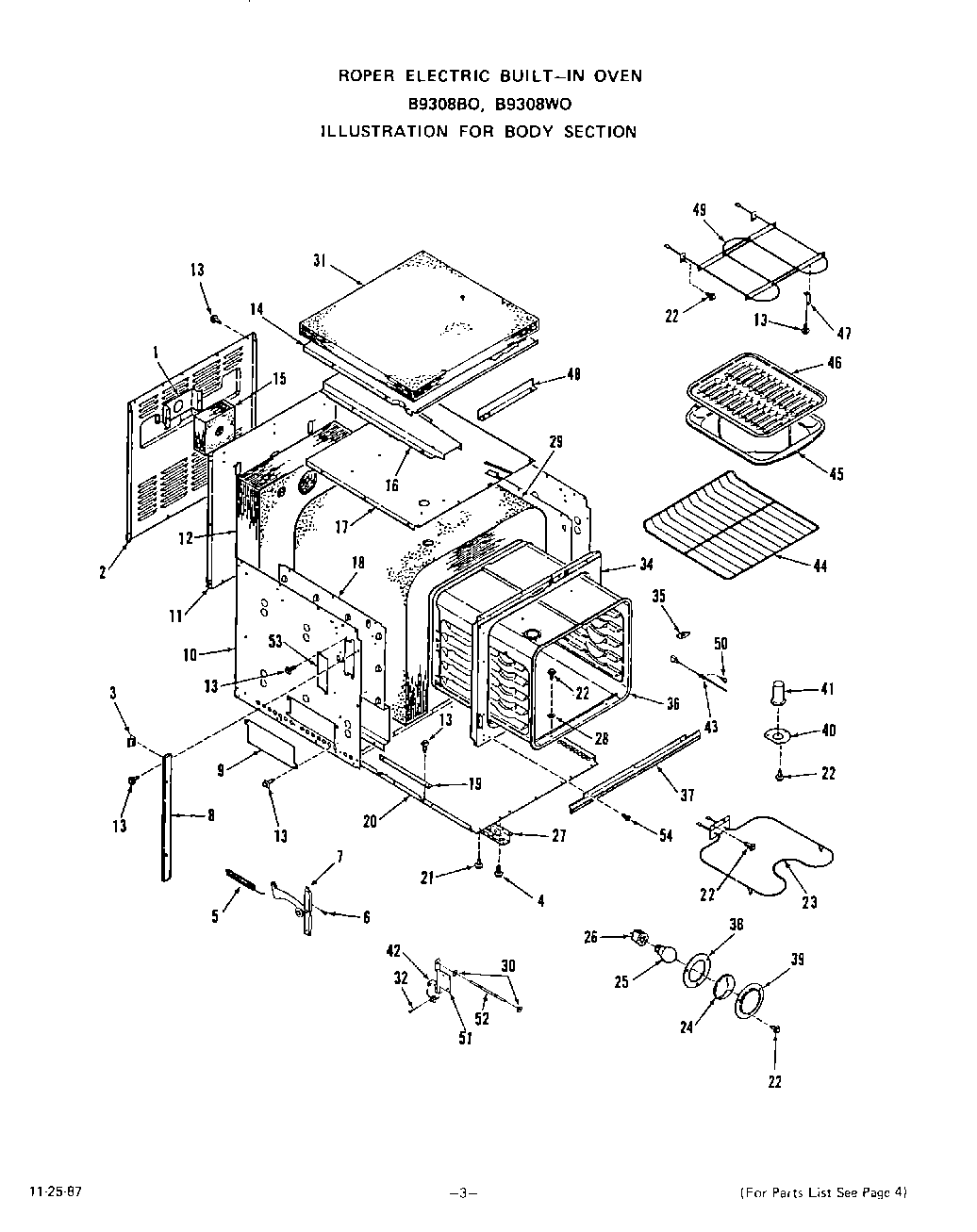

| 1 | Insulation Retainer-Oven Light |
| 2 | Cabinet Back |
| 3 | Spacer (B9308WO) |
| 3 | Spacer (4 Req) |
| 4 | WP112432 Whirlpool Nut Assembly |
| 5 | Spring-Oven Door (Lt. or Rt.) |
| 6 | Screw |
| 7 | Left (2 Req) |
| 7 | Right (2 Req) |
| 8 | Side Trim (Lt. or Rt.) (B9308WO) |
| 8 | Side Trim (Lt. or Rt.) (B9308BO) |
| 9 | Cover Plate |
| 10 | Cabinet Side-Lt. or Rt. |
| 11 | Main Back |
| 12 | WPL 336286 |
| 13 | Screw 10-16x7/16`` |
| 14 | Cabinet Top Insulation Retainer |
| 15 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 16 | Vent Box |
| 17 | Insulation Retainer-Oven Top |
| 18 | Oven Side Insulation Retainer (Lt. or Rt.) |
| 19 | Bracket-Insulation Retainer (Lt. or Rt.) |
| 20 | Cabinet Bottom |
| 21 | Screw 10 - 32 x 1/4`` |
| 22 | Screw 10 - 32 x 17/32`` |
| 23 | Bake Element |
| 24 | Lens-Oven Light |
| 25 | Oven Lamp Bulb |
| 26 | Holder-Oven Light Bulb |
| 27 | Bottom Cabinet Channel (Lt. or Rt.) |
| 28 | WPL 21067 |
| 29 | Insulation-Oven Top & Sides (1 Piece) |
| 30 | Front Frame |
| 31 | Insulation-Cabinet Top |
| 32 | Screw 4-40x11/16`` |
| 34 | Front Frame-Up. Oven |
| 35 | Cover |
| 36 | Upper Oven Body |
| 37 | Lower Trim (Model B9308WO) |
| 37 | WPL 336243 |
| 38 | Gasket-Lens |
| 39 | Retainer-Oven Light Lens |
| 40 | Oven Vent Clamp |
| 42 | WPL 337711 |
| 43 | Sensor |
| 44 | WP330190 Whirlpool Knob |
| 45 | WPL 331592 |
| 46 | WPL 326297 |
| 47 | Broiler Element Support |
| 48 | WPL 337922 |
| 49 | WPL 328115 |
| 50 | Screw |
| 51 | Insulator |
| 52 | WPL 337723 |
| 53 | WPL 337907 |
| 54 | Screw |
| 54 | Model B9608WO |
