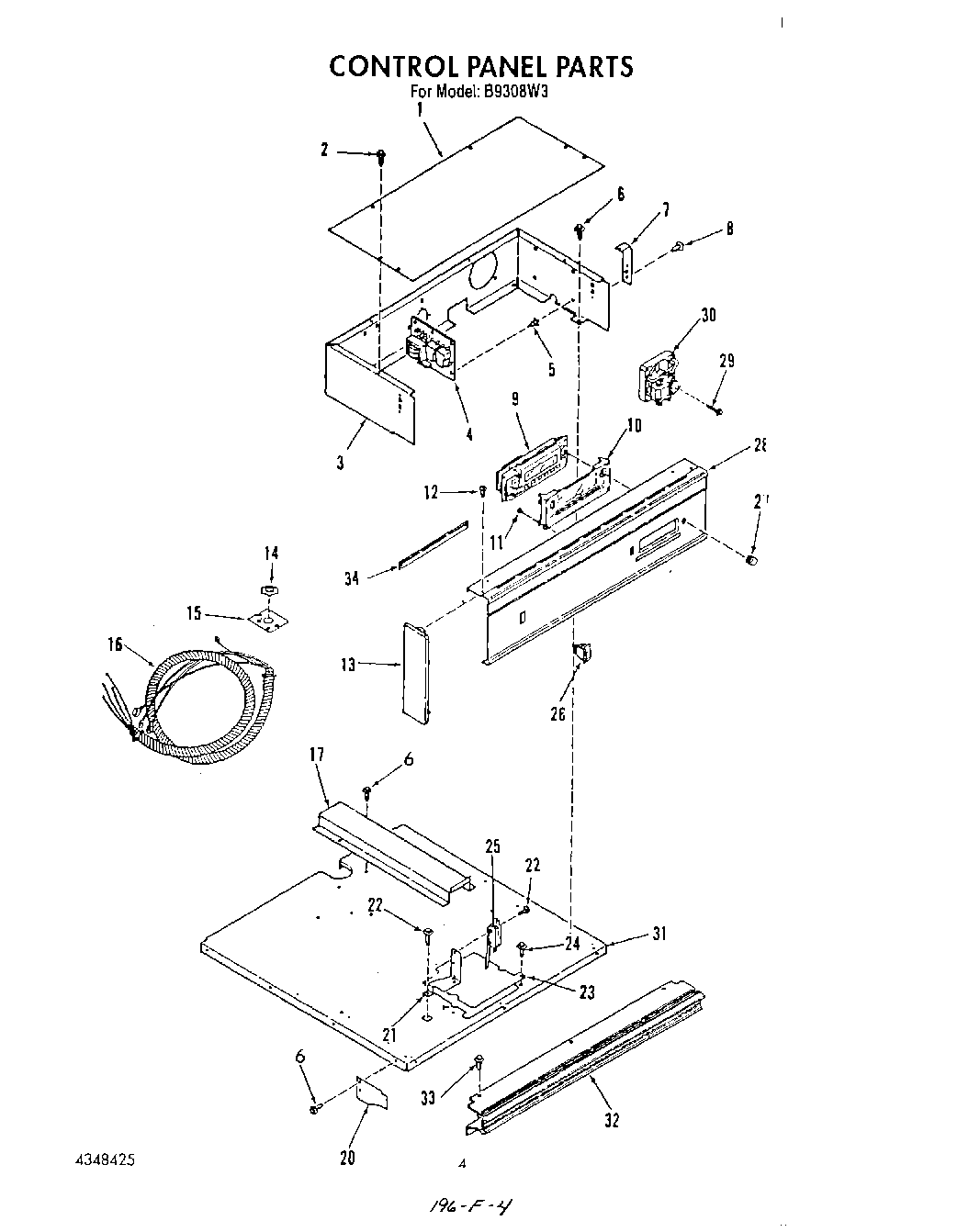

B9308W3 04 – CONTROL PANEL , LIT/OPTIONALadmin2025-04-26T12:03:48+00:00B9308W3 04 – CONTROL PANEL , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | Cover |
| 2 | W10850756 Whirlpool Screw |
| 3 | Housing, Control |
| 4 | Circuit Board |
| 5 | Spacer |
| 6 | SCREW |
| 7 | Bracket |
| 9 | Control, Clock/Oven |
| 10 | Lens, Clock/Oven Control |
| 11 | Screw |
| 12 | Screw, No.10-32 x 1/2 |
| 12 | Screw |
| 13 | End Cap (Left) |
| 13 | End Cap (Right-White) |
| 13 | End Cap (Left-White) |
| 13 | End Cap (Right) |
| 14 | Nut, Lock |
| 15 | Plate, Service |
| 16 | Harness-Conduit |
| 17 | Cover, Wire |
| 20 | Heat Shield, (Lt/Rt) |
| 21 | Bracket, Micro Switch |
| 22 | Screw No.6-32x7/8 |
| 23 | Lock Cover Plate |
| 25 | Micro Switch, Lock |
| 26 | WP4314961 Whirlpool Lite Switch |
| 26 | Switch (White Model) |
| 27 | Knob, Clock |
| 27 | Knob, Clock (White Model) |
| 28 | Panel, Control |
| 28 | Control Panel (Mdl. B9308W3) |
| 29 | Screw No.10-32x1/4 |
| 30 | Fan Assembly |
| 31 | Top, Cabinet |
| 32 | Trim-Control Panel (Mdl. B9308W3) |
| 32 | Trim, Control Panel |
| 33 | Screw (Mdl. B9308W3) |
| 33 | Screw, Trim |
| 34 | Clock Support |
