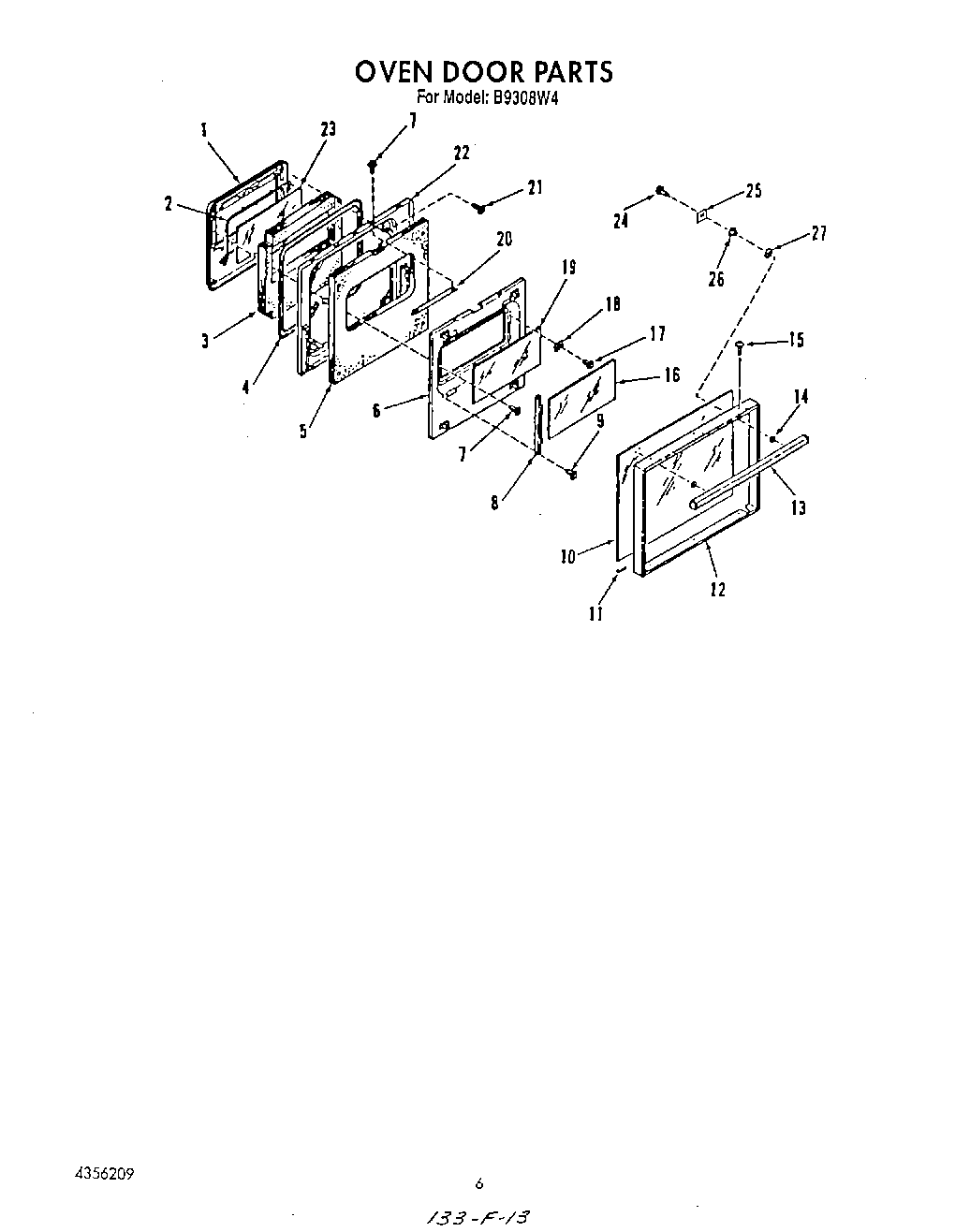

B9308W4 05 – OVEN DOOR

Products

PositionProduct
1Plug-Inner Lining
2Seal, Inner Glass
3Insulation
4Gasket, Oven Door
5Insulation
6Retainer, Insulation
8Retainer, Door Glass (Lt/Rt)
10Door Glass, Outer
10Glass, Outer Door (Mdl. B9308W3)
11Cushion
12Door Frame (Mdl. B9308W3)
12Door Frame
13Handle, Door (Mdl. B9308W3)
13Handle
14Spacer, White
14Spacer, Dr. Handle
15Screw 6-20×3/8
15Screw 6-20×3/8 (White Model)
16Glass, Intermediate
17Screw, No.10-32 x 17/32
18Retainer, Glass
19Glass, Inner
20Stiffener, Lining
21W10850756 Whirlpool Screw
22Lining
23Glass-Inner Door
24Screw, No.10-32 x 3/4
25Retainer
26Spacer, Glass Door
27Washer, Fiber
