B9457^0 02 – CONTROL PANEL – Aparts

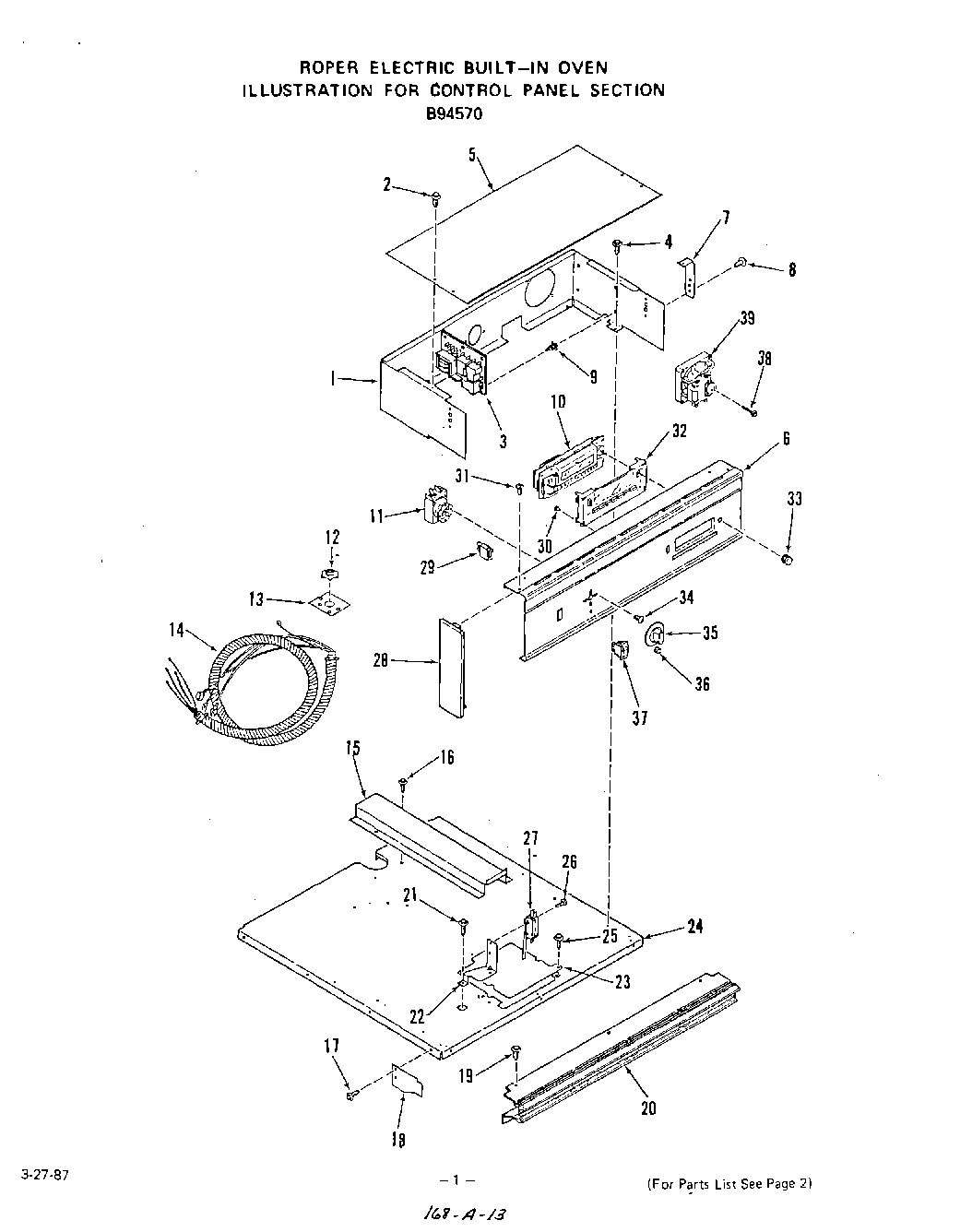

B9457^0 02 – CONTROL PANEL

Products

Position	Product
3	Circuit Board w/Relay
5	Top Cover-Housing
6	Panel Control
7	Bracket
8	WP112432 Whirlpool Nut Assembly
9	Spacer PCB
10	Clock/Oven Control
11	Lower Oven Thermostat
12	Nut (For Key 45)
13	Plate (For Key 45)
14	Harness Conduit Asm.
15	Wire Cover
16	Screw 10 - 32 x 7/16``
18	Heat Shield (Lt. or Rt.)
20	Trim Control Panel
21	Screw 10-16x7/16``
22	Bracket-Micro Switch
23	Cover Plate Lock
24	Cabinet Top
25	WPL 295850
26	Screw 6-32x7/8``
27	Micro Switch-Lock
28	End Cap
28	Left
28	Right
29	Light-Indicator (Surface)
30	Screw 6-32x5/16``
31	Screw 10-32x1/2``
32	Clock Lens Asm
33	Clock Knob
34	WPL 78565
35	Thermostat Knob
36	Lens-Indicator Light
37	Switch-Oven Light
38	Screw 10-32x1``
39	Fan
