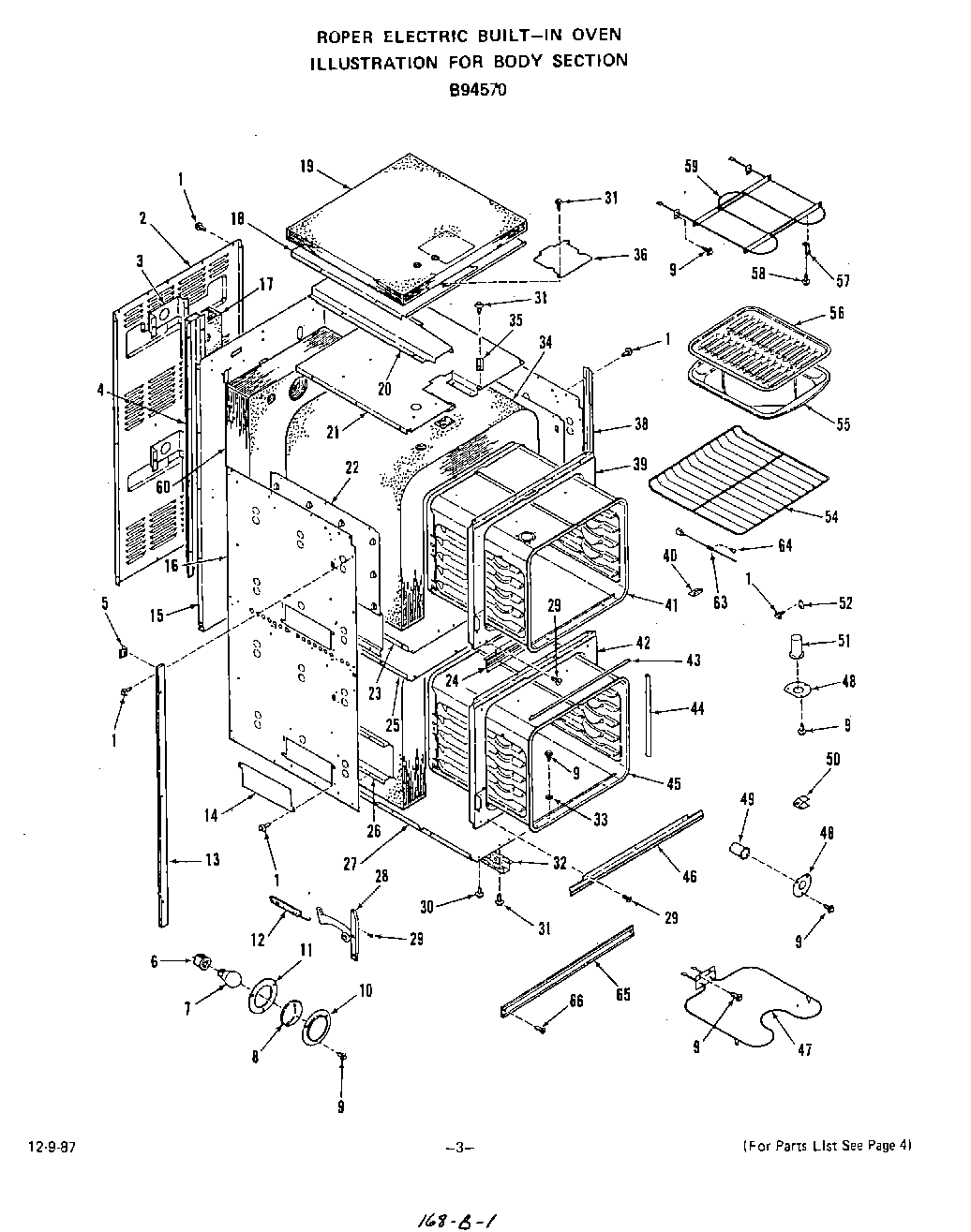

| 1 | Screw 10-16x7/16`` |
| 2 | Cabinet Back |
| 3 | Insulation Retainer-Oven Light |
| 4 | Rear Oven Vent Box |
| 5 | Spacer (4 Req) |
| 6 | Holder-Oven Light Bulb |
| 7 | Oven Lamp Bulb |
| 8 | Lens-Oven Light |
| 9 | Screw 10 - 32 x 17/32`` |
| 10 | Retainer-Oven Light Lens |
| 11 | Gasket-Lens |
| 12 | Spring-Oven Door (4Req.) |
| 12 | Spring-Oven Door (Lt. or Rt.) |
| 12 | Spring-Oven Door (Lt. or Rt.) |
| 13 | Side Trim (Lt. or Rt.) |
| 14 | Cover Plate |
| 15 | Main Back |
| 16 | Cabinet Side-Lt. or Rt. |
| 17 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 18 | Insulation Retainer-Cabinet Top |
| 19 | Insulation-Cabinet Top |
| 20 | Vent Box |
| 21 | Insulation Retainer-Oven Top |
| 22 | Insulation Retainer-Oven Side (Lt. or Rt.) |
| 23 | Bottom Insulation Retainer (Up. Oven) |
| 24 | Center Front Trim |
| 25 | Insulation Retainer |
| 26 | Door Spring Insulation Retainer (Lt. or Rt.) |
| 27 | Cabinet Bottom |
| 28 | Right |
| 28 | Left |
| 28 | Hinge |
| 29 | Screw 10-32 x 5/8`` |
| 30 | Screw 10 - 32 x 1/4`` |
| 31 | WP112432 Whirlpool Nut Assembly |
| 32 | Bottom Channel-Lt. or Rt. |
| 33 | Washer |
| 34 | Insulation-Oven Top & Sides (1 Piece) |
| 35 | Bracket |
| 36 | Cover Plat |
| 38 | WPL 325532 |
| 39 | Front Frame-Up. Oven |
| 40 | Cover |
| 41 | Upper Oven Body |
| 42 | WPL 331663 |
| 43 | WPL 328809 |
| 44 | WPL 329204 |
| 45 | WPL 331647 |
| 46 | WPL 336243 |
| 47 | Bake Element |
| 48 | Oven Vent Clamp |
| 49 | WPL 294679 |
| 50 | WPL 291123 |
| 52 | Cover Plate-Thermostat Bulb |
| 53 | Clip-Thermostat Bulb (2 Req) |
| 54 | WP330190 Whirlpool Knob |
| 55 | WPL 331592 |
| 56 | WPL 326297 |
| 57 | Broiler Element Support |
| 58 | Screw 10ABx3/8`` |
| 59 | WPL 328115 |
| 60 | Insulation-Oven Back & Bottom (1 Piece) |
| 63 | Sensor |
| 64 | Screw |
| 65 | WPL 338119 |
| 66 | WPL 336297 |
