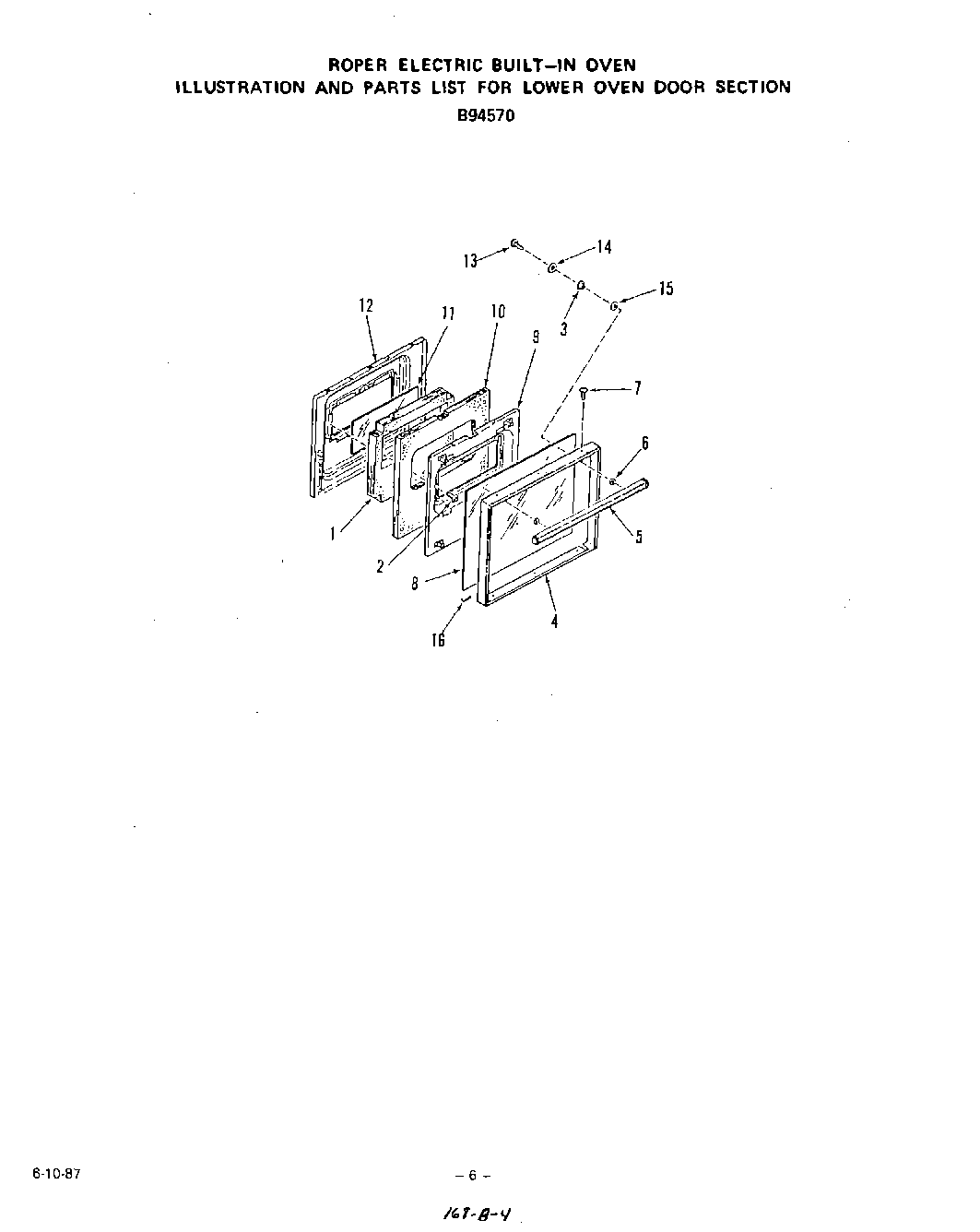

B9457^0 06 – LOWER OVEN DOOR

Products

Position	Product
1	Insulation-Oven Door Plug
2	WP112432 Whirlpool Nut Assembly
3	Spacer-Glass
4	Frame-Oven Door
5	Handle-Oven Door
6	Spacer
7	Screw 6-20x3/8``
8	Oven Door Glass-Outer
9	Retainer-Oven Door Insulation
10	Insulation-Oven Door Lining
11	Oven Door Glass-Center
12	2065B1A Models
13	Screw 10-32x3/4``
14	Washer
15	Washer
16	Wire Harness (Sensor)
16	Main
16	Limiter
16	Wire Harness
16	Cushion-Door Glass
16	Relay
