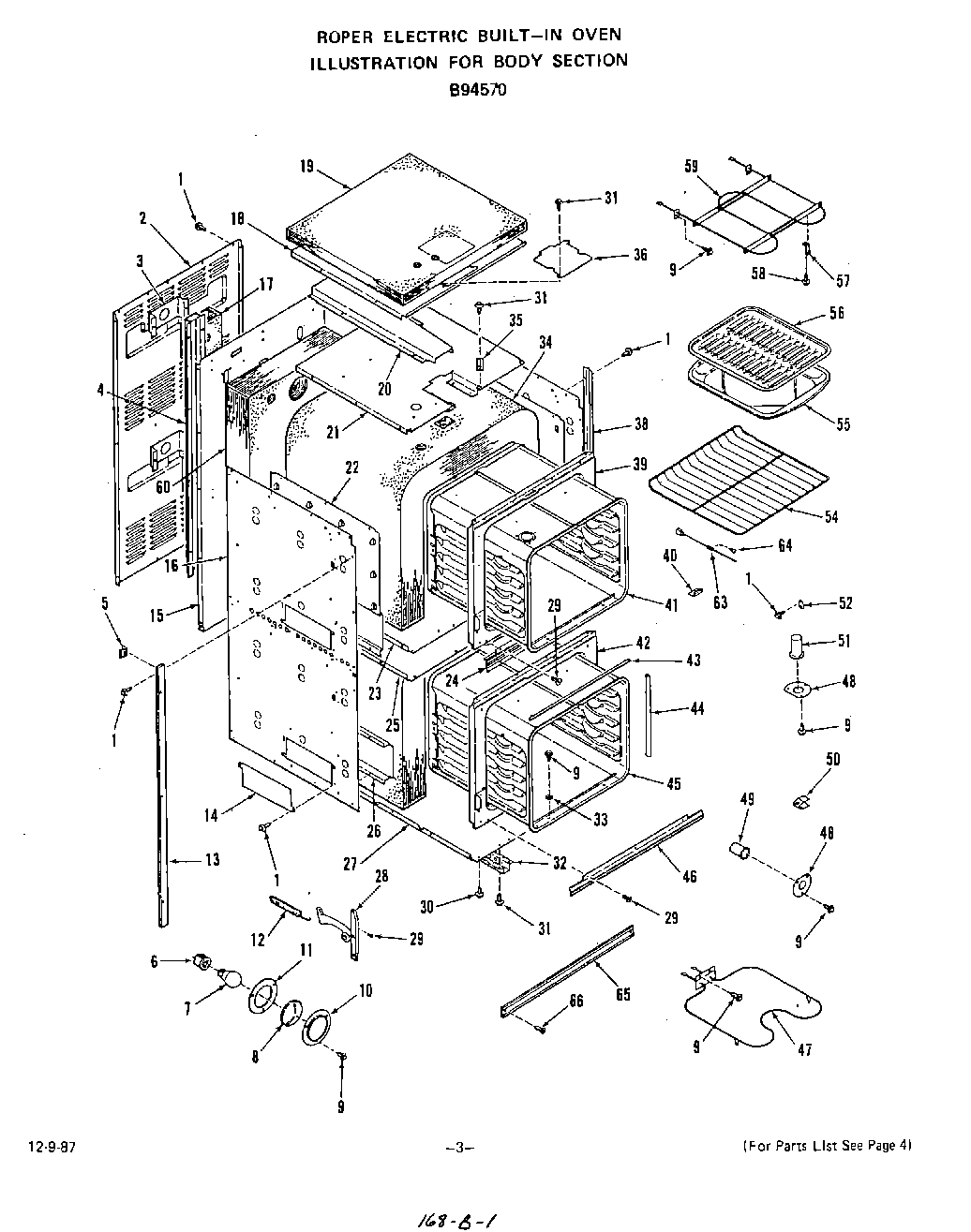

B9457X0 04 – BODY

Products

Position	Product
1	Screw 10-16×7/16“
2	Cabinet Back
3	Insulation Retainer-Oven Light
4	Rear Oven Vent Box
5	Spacer (4 Req)
6	Holder-Oven Light Bulb
7	Oven Lamp Bulb
8	Lens-Oven Light
9	Screw 10 – 32 x 17/32“
10	Retainer-Oven Light Lens
11	Gasket-Lens
12	Spring-Oven Door (Lt. or Rt.)
12	Spring-Oven Door (4Req.)
12	Spring-Oven Door (Lt. or Rt.)
13	Side Trim (Lt. or Rt.)
14	Cover Plate
15	Main Back
16	Cabinet Side-Lt. or Rt.
17	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
18	Insulation Retainer-Cabinet Top
19	Insulation-Cabinet Top
20	Vent Box
21	Insulation Retainer-Oven Top
22	Insulation Retainer-Oven Side (Lt. or Rt.)
23	Bottom Insulation Retainer (Up. Oven)
24	Center Front Trim
25	Insulation Retainer
26	Door Spring Insulation Retainer (Lt. or Rt.)
27	Cabinet Bottom
28	Right
28	Left
28	Hinge
29	Screw 10-32 x 5/8“
30	Screw 10 – 32 x 1/4“
31	WP112432 Whirlpool Nut Assembly
32	Bottom Channel-Lt. or Rt.
33	Washer
34	Insulation-Oven Top & Sides (1 Piece)
35	Bracket
36	Cover Plat
38	WPL 325532
39	Front Frame-Up. Oven
40	Cover
41	Upper Oven Body
42	WPL 331663
43	WPL 328809
44	WPL 329204
45	WPL 331647
46	WPL 336243
47	Bake Element
48	Oven Vent Clamp
49	WPL 294679
50	WPL 291123
52	Cover Plate-Thermostat Bulb
53	Clip-Thermostat Bulb (2 Req)
54	WP330190 Whirlpool Knob
55	WPL 331592
56	WPL 326297
57	Broiler Element Support
58	Screw 10ABx3/8“
59	WPL 328115
60	Insulation-Oven Back & Bottom (1 Piece)
63	Sensor
64	Screw
65	WPL 338119
66	WPL 336297
