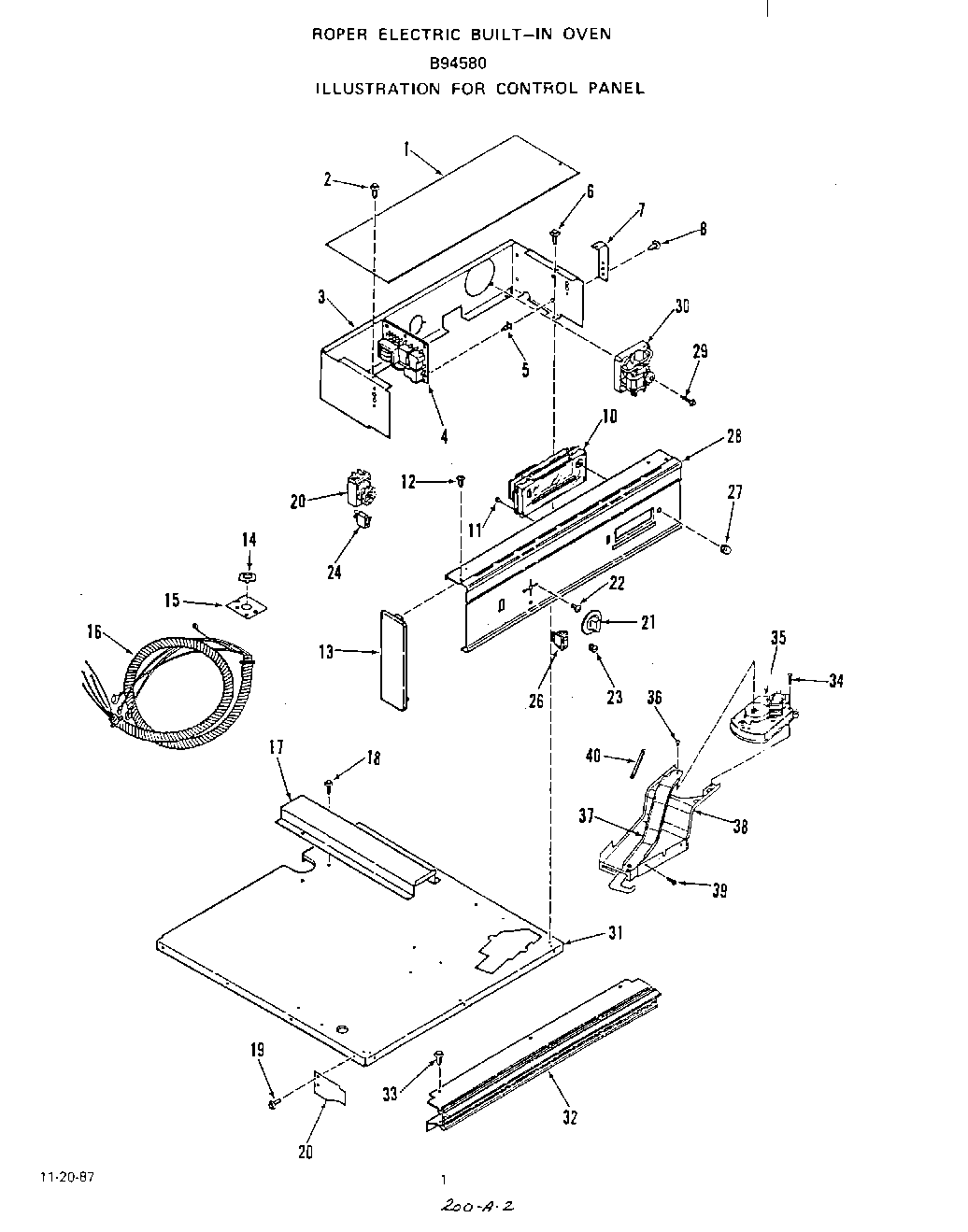

B9458B0 02 – CONTROL PANEL , LIT/OPTIONAL

B9458B0 02 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

B9458B0 02 – CONTROL PANEL , LIT/OPTIONAL

Products

PositionProduct
xClock Lens
1Top Cover-Housing
3Control Housing
4D97570
5Spacer PCB
7Bracket
8WP112432 Whirlpool Nut Assembly
10Clock/Oven Control w/Lens
11Screw 6-32×5/16“
12Screw 10-16×1/2“
13Left
13Right
13End Cap
14Nut (For Key 45)
15Plate (For Key 45)
16Harness Conduit Asm.
17Wire Cover
20Lower Oven Thermostat
21Thermostat Knob
22WPL 78565
23Lens-Indicator Light
24Light-Indicator (Surface)
25Heat Shield (Lt. or Rt.)
26Switch-Oven Light
27Clock Knob
28Panel Control
29Screw 10 – 32 x 1/4“
30Fan Asm
31Cabinet Top
32Trim Control Panel
33Screw 10-16×7/16“
34Screw 8 – 32 x 850
35Lock Motor Asm
36WPL 232183
37Lock Lever Asm
38Door Lock Plate
39Screw-10-32×1/2“
40Lock Spring
