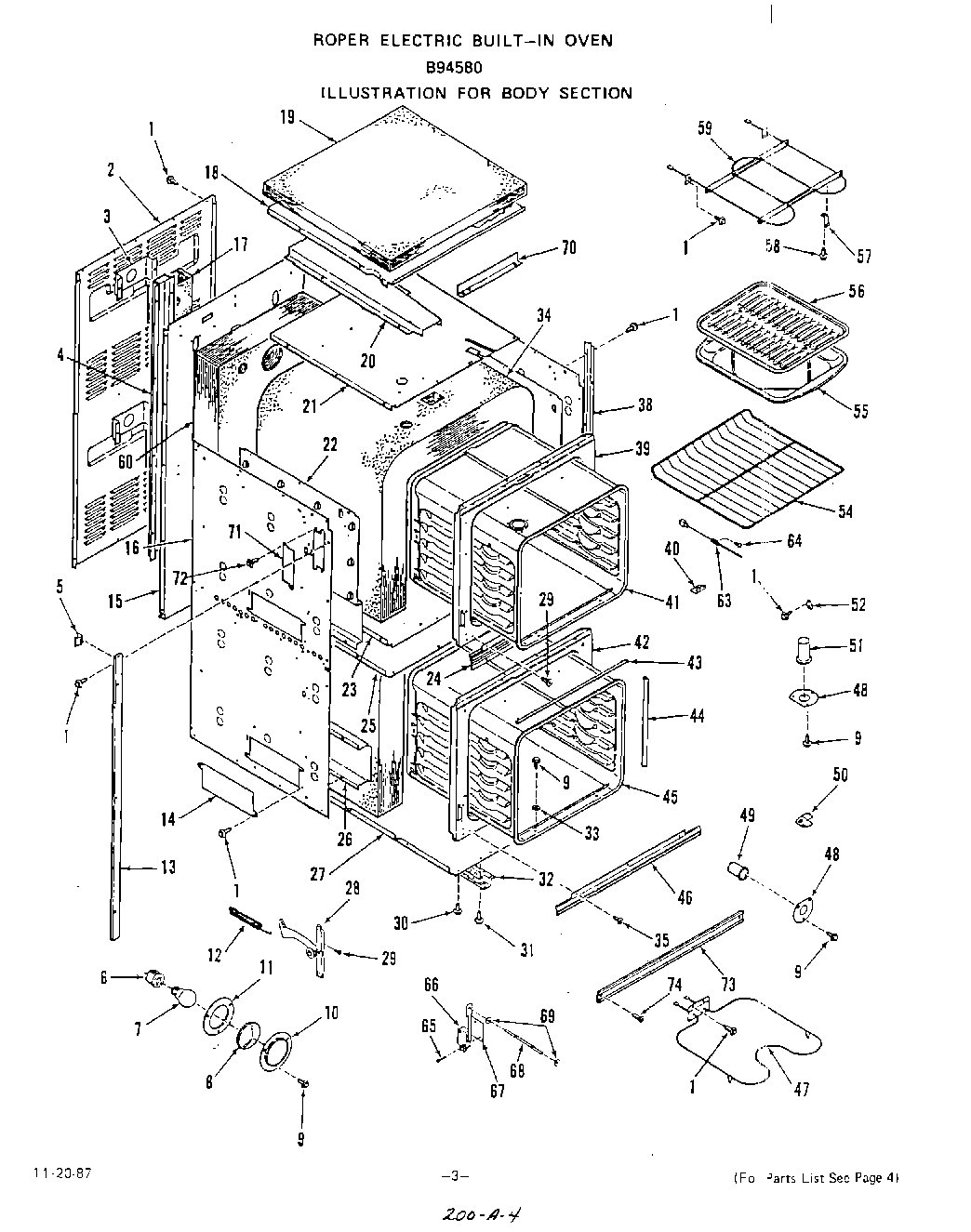

B9458B0 04 – BODY

Products

PositionProduct
2Cabinet Back
3Insulation Retainer-Oven Light
4Rear Oven Vent Box
5Spacer (4 Req)
6Holder-Oven Light Bulb
7Oven Lamp Bulb
8Lens-Oven Light
9Screw 10ABx1/2“
10Retainer-Oven Light Lens
11Gasket-Lens
12Spring-Oven Door (Lt. or Rt.)
12Oven Door Spring (Lt. or Rt.)
12Spring-Oven Door (4Req.)
13Side Trim (Lt. or Rt.)
14Cover Plate
15Main Back
16Cabinet Side-Lt. or Rt.
17WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
18Cabinet Top Insulation Retainer
19Insulation-Cabinet Top
20Vent Box
21Insulation Retainer-Oven Top
22Oven Side Insulation Retainer (Lt. or Rt.)
23Bottom Insulation Retainer (Up. Oven)
24Center Front Trim
25Insulation Retainer
26Door Spring Insulation Retainer (Lt. or Rt.)
27Cabinet Bottom
28Right (2 Req)
28Left (2 Req)
28Hinge
30Screw 10 – 32 x 1/4“
31WP112432 Whirlpool Nut Assembly
32Bottom Cabinet Channel (Lt. or Rt.)
33Washer
34Insulation-Oven Top & Sides (1 Piece)
35Screw
38WPL 323665
39Front Frame-Up. Oven
40Cover
41Upper Oven Body
42Front Frame-Lo. Oven
43WPL 328809
44WPL 329204
45WPL 331647
46WPL 336243
47Bake Element
48Oven Vent Clamp
49Vent Tube-Upper Oven
50WPL 291123
52Cover Plate-Thermostat Bulb
54WP330190 Whirlpool Knob
55WPL 331592
56WPL 326297
57Broiler Element Support
59WPL 328115
60WPL 336286
63Sensor
64Screw
65Screw 4-40×11/16“
66WPL 337711
67Insulator
68WPL 337723
69WPL 335039
70WPL 337922
71WPL 337907
72Screw 10-16×7/16“
73WPL 338119
74WPL 336297
