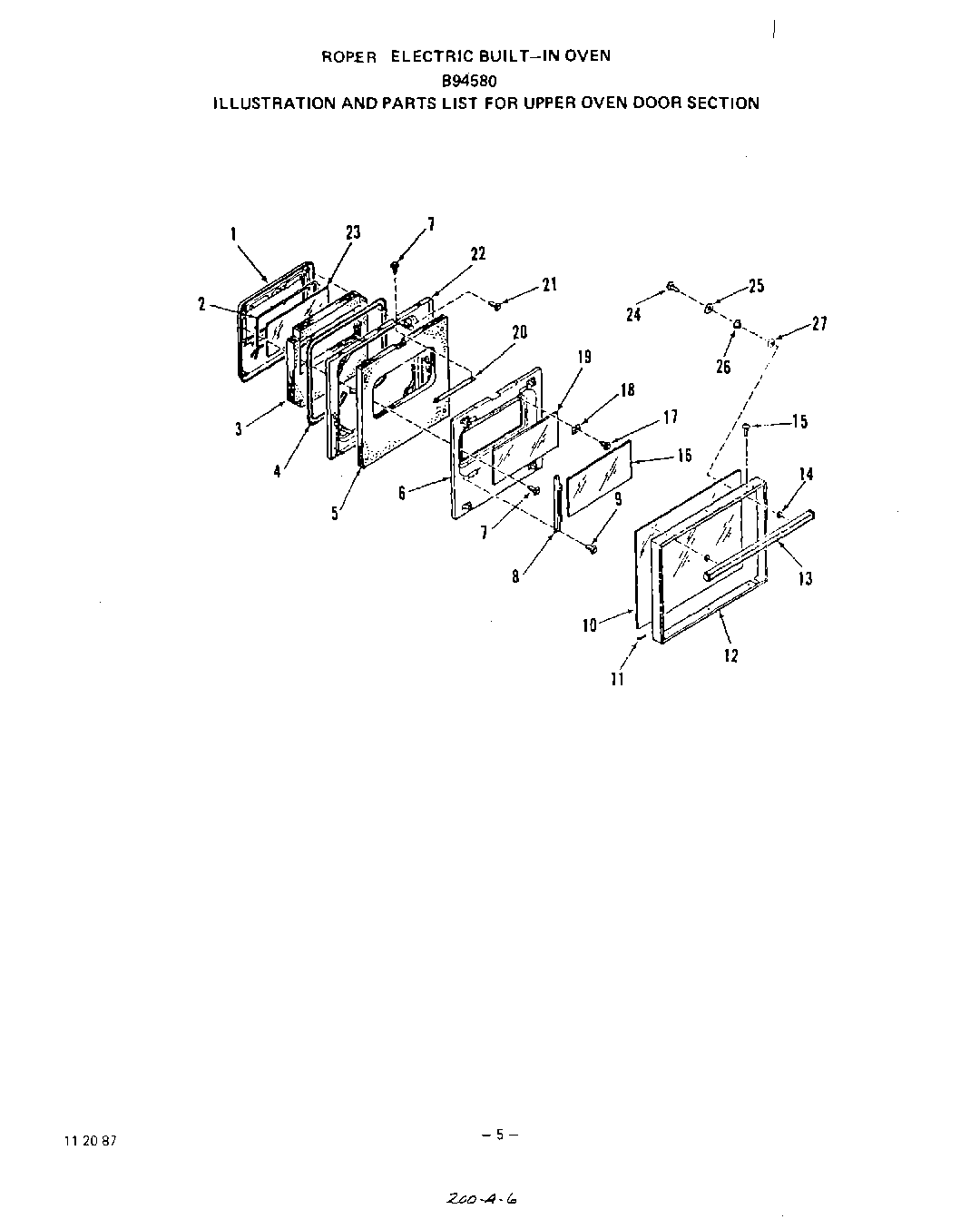

B9458B0 05 – UPPER OVEN DOOR

Products

Position	Product
1	Plug-Oven Door Lining
2	Seal-Inner Glass
3	Insulation-Oven Door Plug
4	Gasket-Oven Door
5	Insulation-Oven Door Lining
6	Retainer-Oven Door Insulation
7	WP112432 Whirlpool Nut Assembly
8	Retainer-Oven Door Glass (Lt. or Rt.)
9	Screw 10-16×7/16“
10	Oven Door Glass-Outer
11	Cushion-Door Glass
12	Frame-Oven Door
13	Handle-Oven Door
14	Spacer
15	Screw 6-20×3/8“
16	Oven Door Glass-Intermediate
17	Screw 10-32×17/32“
18	Retainer-Door Glass
19	Oven Door Glass-Center
20	Stiffener-Oven Door Lining
21	Screw 10 – 32 x 7/16“
22	Lining-Oven Door
23	Oven Door Glass-Inner
24	Screw 10-32×3/4“
25	Washer
26	Spacer-Glass
27	Washer
