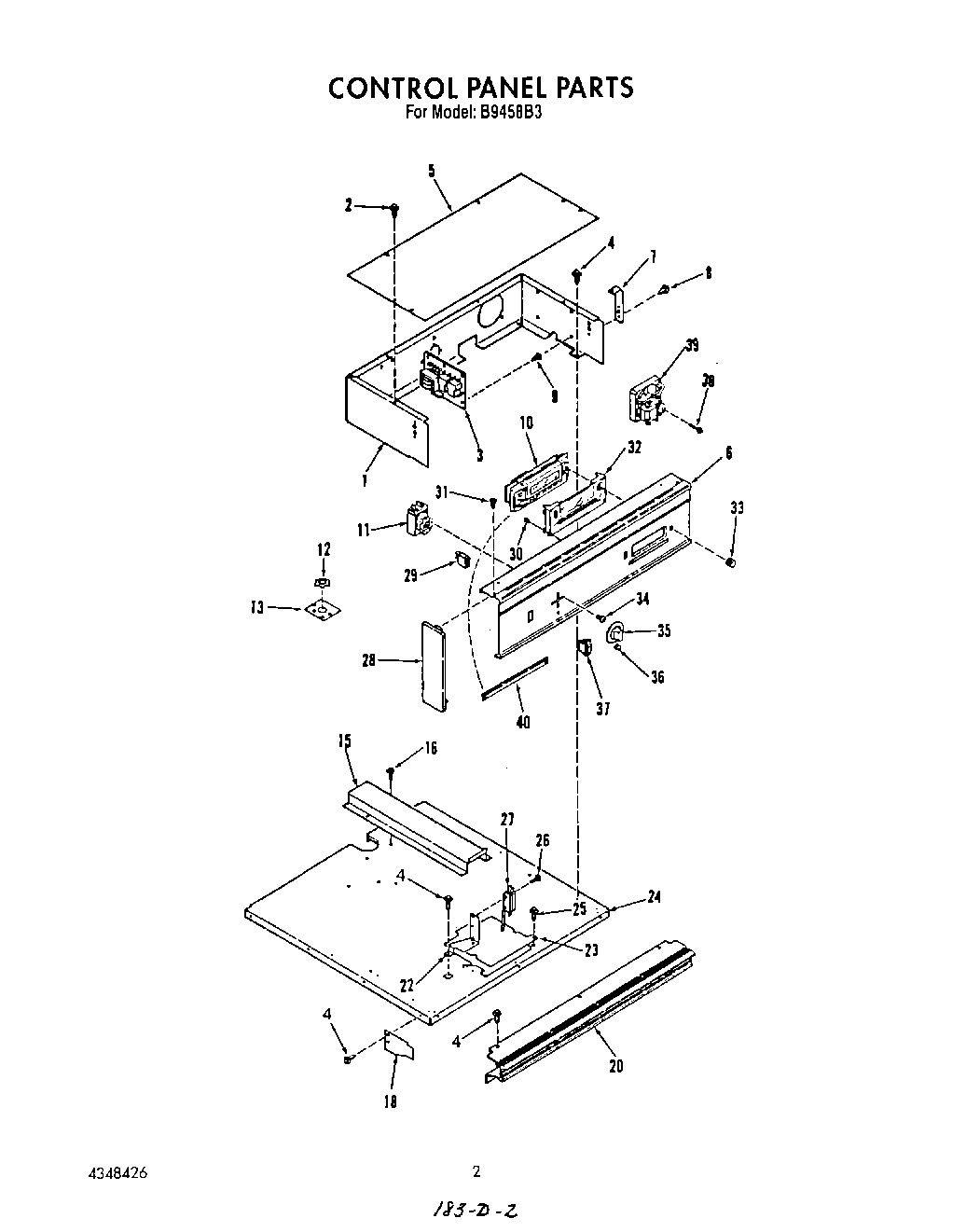

B9458B3 02 – CONTROL PANELadmin2025-04-26T12:04:58+00:00B9458B3 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Control Housing |
| 3 | Relay, Circuit Board |
| 4 | SCREW |
| 5 | Cover |
| 6 | Control Panel |
| 7 | Bracket |
| 9 | Spacer |
| 10 | Control, Clock/Oven |
| 11 | Thermostat |
| 12 | Nut, Lock |
| 13 | Plate, Service |
| 15 | Cover, Wire |
| 16 | W10850756 Whirlpool Screw |
| 18 | Heat Shield, (Lt/Rt) |
| 20 | Trim, Control Panel |
| 22 | Bracket, Micro Switch |
| 23 | Lock Cover Plate |
| 24 | Top, Cabinet |
| 26 | Screw No.6-32x7/8 |
| 27 | Micro Switch, Lock |
| 28 | End Cap (Right) |
| 28 | End Cap (Left) |
| 29 | Indicator Light (Oven Unit) |
| 30 | Screw |
| 31 | Screw, No.10-32 x 1/2 |
| 32 | Lens, Clock/Oven Control |
| 33 | Knob, Clock |
| 34 | Screw |
| 35 | Knob, Thermostat |
| 36 | WP9750343 Whirlpool Light Lens |
| 37 | WP4314961 Whirlpool Lite Switch |
| 38 | Screw No.10-32x1/4 |
| 39 | Fan Assembly |
| 40 | Clock Support |
